Place of Origin: | China |
---|---|
Brand Name: | Shunda |
Certification: | CE |
Model Number: | STD-80 |
Minimum Order Quantity: | 1 set paper tube machine |
Price: | Negotiable |
Packaging Details: | Seaworthy and suitable for bumpy roads. Strong wooden box and firm plate |
Delivery Time: | within 30 working days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 10 sets per Month |
Max Cup Diameter: | 90mm | Max Cup Height: | 220mm |
---|---|---|---|
Speed: | 70-80pcs/min | Raw Material: | 135-450gsm |
Configuration: | ULTRASONIC & HOT AIR SYSTEM | Output: | 12KW,380V/220V,60HZ/50HZ |
Air Compressor: | 0.4 M³/Min 0.5MPA | Net Weight: | 3.4 TONS |
Machine Dimension: | 2500 ×1800 ×1700 MM | Dimension Of Cup Collector: | 900 ×900 ×1760 MM |
Highlight: | round box making machine,tea cup manufacturing machine |

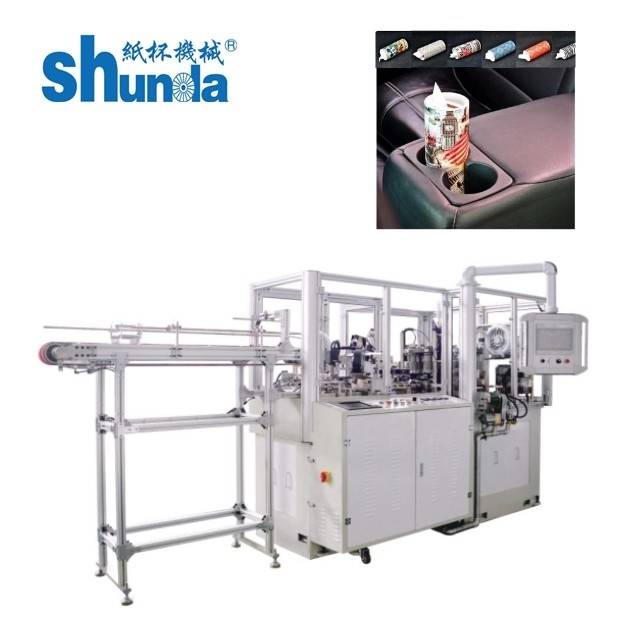

Fully Automatic Paper Tube Forming Machine Making Straight Wall Tube Using Raw Material 135-450 Gram Speed 80pcs/Min
Specification
MODEL | STD-80 |
Speed | 70-80 PCS/MIN |
Cup size Range | Max Dia:90mm, Max Height:220mm |
Paper request Gram | 135-450GSM |
Heating system | Hot air system (from Switzerland) |
Output | 380V/220V 12 KW,50/60HZ, Three Phase four wire |
Air compressor | 0.4 M³/Min |
Net weight | 3.4 TONS |
Machinery Size | 2500 ×1800 ×1700 MM |
Advantage:
1.It has 2 sets of original imported hot air system Leister guarantee the stability of heating.
2.Ultrasonic seal the paper cup body,can produce both single and double PE coated paper.
3.Panasonic photoelectricity checking the every part and report.
4.Open cylindrical can divide locating,heigh precision.
5.Automatically Oil lubrication system .
6.Servo motor control the gap of the bottom-paper within 0.1mm.
Finished Products Show:
About us
Haining Chengda Machinery Co.,LTd always abides by the business strategy of "high-quality products & reasonable price", the service concept of "showing respect to you & trying my best", and the professional spirit of ’’honesty, innovation, enthusiasm, sureness" to provide customers the best products and services. Make paper cup machine since 1998, ship to more than 100 countries.
We have developed matured and specialized in machine types as below,
--Middle speed paper bowl machine SMD-80B 70-80 pcs/min
--Middle speed double wall paper cup machine SHUNDA-80A 80-100 pcs/min
--High speed paper cup machine SMD-90 100-120 pcs/min
Trade Show
In Algeria,the most popular cup size 7oz and 3 oz are designed by us.There we have almost 80% market.Large paper cup company ATP,MTP,GSTP,ITP... all are our clients.Our ZBJ-9A is very famous in Algeria.We also have client in USA,Mexico,Brazil,Finland,libya,Iraq,Australia etc.
FAQ
1. Q: Is your company a factory or trading company?
A: Our company is a factory.
2. Q:Where is your factory located? How can I visit there?
A:Our factory is located in haining City, Zhejiang Province, China, about 1.5 hours by car from Shanghai. All our clients, from home or abroad, are warmly welcome to visit our company !
3. Q: How does your factory do regarding quality control?
A: Quality is priority. Shunda people always attach great importance to quality controlling from the very beginning to the very end:
1).All raw material we used are environmental-friendly;
2).Skilful workers care every details in handling the producing and packing processes;
3).Quality Control Department specially responsible for quality checking in each process.
4.What information should i let you know if i want to get a quotation?
--Quantity
--The detailed size (top diameter,bottom diameter,and height)
--The paper thickness
5.what's your advantages?
--Make paper cup machine since 1998.
--Customers all over the world
--Fast reply:Our team will reply you soon.
--After-sale service:We have a after sale department , service for your problems and dealing with spare parts.
Waiting for your comfirmation.
Tag: paper cup making machinery,paper cups manufacturing machines
