Small Business Paper Tube Forming Machine , Max Cup Diameter 90mm

Basic Information
Place of Origin: China
Brand Name: Shunda
Certification: CE
Model Number: STD-80
Minimum Order Quantity: 1 set paper tube machine
Price: Negotiable
Packaging Details: Seaworthy and suitable for bumpy roads. Strong wooden box and firm plate
Delivery Time: within 30 working days
Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability: 10 sets per Month
Detail Information
Max Cup Diameter: 90mm Max Cup Height: 220mm
Speed: 70-80pcs/min Raw Material: 135-450gsm
Configuration: ULTRASONIC & HOT AIR SYSTEM Output: 12KW,380V/220V,60HZ/50HZ
Air Compressor: 0.4 M³/Min 0.5MPA Net Weight: 3.4 TONS
Machine Dimension: 2500 ×1800 ×1700 MM Dimension Of Cup Collector: 900 ×900 ×1760 MM
High Light:

paper tube making machine


tea cup manufacturing machine

Product Description

Product Description of Small Business Paper Tube Forming Machine , Max Cup Diameter 90mm

Speed70-80 pcs/min
Cup size

Diameter: 90mm(max)
Height: 220mm(max)

Raw material135-450 GRAM
Air compressor0.4 M³/Min 0.5MPA
Net weight3.4 TONS
Dimension of machine2500×1800 ×1700 MM
Dimension of cup collector900 ×900 ×1760 MM

1.It has 2 sets of original imported hot air system Leister guarantee the stability of heating.
2.Ultrasonic seal the paper cup body,can produce both single and double PE coated paper.
3.Open cylindrical can divide locating,heigh precision.
4.Automatically Oil lubrication system .
5.Servo motor control the gap of the bottom-paper within 0.1mm.

6.Gear and open cylindrical promote the stability and speed.

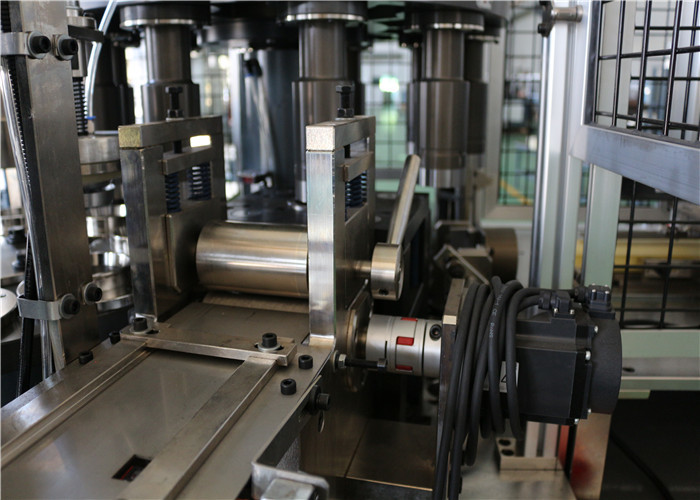

Detail pictures:
High Speed Automatic Paper Cup Machine , Paper Cup Forming Machine

Finished Products:
Small Business Paper Tube Forming Machine , Max Cup Diameter 90mm 1
- one year for electronic parts from the shipment date
- three years for mechnical parts from the shipment date

About us:

Established in 1998, Haining Chengda Machinery Co., Ltd. is a professional paper container equipment manufacturer. We have R&D,production and sales department .After 20 years of hard working, our company has a strong technical team and a research and development center cooperate with Taiwan's senior paper container molding technology team and obtained national patents such as a straight tube machine. Our company has modern assembly workshops, precision parts processing workshops, training centers, QA centers and other infrastructure. Our company has CE, ISO9001 certification system and national import and export rights.

In recent years, based on the characteristics of Chinese paper and the development trend of paper containers home and abroad, we have developed a batch of international synchronization technology unit of the intelligent molding Machine with automatic detection systems and remote connection system for paper cup machine, paper tube machine, paper lid machine,doner box machine and etc.

We lead the market by advanced technology and excellent product quality.In the future, we will continue to feed customers' needs, be brave in innovation, use perfect pre-sales and after-sales service systems to serve customers, and constantly explore the development of paper container molding machines. The new trend is to provide customers with total industry-wide solutions with competitive products.


Consistent Concept, Achieve Centennial Chengda
Every company that has a dream of a hundred years needs employees with the same spirit, and every corner is infused with the essence of corporate culture. At Chengda, we have a good vision and work hard for it; in Chengda, we have a business philosophy of honesty and implementation, and in Chengda, we have a technical philosophy of innovation and introduction. To every new project research and development; in Chengda, we have a refined and rigorous production concept, and through the production, assembly and testing of each component; in Chengda, we have an efficient concept of work, a harmonious teamwork spirit, and Infiltrate into every business activity.
Vision: Leading the industry trend and achieving a century-old enterprise.
Concept: Integrity, innovation, rigor, and efficiency.
Mission: Provide turnkey solutions for the paper container manufacturing industry.
Goal: Technology leader in the global paper container molding machine industry

Trade Show:
Beijing 2021
Small Business Paper Tube Forming Machine , Max Cup Diameter 90mm 2
After sale service:
- The CD and service& support guide booklet will be sent with machine to guide the installation process works, adjust the whole machine,production,avoid or solve the problem which the buyer will face.

- We will adjust the machine well for one week before the delivery, ensure the machine has the perfect performance!
- We supply the free training of buyer, the training won’t stop until the buyer control the whole lesson. The cost of air ticket, boarding and lodging should provided by buyer.
