0.4Mpa Automatic Paper Cup Machine , Double PE Coated Paper Cup Making Machine

Basic Information
Place of Origin: China
Brand Name: Shunda
Certification: CE
Model Number: SMD-90
Minimum Order Quantity: 1 set
Packaging Details: wooden case
Delivery Time: 21 days
Supply Ability: 10 sets/month
Detail Information
Speed: 90-100 Pcs/min Material: 135-450gram(single And Double PE Coated Paper )
Cup Size: <20oz Output: 380/220v 60HZ 12KW
Configuration: Ultrasonic&hot Air System Air Compressor: 0.4mpa
Machine Size: 2.5*1.8*1.7m Counting Table: Has Counting Table
High Light:

fully automatic paper cup making machine

,

paper cup manufacturing machine


Product Description

0.4Mpa Automatic Paper Cup Machine , Double PE Coated Paper Cup Making Machine





advantage:

1. photoelectric tracking can check every part and report.It can detect the cup rim and cup bottom.such as unstuck stain,broke,curl.Imported from Japan by panasonic.

2.Shunda’s Base board is nearly double than others,guarantee the machinery working stable ,longer using.

3.2sets of original hot air system guarantee the stability of heating.Imported fom Switzerland by Leister.

4.We use Ultrasonic to heat the paper body,make the glue more stronger.

5.Servo motor control the gap of the bottom-paper within 0.1mm.And it will not skew,keep the distance same between the two sides of the bottom-paper.From Taiwan by TECO.

6.camera system can inspect the cup situation.If  the cup is standard,it will blow into this tube,the defective production will blow into this tube.

7.Automatic Oil lubrication system for the machien’s  moving parts,which is very useful,cause the worker don’t have to operate it every day,It save many time ang promote the efficiency and the life of the machine.

8..............



picture:

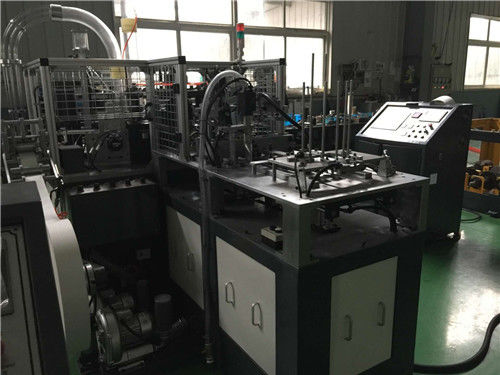

0.4Mpa Automatic Paper Cup Machine , Double PE Coated Paper Cup Making Machine 0







detail:

MODEL SMD-90
Speed 90-100cups/min
Cup Size Range <20oz
Material Single and double PE coated paper
Heating system Ultrasonic &hot air system
Output 380V,11 KW ,60HZ, Three Phase four wire
Net weight 3.4 TONS
Warranty 3years
Paper request 135gsm-450gsm
Description smd-90 paper cup machine is a high gram paper cup shaping machine, it can produce both single and double PE coated paper.use EVERGREN ultrasonic to seal the paper cup body,Leister hot air to seal the cup bottom.The main equipment all original imported from reputaion company.With high automation and high stability.


0.4Mpa Automatic Paper Cup Machine , Double PE Coated Paper Cup Making Machine 10.4Mpa Automatic Paper Cup Machine , Double PE Coated Paper Cup Making Machine 2





About us



Haining Chengda Machinery Co.,LTd  estabilished in 1999.We already experience 17 years,always abides by the business strategy of "high-quality products & reasonable price",

the service concept of "showing respect to you & trying my best", and the professional spirit

of ’’honesty, innovation, enthusiasm, sureness" to provide customers the best products and

services.





Trade Show



We has large market in North America,West Europe,South Asia,North Africa,,Our company has almost 80% market in Algeria,ATP,MTP,GSTP,ITP,,all our client.And the old client always purchse machine again from us,you can be at ease about the quality of our machine.





Our Customers








FAQ



1. Q: Is your company a factory or trading company?

A: Our company is a factory.



2. Q:Where is your factory located? How can I visit there?

A:Our factory is located in haining City, Zhejiang Province, China, about 1.5 hours by car from Shanghai .All our clients, from home or abroad, are warmly welcome to visit our company !



3. Q:How does your factory do regarding quality control?

A:Quality is priority. Shunda people always attach great importance to quality controlling from the very beginning to the very end: 1).All raw material we used are environmental-friendly; 2).Skilful workers care every details in handling the producing and packing processes; 3).Quality Control Department specially responsible for quality checking in each process.
