Place of Origin: | China |
---|---|
Brand Name: | Shunda |
Certification: | CE |
Model Number: | SMD-90 |
Minimum Order Quantity: | 1 set paper cup machine |
Packaging Details: | wooden case |
Delivery Time: | 35-45days after confirmed cup size and received deposit |
Payment Terms: | L/C, T/T, Western Union, MoneyGram |
Supply Ability: | 10 sets/month |
Product Name: | High Speed Paper Cup Machine | Speed: | 120-150 Pcs/min |
---|---|---|---|
Cup Size: | 2-46oz | Material: | 135-450 GRAM |
Output: | 12KW,380V/220V,60HZ/50HZ | Configuration: | ULTRASONIC & HOT AIR SYSTEM |
Air Compressor: | 0.4 M³/Min 0.5MPA | Net Weight: | 3.4 TONS |
Dimension Of Machine: | 2500×1800 ×1700 MM | Dimension Of Cup Collector: | 900 ×900 ×1760 MM |
Highlight: | disposable tea cup making machine,disposable paper products machine |

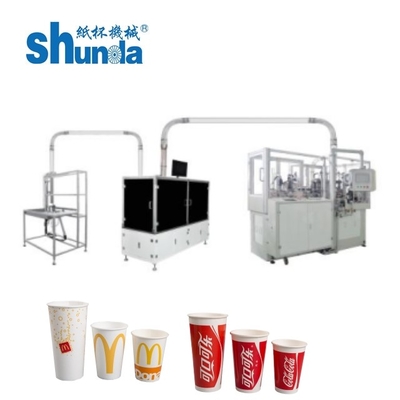

SMD-90 Paper Cup Making Machine is a newly developed equipment in 2024. Cup size range, raw material request
Technical date:
Suitable size: |
2-4oz, 4-16oz, 16-46oz |
Raw material: |
Sing/double PE coated, PLA |
Suitable paper weight |
135-450 GRAM |
Ration Productivity: |
120-150/min |
Total power : |
12KW |
Net Weight: |
3400Kg |
Gross Weight: |
3600kg |
Power: |
220V /380V |
Dimension of machine |
2500×1800 ×1700 MM |
Dimension of cup collector | 900 ×900 ×1760 MM |
Advantage:
1.Electric heating and Ultrasonic heating to make sure the sealing,and we use oblate to make the paper cup body more better.
2.The machinery is all through quenching treatment,hardeness is better than other by 20%.
3.The mould is steel through anti-rust treatment,promote the long life.
4. 12 pcs of senser checking the performance of the machine, stop it when alarming.
...
Paper fan side seal:Hot air system for preheating, using ultrasonic for side seal. Ensure no water leakage during high speed running. Especially for double PE coated paper fan, have two side hot air system. Ultrasonic is made in Taiwan by EVEN GREEN.
Inspection system(Option): Unique design. Our factory set up on final turn station,more stable than set up on flying tube. Do not need to buy extra inspection machine, less factory space needed. Inspection accuracy can be set up by self.
1.Machine solidly packed in waterproof film.
2.Machine bottom tightly fixed onto wooden plate.
3.Machine body safely put into wooden case
Haining Chengda machinery established in 1998, is a professional paper container equipment manufacturer. We have R&D, production and slaes department.
Paper Cup Making Process:
1. Paper Making Machine make paper roll.
2. Flexo Printing Machine or Paper cup Printing machine to Paper roll
3. Paper die-cutting machine to make paper fan which is paper body
4. We use electrical heater or Evergreen Ultrasonic to send paper fan to the mould and sealing
5. At the same time, the paper bottom automatic cut to round type and sent to the mould
Together with paper fan.
6. Preheat the bottom, heat again the bottom, and curling the top edge of the cup
7. Sealing the bottom and body strongly, Knurling the bottom.
8. Discharging finished paper cup automatically from moulds. Sending to the collector and be collected and piled and count automatically. Each 50pcs or 100pcs, we can set alarm, so easy to collect.
As the sole professional manufacturer on the paper cup machine,our factory established in 1999, located in Haining City, Zhejiang Province. We have rich experience on the paper cup machine& paper cups making ,providing high-quality, comprehensive and advanced technical products to our customers all over the word.In our factory there is a well-equipped in production lines and strong in technical force. We mainly produce three series of products. Our automatic paper cup machines and frequency-adjustable paper cup machines allow customers adopt 135g/sq.m to 300g/sq.m paper material to produce 2oz. to 9oz. single PE coated paper cups. Our high-gram material paper cup machine adopt super sonic and hot air for better heating,can accept 150g/sq.m to 450g/sq.m single and double PE coated paper to produce cups from 2oz. to 22oz.Also it suitable for the ice cream paper cups. To understand customers' requests and learn from our competitors is the principle that we always adhere to. Based on rich experience, we have improved our technologies through learning from our competitors in South Korea and Germany. A competitive Chinese price allows our facilities even more popular in both domestic and overseas markets. Now we sincerely welcome friends from all over the world to joint us and develop the huge potential disposable paper cup and container market in your countries. We are sure that there will be a promising future waiting for both you and us. We look forward to cooperating with you in the near future.
