Automatic Paper Cup Machine with 160 Pcs/Min& 135-450GSM Material

Basic Information
Place of Origin: China
Brand Name: Shunda
Certification: CE
Model Number: SMD-90
Minimum Order Quantity: 1 SET
Packaging Details: Wooden Pallet for paper cup machine
Delivery Time: 20-35 Working Days
Payment Terms: L/C, T/T
Supply Ability: 20 sets/month
Detail Information
Speed: 100-120Pcs/Min Material: 135-450Gsm Single And Double PE Coated Paper
Configuration: Ultrasonic Heating Cup Size: 2-46Oz (Mould Replacement Is Available)
Weight: 3400KG Output: 380v , 50HZ
High Light:

disposable cup making machine


paper cup manufacturing machine

Product Description

Automatic Paper Cup Machine with 160Pcs/Min& 135-450GSM Material
ZBJ-12A type paper cup forming machine is an automatic paper cup machine with multi-running positions. The machine runs a whole procedure of paper feeding , guling , oiling , bottom punching , heating , rolling , rounding and tripping . It uses the microcomputer control frequency changer , and it may automatically transform the speed.



Model SMD-90
Capacity pcs/min 100-120 90-110 80-100
Size Range mm(max) Top diameter:90
Bottom Diameter:80
Top diameter:110
Bottom Diameter:80
Top diameter:125
Bottom Diameter:100
Suitable Paper Thickness gsm 135-450
Sealing Method   Ultrasonic and hot air system
Running Power KW 10 11 12
Air compressor   0.4m²/Min. 0.5MPa 0.5m²/Min. 0.5MPa 0.6m²/Min. 0.5MPa
Net weight Kgs 3400 3500 3600
Machine dimension mm 2500*1800*1700 2600*1800*1800 2700*1800*1800
Collector Dimension mm 900*900*1760 1000*900*1860 1100*900*1860

Automatic Paper Cup Machine with 160 Pcs/Min& 135-450GSM Material 0

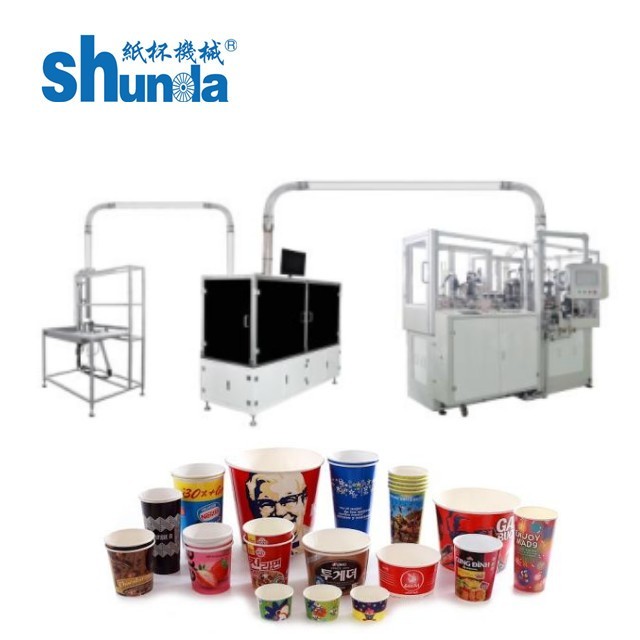

Whole process


Shunda could supply you the whole production line from printing, die-cutting, cup forming and packaging.
Automatic Paper Cup Machine with 160 Pcs/Min& 135-450GSM Material 1

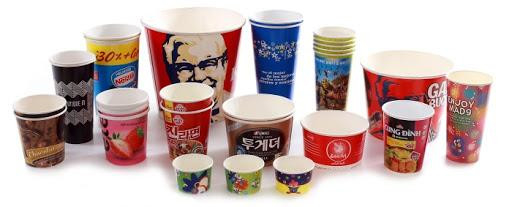

Cup sample
Automatic Paper Cup Machine with 160 Pcs/Min& 135-450GSM Material 2


 Machine video




The Seller guarantee the machines are new 100% and the guarantee period shall be given 3 years which starts from the date of the machine’s arrival. During this period, the Seller shall provide free spare parts that caused by the machine’s quality.
