Speed: | 100-120pcs/min | Material: | Single Or Double PE Coated Paper |
---|---|---|---|
Heat System: | Ultrasonic And Hot Air Sysytem | ||
Highlight: | fully automatic paper cup making machine,paper cup manufacturing machine |
price of paper cups machines is very competitive, it is fit for making coffee cup , juices cup etc, it has CE certificate,2-46 oz
1.description
SMD-90 is designed to make single and double PE coated paper cups for cold and hot drinking cups. Inspection system can detect such as paper cup dirty, open rim and other defects. It also can be added remote connection system to factory computer system.
2.selling points
1).we use omron ,japan brand for transducer
2).three range of chains instead of two range chains running
3).we use gear running between the three turnplates running instead of chains.
4).we use the import beeline gear inside the machine
5).we use alu material for heaters , this material is more safer ,once the machine stop unormal , the cup inside can not burning , but most factory use iron pipe material , it is easy broken and once machine stop unormal, the cup inside will be burning
3. main technical data
Item | SMD-90 |
Speed | 100-120pcs/min |
Cup size | 2-46oz |
Cup capacity | 50-1500ML |
Raw Material | Single and double PE coated paper |
Paper request | 135gsm-450gsm |
Heating system | ultrasonic and hot air system |
Output | 380V/220V,50HZ, Three Phase four wire |

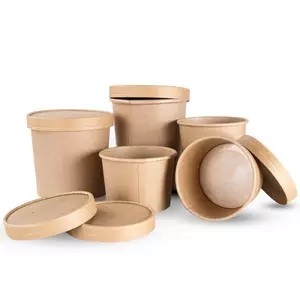

4. Finished Products:
5. Machine video
https://youtu.be/3vboPdSjjAo
6. Package
Established in 1998, Haining Chengda Machinery Co., Ltd. is a professional paper container equipment manufacturer. We have R&D,production and sales department .After 20 years of hard working, our company has a strong technical team and a research and development center cooperate with Taiwan's senior paper container molding technology team and obtained national patents such as a straight tube machine. Our company has modern assembly workshops, precision parts processing workshops, training centers, QA centers and other infrastructure. Our company has CE, ISO9001 certification system and national import and export rights.
In recent years, based on the characteristics of Chinese paper and the development trend of paper containers home and abroad, we have developed a batch of international synchronization technology unit of the intelligent molding Machine with automatic detection systems and remote connection system for paper cup machine, paper tube machine, paper lid machine,doner box machine and etc.
We lead the market by advanced technology and excellent product quality.In the future, we will continue to feed customers' needs, be brave in innovation, use perfect pre-sales and after-sales service systems to serve customers, and constantly explore the development of paper container molding machines. The new trend is to provide customers with total industry-wide solutions with competitive products.
