| Place of Origin: | China |
|---|---|
| Brand Name: | Shunda |
| Certification: | CE |
| Model Number: | ZBJ-9A |
| Minimum Order Quantity: | 1 set |
| Packaging Details: | wooden package |
| Delivery Time: | 30 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 30 SET per mouth |
| Color: | Blue | Speed: | 45-50 Pcs/min |
|---|---|---|---|
| Warranty: | 3 Years | Output: | 380V/220V,60HZ |
| Material: | 135-450 Gram | Cup Size Range: | 2-16oz |
| Heating System: | Copper Bar | Machine Size: | 2700*1500*1500 |
| Machine Weight: | 1.5 Tons | Rate: | 3.4kw |
| High Light: | disposable cup making machine,paper cup manufacturing machine |
||

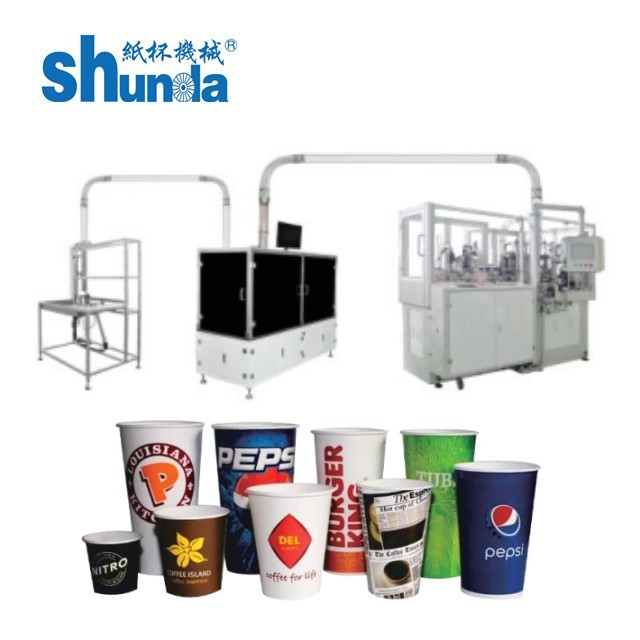

ZBJ-9A Single PE coated paper cup machine is a automatic environmental machine with multi-running positions. This machine runs a whole procedure of paper-feeding , cup-fan-wall sealing, oiling, bottom punching, heating, knuring,curling, cup discharge and cup counter.
Main technical parameter
| Description | |
| Speed | 45-50 pcs/min |
| Cup size | 2-16oz |
| Output | 380V/220V,60HZ |
| Rate | 3.8 kw |
| Material | Single PE coated paper |
| Paper thickness | 135-300 gsm |
| Advantages |
| 1. Easy operation |
| 2. Electricity heating system |
| 3. Economical machine for small coffee cup |
| 4. Three years guarantee |
| 5.24 hours working, non-stop |
| 6.More than 10 years working life |
| 7.Free training |
How to select my paper?
Mostly, cup manufacturers use PE coated paper for production. In recent years, PLA coated paper (bio-degradable) also used in certain market along with the rising of environmrntal awareness. Foe paper cup industrial, we suggest manufacturere to use minimum PE thickness single PE 18g/m2 or double PE 18/12 g/m2. According to the common sense of paper cup machinery( paper thickness is more important than base weight). Paper thickness tolerance of each size should be within +-0.02mm.
According to function
Generally speaking, cold cups need double PE coated paper and hot cups need single PE coated paper.
According to cup size
Normally, the bigger the cups volume, the thicker the paper should be. Such as 12oz-16oz cups need 0.31mm-0.41mm thickness paper according to purposes of use both thicker or thinner paper can be formed , but the holding feeling is different when using.
Paper cup machine detail
Video of machine
ZBJ-12A: https://www.youtube.com/watch?v=XoyLi7xDu_k&feature=youtu.be
Whole production line of paper cup
Packaging & Shipping
Seaworthy and suitable for long&bumpy roads
1.Machine solidly packed in waterproof film.
2.Machine bottom tightly fixed onto wooden plate.
3.Machine body safely put into wooden case.
Our advantage
--17 years experience: We have been in making paper cup machine for 17 years.
--Customers all over the world
--Certificate: CE certificate,ISO 9001
--Fast reply:Our team will reply you soon.
--After sale service: We have a after sale department , service for your problems and dealing with spare parts.
