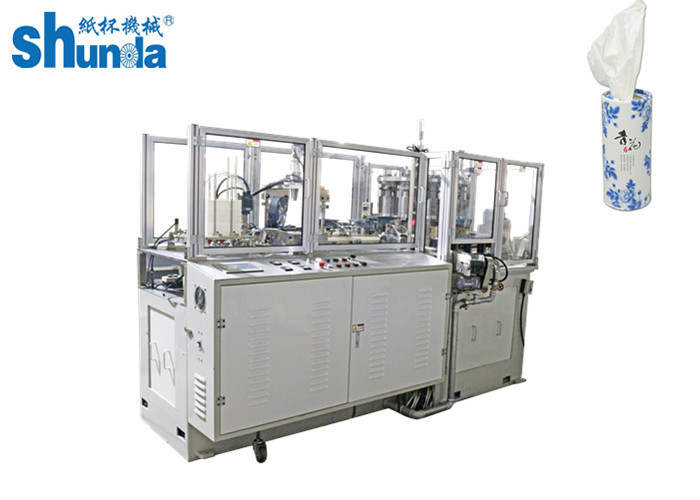

Automatic Intelligent Paper Tube Forming Machine With Ultrasonic And Hot Air System
Key Specifications
| Attribute |
Value |
| Diameter |
90mm max |
| Height |
220mm max |
| Speed |
70-80pcs/min |
| Paper thickness |
135-450gsm PE/PLA coated paper |
| Sealing Method |
Ultrasonic & hot air system |
| Output |
12KW,380V/220V,60HZ/50HZ |
| Air compressor |
0.4 M³/Min 0.5MPA |
| Net weight |
4.0 TONS |
| Machine Dimension |
2500 ×1800 ×1700 MM |
Product Overview
The STD-80 intelligent straight paper tube forming machine is designed for manufacturing straight paper tubes used in tissue paper, potato chips, and other food packaging applications.
Advanced Features
- Open Type Cam Drive System With Double Longitudinal Axis
- Continuous Automatic Spray Lubrication
- Gear Transmission System
- Leister Heater On The Bottom
- Whole Frame Design
- Linear Guide Rail for Conveying System
Key Components
Fan Paper Conveyor: Delivers fan paper to the forming machine, reducing loading time and labor costs.
Inspection System: Automatically detects and removes defective products with quality issues like broken rims, dirty spots, wrong rim rolling, leaks, or deformation.
Technical Highlights
1. Dual Leister Hot Air System
Two sets of original imported Leister hot air systems ensure heating stability.
2. Ultrasonic Sealing Technology
Ultrasonic sealing capability for both single and double PE coated paper.
3. Panasonic Photoelectric Inspection
Comprehensive quality control with Panasonic photoelectric sensors checking every part.
4. Precision Open Cylindrical Locating
High precision open cylindrical dividing and locating system.
5. Automatic Oil Lubrication
Automated oil lubrication system for smooth operation.
Additional features include gear transmission for long machine life, camera inspection system, and photoelectric tracking for every production step.
Finished Products
Support & Warranty
- Comprehensive operation guidance, manual instruction, and electrical schematic diagram provided
- One week machine adjustment before delivery to ensure perfect performance
- Free training until buyer fully controls operation (travel expenses not included)
- Warranty: 1 year for electronic parts, 3 years for mechanical parts from shipment date
About Haining Chengda Machinery Co., Ltd.
Established in 1998, we are a professional paper container equipment manufacturer with R&D, production, and sales departments. Our 20 years of experience has developed a strong technical team and research center collaborating with Taiwan's paper container molding technology experts.
Our facilities include modern assembly workshops, precision parts processing workshops, training centers, and QA centers. We hold CE and ISO9001 certifications and national import/export rights.
We specialize in intelligent molding machines with automatic detection and remote connection systems for various paper container applications, leading the market with advanced technology and quality products.
Trade Show Participation
Recently attended "China Print 2021 Exhibition" in Beijing:
Upcoming participation at SWOP 21 in Shanghai (Booth N3G10):
Frequently Asked Questions
Q: Is your company a factory or trading company?
A: Our company is a factory.
Q: Where is your factory located?
A: Located in Haining City, Zhejiang Province, China, about 1.5 hours from Shanghai. Visitors welcome.
Q: How does your factory handle quality control?
A: Strict quality control measures including environmental-friendly materials, skilled production processes, and dedicated QC department oversight.
