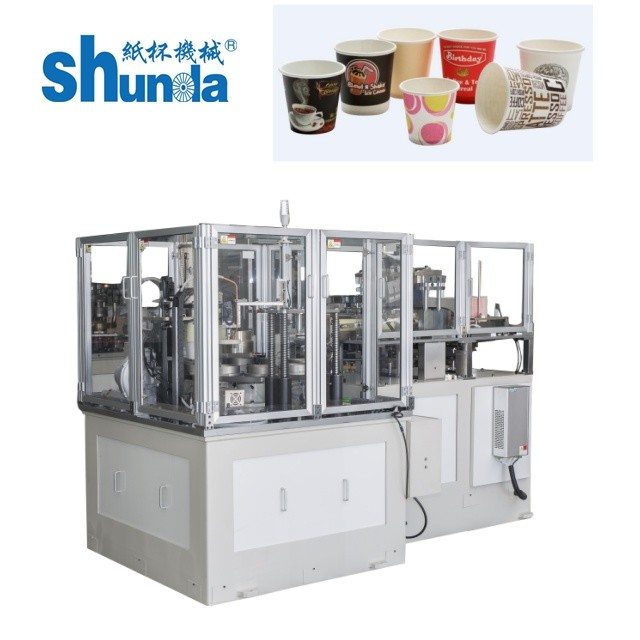

Automatic 4OZ coffee paper cup making machine SHUNDA SMD-90
Key Attributes
Product Summary
Automatic 4OZ Coffee Paper Cup Making Machine SHUNDA SMD-90 Key Specifications Attribute Value Capacity Max 150 pcs/min Sealing pattern Ultrasonic system from Taiwan Paper fan Single/Double PE coated paper Cup size 2-46oz Weight range 135-450Gsm Removable Panel optional Colors Customized Machine ...
Product Details
Automatic coffee paper cup making machine
,4OZ coffee paper cup making machine
,4OZ automatic paper cup forming machine
| Attribute | Value |
|---|---|
| Capacity | Max 150 pcs/min |
| Sealing pattern | Ultrasonic system from Taiwan |
| Paper fan | Single/Double PE coated paper |
| Cup size | 2-46oz |
| Weight range | 135-450Gsm |
| Removable Panel | optional |
| Colors | Customized |
| Machine Size | 2500*1800*1700mm |
The Automatic Paper Cup Machine SHUNDA SMD-90 is designed for efficient production of paper cups using single or double PE coated paper. Featuring an advanced ultrasonic system, this machine delivers smooth operation with minimal waste.
| Model | SMD-90 |
|---|---|
| Capacity (pcs/min) | 100-120 | 90-110 | 80-100 |
| Size Range (max) |
Top diameter: 90mm, Bottom: 80mm, Height: 140mm Top diameter: 110mm, Bottom: 80mm, Height: 170mm Top diameter: 125mm, Bottom: 100mm, Height: 170mm |
| Suitable Paper Thickness (gsm) | 135-450 |
| Sealing Method | Ultrasonic and hot air system |
| Running Power (KW) | 10 | 11 | 12 |
| Air compressor | 0.4m²/Min. 0.5MPa | 0.5m²/Min. 0.5MPa | 0.6m²/Min. 0.5MPa |
| Net weight (Kgs) | 3400 | 3500 | 3600 |
| Machine dimension (mm) | 2500*1800*1700 | 2600*1800*1800 | 2700*1800*1800 |
| Collector Dimension (mm) | 900*900*1760 | 1000*900*1860 | 1100*900*1860 |
- Advanced double barrel cam indexing
- PLC closed-loop control system
- Automatic oil lubrication system
- Cup inspection and intelligent control
- Servo control for bottom feeding
- Flameless hot air sealing
Single/double PE coated paper cups and small size bowls
