Automatic Printed Disposable Paper Cup Packing Machine 60HZ 380V / 220V

Basic Information
Place of Origin: China
Brand Name: Shunda
Certification: FDA,SGS.ISO:9000
Model Number: SMD-90
Minimum Order Quantity: 1 set paper cup machine
Price: negotiation
Packaging Details: Export wood case
Delivery Time: 35-45 working days after confirmed cup size and received deposit
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 20 SETS per month
Detail Information
Product Name: Paper Tea Cup Making Machine Color: Green, Gray,any Color As Client Request
CUP SIZE: 4-16oz Speed: 100-120 Pcs/min(max 150pcs/min)
Material: Single/Double PE Coated Paper CONFIGURATION: ULTRASONIC&HOT AIR
Electricity Brand: Siemens Motor OUTPUT: 380V/220V,60HZ
Dimension Of Machine: 2500×1800 ×1700 MM Dimension Of Cup Collector: 900 ×900 ×1760 MM
High Light:

cup packaging machine


disposable Cup Packing Machine

Product Description

Automatic Printed Disposable Paper Cup Packing Machine 60HZ 380V / 220V


Automatic Printed Disposable Paper Cup Packing Machine 60HZ 380V / 220V

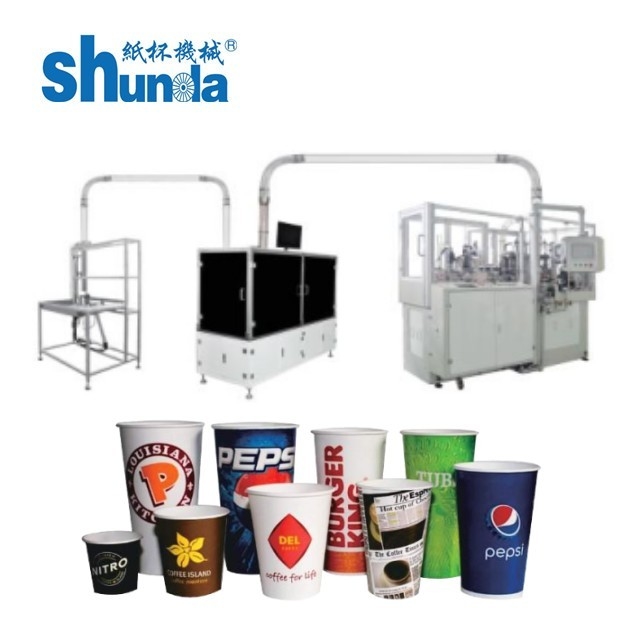

Main construction of the paper Cup machine


SMD-90 paper cup machine has the Cup main body shaping mechanism, the bottom forming, the glass forming mechanism, transmission mechanism and electric control parts. Bowl on the forming mechanism with pieces of paper, paper transfer device,ultrasonic suture device; Bottom forming mechanism by the end of paper,photoelectric feeding mechanism, strong bottom forming, flip the bottom of the transmission mechanism, two groups of heating mechanism, folding mechanism, knurling, transition cups of institutions, the main turret institutions and die







   100-120 PCS/MIN(max 150pcs/min)






                    ULTRASONIC&HOT AIR




                    0.5 M³/Min


                    3.4 TONS




Automatic Printed Disposable Paper Cup Packing Machine 60HZ 380V / 220V 1


Technological Process

Automatic Printed Disposable Paper Cup Packing Machine 60HZ 380V / 220V 2



(1) segment by absorption of paper from the paper frame to the panel, the paper transfer institutions held segment delivery to body position, to embrace merger use ultrasonic heating heating technology on pieces of paper, make a cup of tube forming.Then a cup bucket transport mechanism to turn the cup barrels to the agencies, after the flip, cup body is a cup on the bucket to the mold.

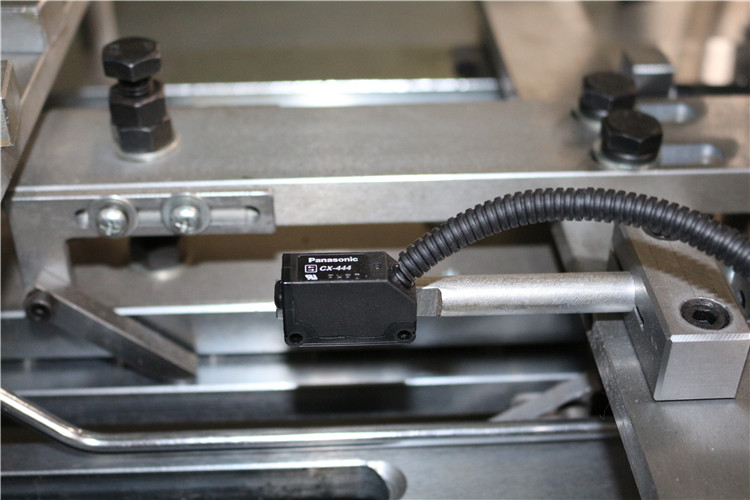

(2) at the same time in the bottom paper rack bottom paper is pulled through the photoelectric control paper set limit to to the store to be packed in cartons, precise servo feed motor to send paper to bottom institutions and agencies at bottom end of the paper cutting, molding and forming the bottom to the bottom of the mould.

(3) the manipulator tubular semi-finished products after the transition to the bottom of the cup are embedded mold, through intermittent rotation in turn through a two heating, at the bottom of the bottom hem, knurled finish at the bottom of the paper cup forming, at the bottom of the use of high pressure air to finish molding semi-finished products of paper cups at the bottom of the transition to the edge jar.

(4) through intermittent rotation in turn through a silicone oil lubrication, the first volume and the name of the second volume mouth do paper cup mouth shape.With compressed air delivery finally finished paper cup to drink holder, after counting packaging.




  1. Quality assurance both for our products and service for after-sales.
  2. Favorable price.
  3. Great variety of products.
  4. Attractive design.
  5. Environment Friendly Technology
  6. OEM and ODM service provided.


Our QC team


A QC team with more than 10 professional and technical personnel. To ensure 100% products checking.
Material: Strictly control of material using, meet international requested standards.
Semi-finished products inspection: Product inspection before 100% finished.
Production line test: With work team or data engineer who will inspect machines and lines at fixed period.
Finished Product Inspection: Quality and property test before products are packed and loaded.





1. Q: Is your company a factory or trading company?
A: Our company is a factory.

2. Q:Where is your factory located? How can I visit there?
A:Our factory is located in haining City, Zhejiang Province, China, about 1.5 hours by car from Shanghai .All our clients, from home or abroad, are warmly welcome to visit our company !

3. Q:How does your factory do regarding quality control?
A:Quality is priority. Shunda people always attach great importance to quality controlling from the very beginning to the very end: 1).All raw material we used are environmental-friendly; 2).Skilful workers care every details in handling the producing and packing processes; 3).Quality Control Department specially responsible for quality checking in each process.


 4. Q: How you guarantee the quality?

 A: Our Guarantee period is 3 years for clients.
