Speed: | 100-130 Pcs/min | Seal Mode: | Evergreen Ultrasonic & Leister Hot Air |
---|---|---|---|
Paper Fan: | 190gsm To 350gsm | Output: | 13Kw , 380V,50Hz |
Machine Weight: | 3500Kg | Machine Size: | 2500x1800x1700mm |
Count Table: | 900x900x1760mm | Air Supply: | 0.4Mpa |
Highlight: | fully automatic paper cup making machine,paper cup manufacturing machine |

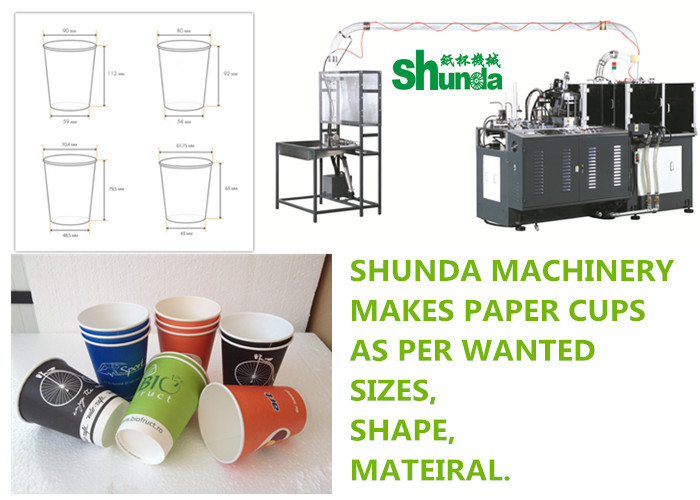

Automatic Paper Cup Machine,automatical paper cup machine SMD-90 digital
control inspect camera
Reliability
SMD-90 smart middle speed paper cup forming machine is provided with advantages
of high performance,high efficiency and high quality.The overall steel plate machine body
and oil spraying lubrication system ensure normal and stable long term operation of the equipment.
High efficiency
Advanced high precision cylindrical cam driving unit works with gear drive system make
sure accurate work of each station.Bottom paper is controlled by servo motor.
User-friendly design
Machine function is controlled by PLC unit and human-computer interface.Manual operation
is compelely replaced by paper cup automatic counting and collecting system.
Data
MODEL |
SMD-90 |
SPEED |
100-130 PCS/MIN |
CUP SIZE |
top dia 6cm to 11.5cm bottom dia 5cm to 8.5cm height 6.5 to 18cm |
MATERIAL |
150-350GRAM |
CONFIGURATION |
ULTRASONIC&HOT AIR |
OUTPUT |
380V,50HZ |
AIR COMPRESSOR |
0.4 M³/Min |
NET WEIGHT |
3500Kg |
Highlights
Quality control
1).All parts are inspected then assemblied.
2).10 year experience assembly workers,always follow strict quality rules.
3). 3 years warranty, 7 day 24 hour service availble.
PROFILE
Founded in year 1999 and supplied to over 27 countries,Shunda paper cup forming installations are highly reputated in
Algeria,Azerbaijan, Bulgaria,Ecuador,Ethiopia,Finland,Libya,Indonesia,Iran,Iraq, Jordan,Mexico,Oman,Pakistan,Saudi Arabia,
Senegal,Serbia,Thailand,Tunisia,UAE,Ukraine,USA,Vietnam,China Mainland,Hongkong,Taiwan,etc.
Without break down,bottom leakage or hemming breakage,Shunda paper cup machines are widely used by famous brands such as,
Starbucks, Lipton,Mcdonlad's, KFC,Pepsi,Cocacola,airports,Chinese bullet train systems,etc.
