Max Speed 160 cups/min Printed Cutting Disposable Paper Cup Making Machine 2oz - 32oz

Basic Information
Place of Origin: China
Brand Name: Shunda
Certification: CE,ISO9001
Model Number: SMD-90
Minimum Order Quantity: 1 SET
Price: negotiation
Packaging Details: Wooden Pallet for paper cup machine
Delivery Time: 30 working days after received your payment
Payment Terms: T/T or L/C
Supply Ability: 20 SETS per month
Detail Information
Product Name: Automatic Paper Cup Machine Color: White Or Customized
CUP SIZE: 2-46oz Speed: 100-120 Pcs/min
Material: Single/Double PE Coated Paper CONFIGURATION: ULTRASONIC&HOT AIR
OUTPUT: 380V/220V,60HZ MATERIAL: 135-450GRAM
Highlight:

fully automatic paper cup making machine

,

disposable cup making machine


Product Description



Max Speed​ Printed Cutting Disposable Paper Cup Making Machine 2oz - 32oz

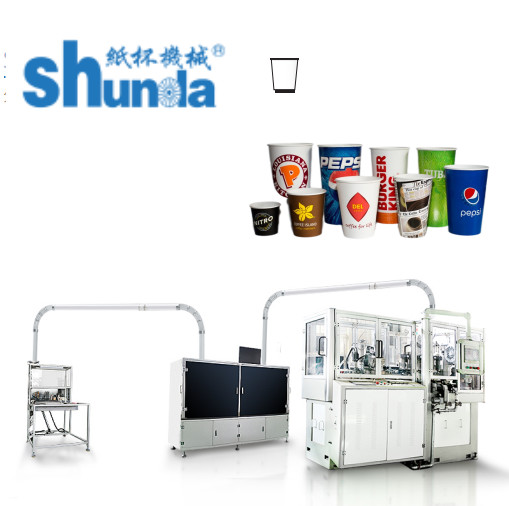

Max Speed 160 cups/min Printed Cutting Disposable Paper Cup Making Machine 2oz - 32oz 0



Description:



SMD-90 AUTOMATICALLY PAPER CUP MACHINE , IT INCLUDS DELIVER PAPER (PRINTED AND CUTED PAPER FAN), SEAL(HEATING), OIL INDECTION, BOTTOM CUT, HEAT,BOTTOM SEALING, HEMMING AND CUP DISCHARGE ,ALSO , IT HAS PHOTOELECTRIC CONTROL, SHORT CIRCLE PROTECTION,AND AUTOMATICALLY COUNTING. IT PRDODUCE COLD AND HOT DRINNK CUP , TEA PAPER CUP, COFFEE PAPER CUP,ICE CREAM PAPER CUP. ONE PERSON EASY OPERATION, STABLE PERFORMANCE, LESS PLACE, HIGH EFFICIENCY .



Shunda is a professional paper cup/bowl and container supplier, focusing on paper cup forming solution for over 26 years. We supply customers smarter, more intelligent paper container solutions.





Specifications:





Model SMD-90
Capacity pcs/min 100-120 90-110 80-100
Size Range mm(max) Top diameter:90
Bottom Diameter:80
Height:140
Top diameter:110
Bottom Diameter:80
Height:170
Top diameter:125
Bottom Diameter:100
Height:170
Suitable Paper Thickness gsm 135-450
Sealing Method   Ultrasonic and hot air system
Running Power KW 10 11 12
Air compressor   0.4m²/Min. 0.5MPa 0.5m²/Min. 0.5MPa 0.6m²/Min. 0.5MPa
Net weight Kgs 3400 3500 3600
Machine dimension mm 2500*1800*1700 2600*1800*1800 2700*1800*1800
Collector Dimension mm 900*900*1760 1000*900*1860 1100*900*1860








Cup Products



1. Hot and Cold Drink Cups



2. Small bowls



  Max Speed 160 cups/min Printed Cutting Disposable Paper Cup Making Machine 2oz - 32oz 1









Advantages





a.Advanced double barrel cam indexing

b.PLC colsed-loop control system

c.Automatic oil lubrication system

d.Cup inspection and intelligent control

e. Servo control for bottom feeding

f. Flameless hot air sealing







Machine Details

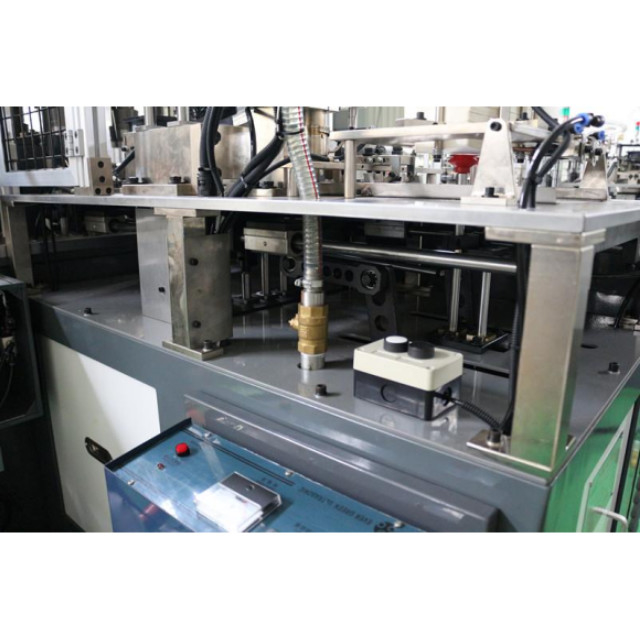

I Ultrasonic Heat and hot air system



Max Speed 160 cups/min Printed Cutting Disposable Paper Cup Making Machine 2oz - 32oz 2

Max Speed 160 cups/min Printed Cutting Disposable Paper Cup Making Machine 2oz - 32oz 3

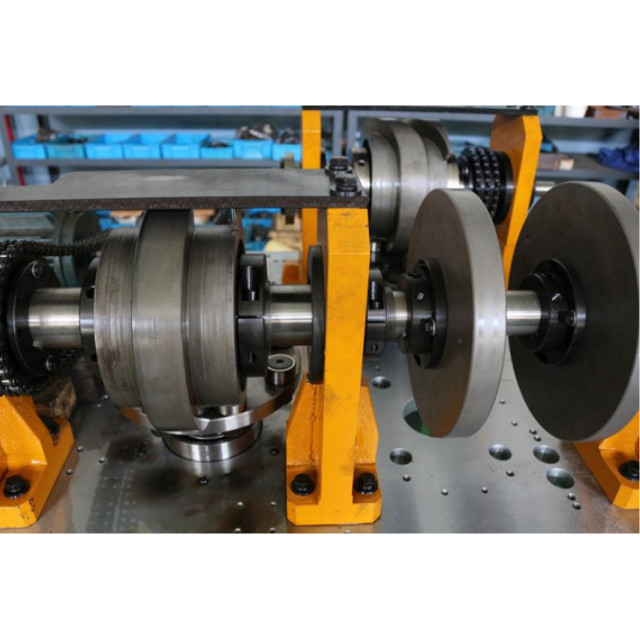

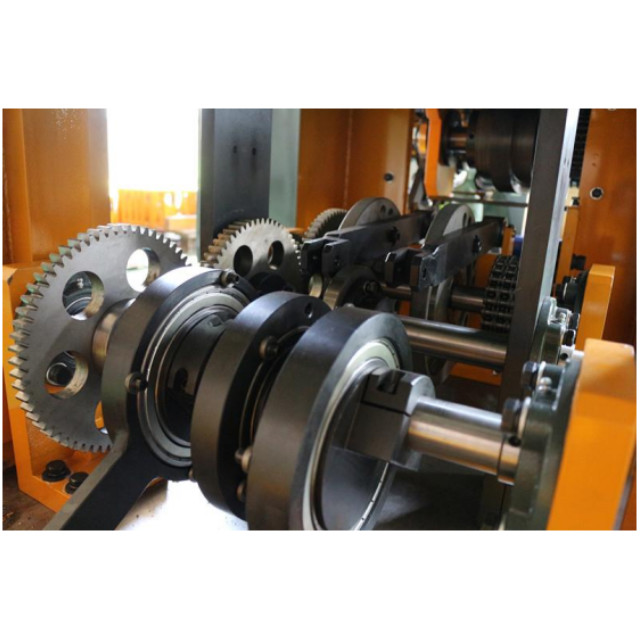

II  8 Pcs turn plate



Max Speed 160 cups/min Printed Cutting Disposable Paper Cup Making Machine 2oz - 32oz 4



Packing and shipment



Max Speed 160 cups/min Printed Cutting Disposable Paper Cup Making Machine 2oz - 32oz 5



FAQ



1. Q: Is your company a factory or trading company?

A: Our company is a factory.

2. Q:Where is your factory located? How can I visit there?

A: Our factory is located in haining City, Zhejiang Province, China, about 1.5 hours by car from Shanghai .All our clients, from home or abroad, are warmly welcome to visit our company !

3. Q: Which kind of certicate do you have ?

 A: We Have CE ,ISO:9000 certificates.





Product Overview: Paper Cup Forming Machine

The Paper Cup Forming Machine is a fully automatic machine used for manufacturing paper cups, specifically designed for ice cream paper cups. It is manufactured by a renowned company, making it a top choice for businesses in the food and beverage industry.

With dimensions of 2500x1800x1700 mm, this machine is compact and space-saving, making it suitable for small to medium-sized production facilities. It is also equipped with advanced technology, ensuring high precision and efficiency in cup forming.

The automatic grade of this machine eliminates the need for manual labor, increasing productivity and reducing production costs. It can produce up to 80 cups per minute, making it an ideal choice for high-volume production.

The collector dimension of 900x900x1760 mm allows for easy collection and packaging of the formed cups. This feature ensures a smooth and continuous production process, reducing any downtime.

The power supply requirement for this machine is 220V/380V, making it adaptable to different power sources. This flexibility allows it to be used in various locations without the need for additional modifications.

The Paper Cup Forming Machine is designed to use paper with a weight range of 135-450 gsm, making it suitable for producing sturdy and durable paper cups. This versatility allows for the production of different sizes and shapes of ice cream paper cups according to the specific needs of the business.

In conclusion, the Ice Cream Paper Cup Making Machine is a top-of-the-line product that offers precision, efficiency, and flexibility in manufacturing ice cream paper cups. Its automatic grade, compact size, and advanced technology make it a valuable investment for businesses in the food and beverage industry.

Keywords: Paper Cup Forming Machine, Ice Cream Paper Cup Making Machine, Ice Cream Paper Cup Making Machine Manufacturer
