Automatic Paper Cup Machine,automatic paper cold drink cup high speed machine 160cups/min
Description

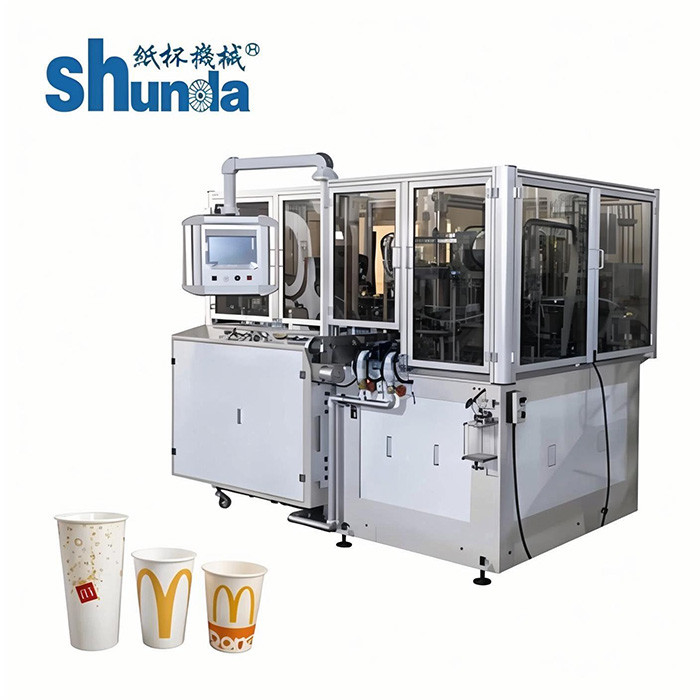

SMD-90B is a Paper Cup machine,which is designed By HAINING CHENGDA MACHINERY
CO.,LTD,It can produce both single and Double PE coated paper Bowls. As technology development, it will take place of the formally machines in market day by day.

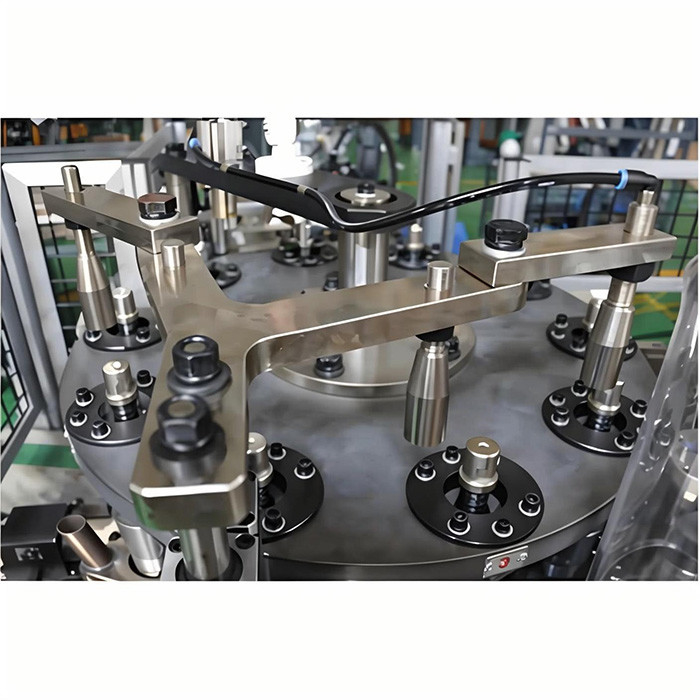

1. Hi-tech Cylindrical indexing gear
2. Switzerland Hot air sealing device
3. Mitsubishi PLC tracking and Touch screen Controlling cabinet
4. Servo-driven bottom-web feed with infinitely variable setting
5. Automatic lubrication system
6. Infinitely variable drive
7. Safety Door opening protection device

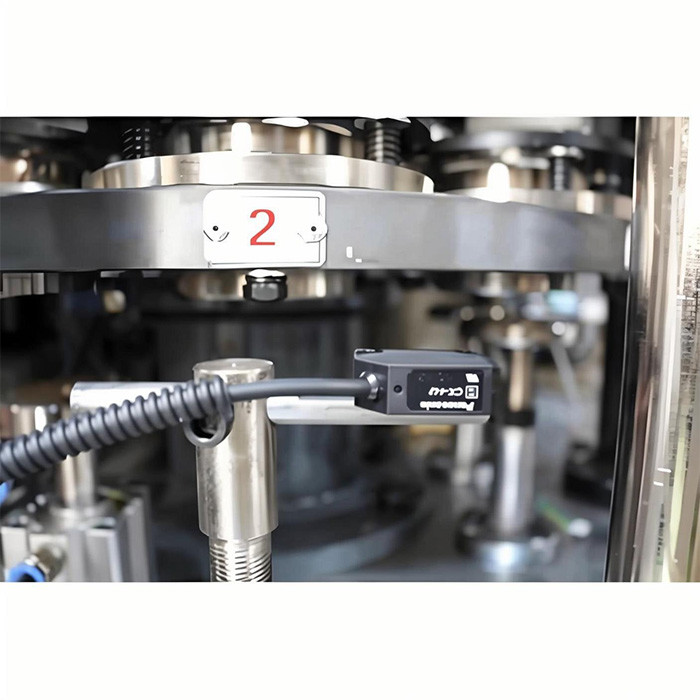

8. Photoelectric tracking and detecting every step
9. Automatic collecting and counting cups
Specification
| MODEL | SMD-90 AUTOMATICAL MIDDLE SPEED PAPER CUP MACHINE |
| STEADY SPEED | 160CUPS/MINUTE |
| CUP SIZE |
TOP DIAMETER 60MM TO 100MM BOTTOM DIAMETER 40MM TO 80MM HEIGHT 50MM TO 150MM |
| PAPER FAN | 135 TO 450 GRAM |
| CONFGURATION | ULTRASONIC HOT AIR HEATING |
| OUTPUT | 12KW , 380V/220V, 60HZ |
| MACHINE WEIGHT | 3.5TONS |
| MACHINE SIZE | 2500 X1800 X1700 MM |
| CUP COLLECTOR SIZE | 900X900X1760 MM |
| AIR COMPRESSOR | 0.45MPA |
Highlights
Original Leister heaters
Panasonic track switches
food grade moulds
Anti rust components
Ultrasonic system from Taiwan--EVERGREEN brand
Quality control
1).All parts are inspected then applied
2).10 year experience assembly workers,always follow strict quality rules
3). 3 years warranty, 7 day 24 hour service availble.
QUANTITY GUARANTEE
The Seller guarantee the machines are new 100% and the guarantee period shall be
given 36 (thirty-six) months which starts from the date of the machine’s arrival.
During this period, the Seller shall provide free spare parts that caused by the machine
quality.
INSTALLATION SERVICE
The Seller shall send one technician to install the machine for The Buyer and will train
the workers how to operate the machines, but the Buyer shall be in charge of all the
technician’s expenses including transportation expenses( including round way tickets),
visa, accommodation, food. And the Buyer also shall be in charge of salary for technician
( USD 150/day).
Locate us--1.5 hours drive from Shanghai Pudong Airport
FAQ:
-What's the steady speed of the paper cup machine?
-- When we talk about the speed of paper cup machine, there is a max. speed and a steady speed. Shunda paper cup machine has a max speed of 180 pcs/min.If running the machine within 24 hours a day, 30 days a month, the steady speed could be 120-130 pcs/min.
