| Place of Origin: | China |
|---|---|
| Brand Name: | Shunda |
| Certification: | ISO9001 CE |
| Model Number: | SMD-80D |
| Minimum Order Quantity: | 1 set doner box making machine |
| Price: | negotiable |
| Packaging Details: | standard seeworthy package |
| Delivery Time: | 30-40 working days after confirm bowl size |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 20 sets per month |
| Product: | Doner Box Making Machine | Speed: | 70-80 Pcs/min |
|---|---|---|---|
| CONFIGURATION: | ULTRASONIC&HOT AIR | Standard: | CE |
| OUTPUT: | 380V/220V,60HZ | Air Consumption: | 0.5Mpa |
| Weight: | 3.4Ton | Demiension: | 2500*1800*1700mm |
| Top Diameter: | 175 Mm(max) | Bottom Diameter: | 95 Mm(max) |
| Height: | 130 Mm(max) | Raw Material: | 135-450 GRAM |
| High Light: | Asian Pasta Food Box Making Machine,Open Cam System Box Making Machine,80 Pcs/Min Food Box Making Machine |
||

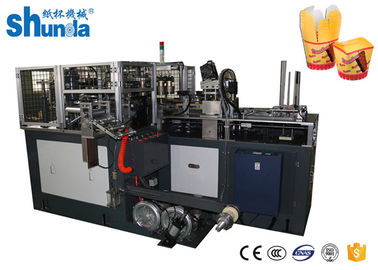

Asian Pasta Take Away Food Noodle Box Making Machine WIth Open Cam System
Specification:
|
MODEL |
SMD-80D |
|
SPEED |
70-80PCS/MIN |
|
MAX CUP SIZE |
175(Top diameter) * 95 (Top diameter)*130 MM(Height) |
|
MATERIAL |
135-450GRAM |
|
CONFIGURATION |
ULTRASONIC&HOT AIR |
|
OUTPUT |
380V/220V,60HZ |
|
AIR COMPRESSOR |
0.4 M³/Min |
|
NET WEIGHT |
3.4 TONS |
|
MACHINE SIZE |
2500 ×1800 ×1700 MM |
|
COUNTER SIZE |
900 ×900 ×1760 MM |
Advantages:
Applications:
donerbox,asianbox,chinesesfood box,foodbox, take away doner kebad box...
Working principles:
1. Square paper pieces be printed(use offset printer)and cut(use die-cutting machine)in
advance, becomes cup-fan-wall-papers to make cup body.
2. Paper sender delivers the cup-fan-wall-papers to molds, sealing the body.
3. The cup bottom paper (reel) automatic feed to the bottom cut parts, be cut into round
pieces and sent to molds with the sealed cup body.
4. Pre heating the cup bottom, bottom heating, curlinging the top edge.
5. Sealing the bottom with body.
6. Knurling the cup bottom.
7. Discharging finished cups automatically from molds. Sending to collector and be collected
and piled and counted automatically
About Us:
Haining Chengda Paper Cup Machinery CO.,Ltd is established in year 1998, as Chinese earliest
paper cup machine manufacturer--design,research,manufacture,sell and serve
We have been supported hundreds of paper cup factories around the globe,especially enjoy
high reputation in USA,Finland,Algeria,etc.
We are always holding the faith of “quality wins market,honest wins trust”.And in the future
we should increase technology creation,focus on improving manufacturing skills and lead trend of paper cup machine industry.
Exhibition Show:
FAQ:
1. Is your company a factory or trading company?
Our company is a factory, also have export license.
2. Where is your factory located? How can I visit there?
Our factory is located in haining City, Zhejiang Province, China,
about 1.5 hours by car from Shanghai .All our clients, from home or abroad,
are warmly welcome to visit our company !
3. Will you teach how to use the machine?
Yes, engineers available to service machinery overseas or learn in our factory.
4. How about the shipment?
Normally 30-40 days after confirming order, detail delivery date should be decided according to
production season and order quantity.
5. Which payment term do you accept?
T/T, L/C
6. Do you have warranty?
1 year for electronic parts from shipment date
3 years for mechenical parts from shipment date
