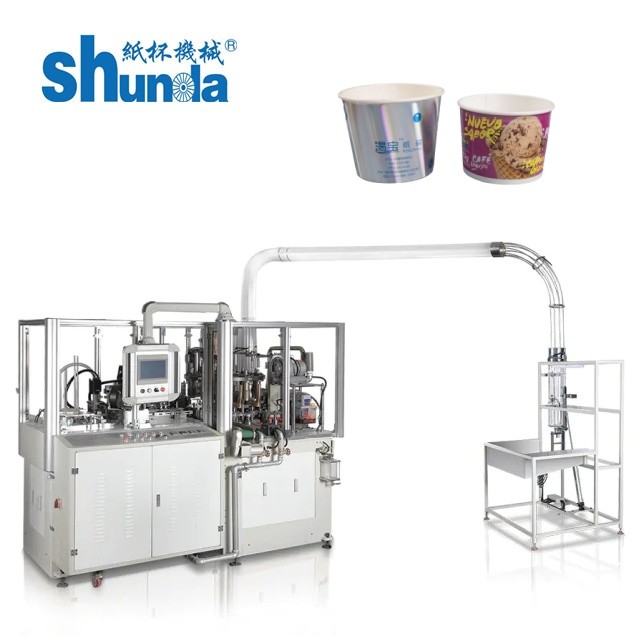

Durable Automatic Paper Bowl Forming Machine In High Speed With Inspection System

Basic Information
Place of Origin: China
Brand Name: Shunda
Certification: CE
Model Number: SMD-80B
Minimum Order Quantity: 1 Set
Packaging Details: Wooden Plate for Paper Bowl Machine
Delivery Time: 30 Working Days
Payment Terms: L/C, T/T, Western Union
Detail Information
Speed: 70-90 Pcs/Min Material: Single PE Coated Paper
Cup Size: Custom Output: 380V/220V,60HZ
Configuration: Ultrasonic Gram: 135-450gsm
Color: White Inspection: Option
Feeder: Option Machine Size: 2500*1800*1700
Highlight:

90 Pcs/Min fully automatic paper cup making machine

,

Inspection System Paper Cup Manufacturing Machine

,

Inspection Paper Bowl Forming Machine


Product Description

Durable Automatic Paper Bowl Forming Machine In High Speed With Inspection System





Specification:

MODEL SMD-80B
SPEED 70-90PCS/MIN
MAX CUP SIZE 150(Top diameter) * 110 (Top diameter)*135 MM(Height)
MATERIAL 135-450GRAM
CONFIGURATION ULTRASONIC&HOT AIR
OUTPUT 380V/220V,60HZ
AIR COMPRESSOR 0.4M³/Min
NET WEIGHT 3.4 TONS
MACHINE SIZE 2500 ×1800 ×1700 MM
COUNTER SIZE 900 ×900 ×1760 MM




Description:

SMD-80B is a Paper Bowl Making machine,which is designed By HAINING CHENGDA MACHINERY CO.,LTD,
It can produce both single and Double PE coated paper Bowls. As technology development, it will take place of the formally machines in market day by day.

Durable Automatic Paper Bowl Forming Machine In High Speed With Inspection System 0



Features:

1.2 sets of original imported hot air system Leister guarantee the stability of heating.



Durable Automatic Paper Bowl Forming Machine In High Speed With Inspection System 1



2.Ultrasonic seal the paper cup body,can produce both single and double PE coated paper.



Durable Automatic Paper Bowl Forming Machine In High Speed With Inspection System 2



3.Panasonic photoelectricity checking the every part and report.



Durable Automatic Paper Bowl Forming Machine In High Speed With Inspection System 3



4.Open cylindrical can divide locating,heigh precision.



5.Automatically Oil lubrication system .



6.Gear work, long life for machinery



7.Inspection system by camera



8.Photoelectricity to track every step




Applications:
Paper bowl, soup bowl, noodle bowl...

Durable Automatic Paper Bowl Forming Machine In High Speed With Inspection System 4




About Us:


Haining Chengda Paper Cup Machinery CO.,Ltd is established in year 1998,as Chinese earliest
paper cup machine manufacturer--design,research,manufacture,sell and serve , we have developed,
matured and specialized in machine types as below,

--Middle speed paper bowl machine SMD-80B 70-80cups/min

--Middle speed double wall paper cup machine SMD-80A 70-80cups/min

--High speed paper cup machine SMD-90 100-120cups/min

With decade years of technology accumulation,advanced manufacturing skills and thoughtful after-sale
services, Chengda(Shunda) Paper Cup Machinery CO., Ltd has self-supported import and export right
and goes though CCC and CNAS certificates,also get CE and ISO9001 certified.




Exhibition Show:

High Speed Automatic Paper Bowl Making Machine 6-22pz 80 bowls per minute






QC Team:



A QC team with more than 10 professional and technical personnel. To ensure 100% products checking.Material: Strictly control of material using, meet international requested standards.Semi-finished products inspection: Product inspection before 100% finished.Production line test: With work team or data

engineer who will inspect machines and lines at fixed period.Finished Product Inspection: Quality and

property test before products are packed and loaded.





After service:



1  The CD and service&support guide booklet will be sent with machine to guide the installation process          works,adjust the whole machine,production,avoid or solve the problem which the buyer will face.
2. Test run of the machine&training:
    We will adjust the machine well for one week before the deliverying,ensure the machine has the perfect     performace!
3. We can dispatch technologists to buyer’s factory,guiding installation,adjustment for a period,the buyer       incharge of the salary, traffice fee,boarding and lodging, communication.
4.Training of buyer in China:
    We supply the free training of buyer,the training won’t stop until the buyer control the whole lesson!The     cost of air ticket,boarding and lodging should provided by buyer
5. We supply the consumable spare parts for free for two years use





FAQ:



1. Q: Is your company a factory or trading company?

    A: Our company is a factory.



2. Q:Where is your factory located? How can I visit there?

    A: Our factory is located in haining City, Zhejiang Province, China, about 1.5 hours by car from Shanghai .All our clients, from home or abroad, are warmly welcome to visit our company !



3. Q: Which kind of certicate do you have ?

    A: We Have CE ,ISO:9000 certificates.
