Automatic High Speed Stackable Paper Lid Machine For Paper Cup With Pe/Pla Paper
Key Attributes
Product Summary
Automatic High Speed Stackable Paper Lid Machine For Paper Cup With Pe/Pla Paper Technical Parameters Model PLM-80 Speed 85-95pcs/min Lid size diameter:max in 100 mm height: 15 in mini Raw material 135-450 gsm Configuration ultrasonic Output 12 kw, 220/380v, 50/60 hz Air compressor 1.2m3/min, 0.4 ...
Product Details
Pla automatic paper cup making machine
,High Speed Stackable Paper Lid Machine
,Stackable Paper Lid Forming Machine

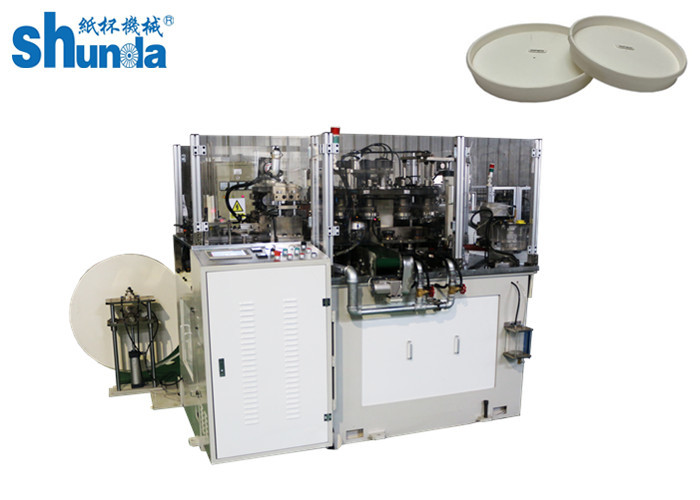

Automatic High Speed Stackable Paper Lid Machine For Paper Cup With Pe/Pla Paper
Technical Parameters
| Model | PLM-80 |
| Speed | 85-95pcs/min |
| Lid size |
diameter:max in 100 mm height: 15 in mini |
| Raw material | 135-450 gsm |
| Configuration | ultrasonic |
| Output | 12 kw, 220/380v, 50/60 hz |
| Air compressor | 1.2m3/min, 0.4 MPA |
| Net weight | 3400 kgs |
| Dimension of machine | 2500*1800*1700 mm |
Main Features
Open cylindrical cam and gear drive system
- make running more stable
- high precision
- long life for machinery.
Oil Lubrication System
- automatic spray engine oil to gears, chains
- less human maintaince
- oil can be recyced used
- clean and change oil half a year
PLC control Panel
- simple and efficient control panel, mady by MITSUBISHI.
- problems show in PLC display screen, make work more intelligent.
Photoelectric
- panasonic Photoelectricity sensor to track every step.
- auto alarm when paper fan go short
- auto stop when multi paper fans devlier
- auto paper fan track and deliver
...
Lid Body Sealing
- ultrasonic sealing for lid body, ensure machine can running high speed for single and double pe coated paper.
About Us:
1. Q: Is your company a factory or trading company?
A: Our company is a factory.
2. Q: How does your factory do regarding quality control?
A: Quality is priority. Shunda people always attach great importance to quality controlling from the very beginning to the very end: 1). All raw material we used are environmental-friendly; 2). Skilful workers care every details in handling the producing and packing processes; 3). Quality Control Department specially responsible for quality checking in each process.
3.Q: Do you have Guiding Box or CD video for clients?
A: Yes,we have,we will send guiding box with CD together to clients.
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Our QC TEAM
A QC team with more than 10 professional and technical personnel. To ensure 100% products checking.
Material: Strictly control of material using, meet international requested standards.
Semi-finished products inspection: Product inspection before 100% finished.
Production line test: With work team or data engineer who will inspect machines and lines at fixed period.
Finished Product Inspection: Quality and property test before products are packed and loaded.
