Industrial Double Wall Corrugated Paper Cup Machine With Low Energy Waste

China Industrial Double Wall Corrugated Paper Cup Machine With Low Energy Waste supplier
Industrial Double Wall Corrugated Paper Cup Machine With Low Energy Waste supplier Industrial Double Wall Corrugated Paper Cup Machine With Low Energy Waste supplier Industrial Double Wall Corrugated Paper Cup Machine With Low Energy Waste supplier Industrial Double Wall Corrugated Paper Cup Machine With Low Energy Waste supplier Industrial Double Wall Corrugated Paper Cup Machine With Low Energy Waste supplier

Large Image :  Industrial Double Wall Corrugated Paper Cup Machine With Low Energy Waste

Product Details:

Place of Origin: China
Brand Name: Shunda
Certification: CE,ISO9001
Model Number: 80A

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: negotiable
Packaging Details: Seaworthy and suitable for bumpy roads. Strong wooden box and firm plate
Delivery Time: 21 work days
Payment Terms: Western Union, , T/T, L/C
Supply Ability: 18 sets per Month
Contact Now
Detailed Product Description
Capacity: 90-100 Cups/min Sealing Pattern: Evergreen/Genuode Ultrasonic System
Waster Collecting Pattern: Automatic Cutting System Paper Fan: Ripple/Plain/Hollow
Paper Fan Weight Range: 135g--450g Colors: As Per Requirements
Packing Size: 2.6x1.9x1.8 Meter Packing Weight: 3000 Kg
Voltage&frequency: As Per Local Requirement Air Compressor: 0.45 Mpa
Output: 11Kw

Industrial Double Wall Corrugated Paper Cup Machine With Low Energy Waste​

Technical Data:



MODELSMD-80A Double Wall PAPER CUP MACHINE
Speed90-100 PCS/MIN
Cup size Range6-22 oz
MaterialSingle and Double PE coated paper
Paper request Gram135-450GSM(single and double PE coated paper)
Heating systemHot air system (from Switzerland)
Output380V/220V 16 KW,50HZ, Three Phase four wire
Air compressor0.45 M³/Min
Net weight3 TONS
Machinery Size2500 ×1800 ×1700 MM

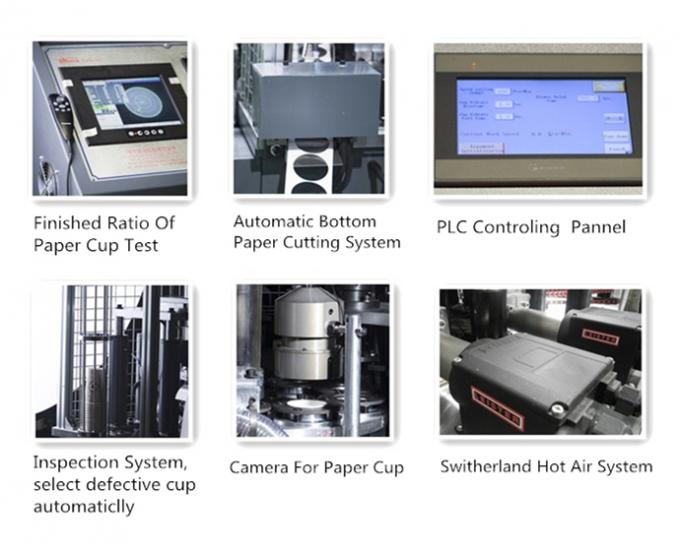

Advantages:
Industrial Double Wall Corrugated Paper Cup Machine With Low Energy Waste
1.It has 2 sets of original imported hot air system Leister guarantee the stability of heating.
2.Ultrasonic seal the paper cup body,can produce both single and double PE coated paper.
3.Open cylindrical can divide locating,heigh precision.
4.Automatically Oil lubrication system .
5.Servo motor control the gap of the bottom-paper within 0.1mm.
6.Gear and open cylindrical promote the stability and speed.

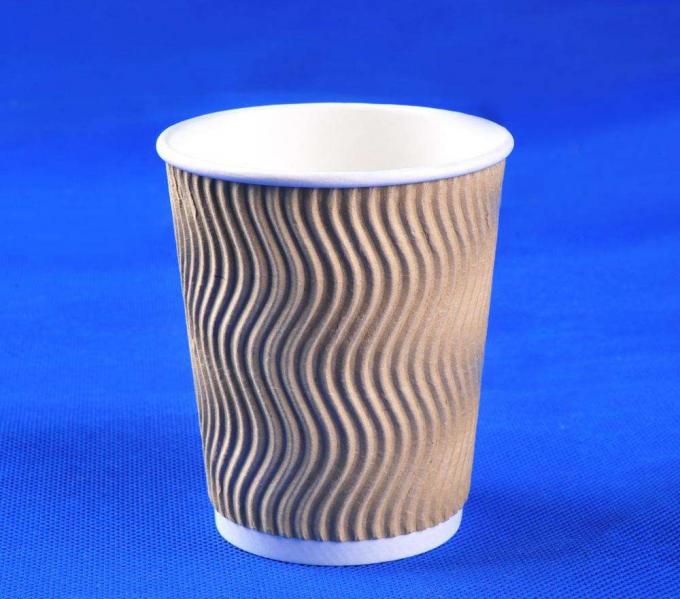

Finished products:
Coffee or Tea Shop Use Paper Cups Double Wall Corrugated Paper Cup Making Machine High Speed

Output:

Normal Running Speed90 pcs/min50 pcs/min40 pcs
1 Day(12 Hours)90pcs*60min*12hours=64800 pcs50pcs*60min*12hours=36000 pcs28800pcs
1 Week (5 Days)64800pcs*5days=324000pcs36000pcs*5days=180000pcs144000pcs
1 Mouth(22 Days)64800pcs*22days=1425600pcs360000pcs*22days=792000pcs633600pcs


You can create 633600 piece paper cup more than normal speed machine as profit each mouth


About us:

Haining Chengda Paper Cup Machinery CO.,Ltd is established in year 1999,as Chinese earliest
paper cup machine manufacturer--design,research,manufacture,sell and serve , we have developed,
matured and specialized in machine types as below,
--Normal speed paper cup machine ZBJ-9A ZBJ-12A 45-50cups/min
--Middle speed paper bowl machine SMD-80B 70-80cups/min
--Middle speed double wall paper cup machine SMD-80A 70-80cups/min
--High speed paper cup machine SMD-90 100-120cups/min

With decade years of technology accumulation,advanced manufacturing skills and thoughtful after-sale
services, Chengda(Shunda) Paper Cup Machinery CO., Ltd has self-supported import and export right
and goes though CCC and CNAS certificates,also get CE and ISO9001 certified.

We have been supported hundreds of paper cup factories around the globe,especially enjoy
high reputation in USA,Finland,Algeria,etc.

We are always holding the faith of “quality wins market,honest wins trust”.And in the future
we should increase technology creation,focus on improving manufacturing skills and lead trend of paper cup machine industry.

FAQ:
1. Q: Is your company a factory or trading company?
A: Our company is a factory.

2. Q:Where is your factory located? How can I visit there?
A:Our factory is located in haining City, Zhejiang Province, China, about 1.5 hours by car from Shanghai .All our clients, from home or abroad, are warmly welcome to visit our company !

3. Q:How does your factory do regarding quality control?
A:We hold firm faith that quality comes first,and promise 3 YEARS warranty.
    Because our debuggers test and adjust every machine for 1 week before packing and shipping out of workshop, no compromises on quality.


4. we can dispatch technologists to buyer's factory,guiding installation,ajustment for a
period,the buyer incharge of the salary,traffic fee,boarding and lodging,communication and each day 100usd living allowances.

5. we supply the free training of buyer,the training won't stop until the buyer control the whole lesson!

6.we supply the consumable spare parts for frees for three year use.
