High Speed 100 cups per minute Automatic Double Wall Paper Cup Making Machine For Coffee Cups

China High Speed 100 cups per minute Automatic Double Wall Paper Cup Making Machine For Coffee Cups supplier
High Speed 100 cups per minute Automatic Double Wall Paper Cup Making Machine For Coffee Cups supplier High Speed 100 cups per minute Automatic Double Wall Paper Cup Making Machine For Coffee Cups supplier High Speed 100 cups per minute Automatic Double Wall Paper Cup Making Machine For Coffee Cups supplier High Speed 100 cups per minute Automatic Double Wall Paper Cup Making Machine For Coffee Cups supplier High Speed 100 cups per minute Automatic Double Wall Paper Cup Making Machine For Coffee Cups supplier High Speed 100 cups per minute Automatic Double Wall Paper Cup Making Machine For Coffee Cups supplier

Large Image :  High Speed 100 cups per minute Automatic Double Wall Paper Cup Making Machine For Coffee Cups

Product Details:

Place of Origin: China
Brand Name: Shunda
Certification: CE,ISO9001
Model Number: 80A

Payment & Shipping Terms:

Minimum Order Quantity: 1 set double wall paper cup machine
Price: negotiable
Packaging Details: Seaworthy and suitable for bumpy roads. Strong wooden box and firm plate
Delivery Time: 21 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 18 sets per Month
Contact Now
Detailed Product Description
Speed: 80-100 Cups/min Cup Size: 6-22OZ
Raw Material: 135-450 GRAM Configuration: ULTRASONIC
Output: 10KW,380V/220V,60HZ/50HZ Air Compressor: 0.4 M³/Min 0.5MPA
Net Weight: 3.0 TONS Dimension Of Machine: 2500×1800 ×1700 MM
Dimension Of Cup Collector: 900 ×900 ×1760 MM Colors: As Per Requirements


High Speed 100 cups per minute Automatic Double Wall Paper Cup Making Machine For Coffee Cups



Technical Data:



MODEL SMD-80A Double Wall PAPER CUP MACHINE
Speed 80-100 PCS/MIN
Cup size Range 6-22 oz
Material Single and Double PE coated paper
Paper request Gram 135-450GSM(single and double PE coated paper)
Heating system Hot air system (from Switzerland)
Output 380V/220V 10 KW,50HZ, Three Phase four wire
Air compressor 0.4 M³/Min
Net weight 3 TONS
Machinery Size 2500 ×1800 ×1700 MM




Advantages:

1.It has 2 sets of original imported hot air system Leister guarantee the stability of heating.


2.Ultrasonic seal the paper cup body,can produce both single and double PE coated paper.

High Speed 100 cups per minute Automatic Double Wall Paper Cup Making Machine For Coffee Cups


3.Open cylindrical can divide locating,heigh precision.

High Speed 100 cups per minute Automatic Double Wall Paper Cup Making Machine For Coffee Cups


4.Automatically Oil lubrication system .


5.Servo motor control the gap of the bottom-paper within 0.1mm.

High Speed 100 cups per minute Automatic Double Wall Paper Cup Making Machine For Coffee Cups


6.Gear and open cylindrical promote the stability and speed.

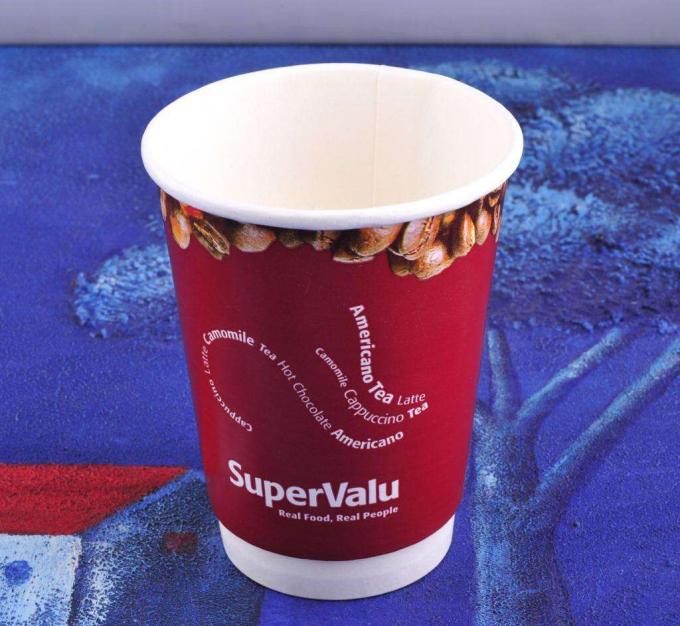

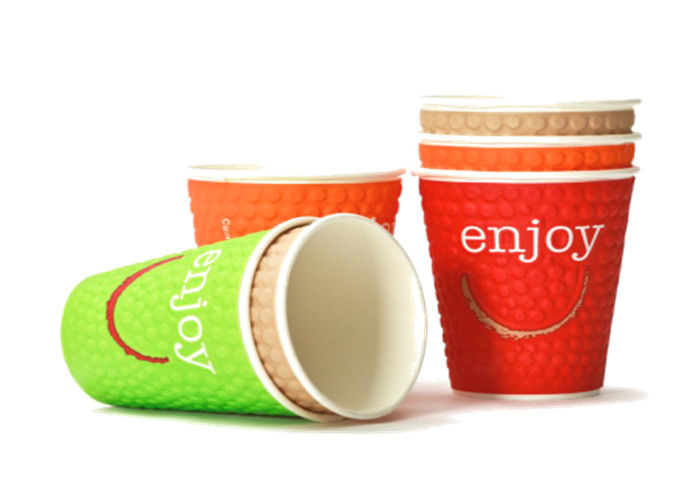

Finished products:
High Speed 100 cups per minute Automatic Double Wall Paper Cup Making Machine For Coffee Cups



Output Count :


Normal Running Speed 90 pcs/min 50 pcs/min 40 pcs
1 Day(12 Hours) 90pcs*60min*12hours=64800 pcs 50pcs*60min*12hours=36000 pcs 28800pcs
1 Week (5 Days) 64800pcs*5days=324000pcs 36000pcs*5days=180000pcs 144000pcs
1 Mouth(22 Days) 64800pcs*22days=1425600pcs 360000pcs*22days=792000pcs 633600pcs



About us:

Haining Chengda Paper Cup Machinery CO.,Ltd is established in year 1998, as Chinese earliest paper cup machine manufacturer--design,research,manufacture,sell and serve , we have developed, matured and specialized in machine types as below,

--Middle speed paper bowl machine SMD-80B 70-80cups/min
--Middle speed double wall paper cup machine SMD-80A 80-100cups/min
--High speed paper cup machine SMD-90 100-120cups/min

With decade years of technology accumulation,advanced manufacturing skills and thoughtful after-sale services, Chengda(Shunda) Paper Cup Machinery CO., Ltd has self-supported import and export right and goes though CCC and CNAS certificates,also get CE and ISO9001 certified.

We have been supported hundreds of paper cup factories around the globe,especially enjoy high reputation in USA,Finland,Algeria,etc.

We are always holding the faith of “quality wins market,honest wins trust”.And in the future we should increase technology creation,focus on improving manufacturing skills and lead trend of paper cup machine industry.




FAQ:
1. Q: Is your company a factory or trading company?
A: Our company is a factory.

2. Q:Where is your factory located? How can I visit there?
A:Our factory is located in haining City, Zhejiang Province, China, about 1.5 hours by car from Shanghai. All our clients, from home or abroad, are warmly welcome to visit our company !

3. Q:How does your factory do regarding quality control?
A:We hold firm faith that quality comes first,and promise 3 YEARS warranty.
    Because our debuggers test and adjust every machine for 1 week before packing and shipping out of workshop, no compromises on quality.




After-sale Service:
1.warranty: 3 year
2.the guide booklet will be sent with machine to guide the installation process works,adjust the whole machine,production,avoide or solve the problem which the buyer will face.
3.we will adjust the machine well for one week before the delivery,ensure the machine has the perfect performance.
4.we can dispatch technologists to buyer's factory,guiding installation,ajustment for a
period,the buyer incharge of the salary,traffic fee,boarding and lodging,communication and each day 100usd living allowances.
5.we supply the free training of buyer,the training won't stop until the buyer control the whole lesson!
6.we supply the consumable spare parts for frees for three year use.
