| Place of Origin: | China |
|---|---|
| Brand Name: | Shunda |
| Certification: | FDA, ISO: 9000 |
| Model Number: | SMD-90 |
| Minimum Order Quantity: | 1 SET paper cup machine |
| Price: | negotiation |
| Packaging Details: | Export wood case for paper cup machine |
| Delivery Time: | 50 working days after received your payment |
| Payment Terms: | T/T or L/C |
| Supply Ability: | 30 SETS per month |
| Product Name: | High Speed Paper Cup Machine | Color: | Grey And White |
|---|---|---|---|
| Extra: | With Inspection System | Air Compressor: | 0.5 M³/Min |
| Speed: | 145 Pcs/min | Paper Thickness: | 135-450 Gsm |
| Heating System: | Hot Air System | Oil: | Oil Lubrication System |
| Counting: | Auotmatic | Cup Size: | As Required |
| High Light: | paper cups making machines,disposable cup making machine |
||

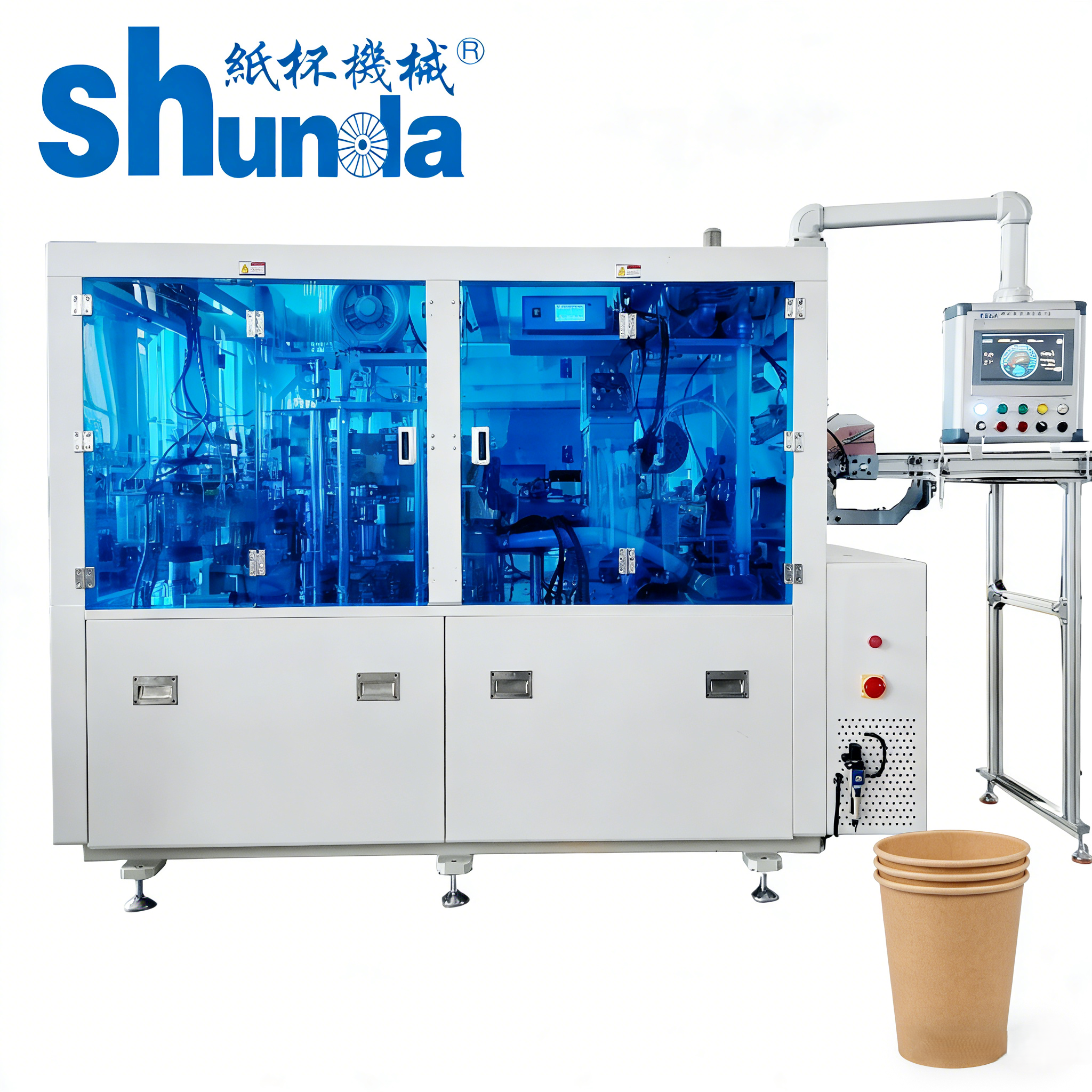

145 pcs/Min Hot Air Sealing High Speed Paper Cup / Bowl Machine For Cold Drink
Specifications:
MODEL | SMD-90 |
SPEED | 100-145 PCS/MIN |
CUP SIZE RANGE | Top Diameter: 60MM(Min)- 100 MM(Max) |
MATERIAL | 135-450GRAM |
CONFIGURATION | ULTRASONIC&HOT AIR |
OUTPUT | 380V/220V,60HZ |
AIR COMPRESSOR | 0.5 M³/Min |
NET WEIGHT | 4.5 TONS |
MACHINE SIZE | 2500 ×1800 ×1700 MM |
COUNTER SIZE | 900 ×900 ×1760 MM |
Description:
SMD-90 SHUNDA Machinery has successfully developed its own medium-speed automatic paper cup forming machine with complete intellectual property right to meet the increasing demands for paper cups (bowls) in the market. This equipment is an automatic multi-position machine that can finish the whole process of paper cup (bowl) making from automatic paper conveying, connecting, bottom making, heating, boarder knurling, oiling, rimming and collective packaging etc. With compact structure and strict action control, the machine specialized in production of paper cups (bowls) or conical food containers is precise, easy to operate, Intelligent, safe, stable and dependable.
Applications:
Produce for Coffee Cup, Tea Cup, Juice Cup, Ice Cream Cup etc
Whole Process
Maintaince Notice
1. Don't be in an environment of corrosive gas or smoke
2. Don't in the product may be splashed water, oil or use chemicals.
3. Please with stable voltage source power supply
4. make sure the power cord in good condition, so as not to cause fire or shock damage.
5. Instrument after electrify please don't touch input and output terminals, lest cause electric shock or instrument malfunction.
6. if you open the instrument shell, there may be a shock hazard.Because of power, has its internal capacitance charging, can keep certain voltage.
After Service
1. warranty:3 years
2. the guide booklet will be sent with machine to guide the installation process works,adjust the whole machine,production,avoide or solve the problem which the buyer will face.
3. we will adjust the machine well for one week before the delivery,ensure the machine has the perfect performance.
4. we can dispatch technologists to buyer's factory,guiding installation,ajustment for a period,the buyer incharge of the salary,traffic fee,boarding and lodging,communication and Daily salary.
5. we supply the free training of buyer,the training won't stop until the buyer control the whole leson!the cost of air ticket,boarding and lodging should provided by buyer.
6. we supply the consumable spare parts for free for 3 year use.
