Professional Automatic Paper Cup Collector For paper cup making machine

Basic Information
Place of Origin: China
Brand Name: Shunda
Certification: CE/SGS
Model Number: Cup collector
Minimum Order Quantity: 1 SET
Price: negotiation
Packaging Details: Export wood pallet
Delivery Time: 30 working days after received your payment
Payment Terms: T/T or L/C, , Western Union, MoneyGram
Supply Ability: 50 SETS per month
Detail Information
Product Name: Cup Collector Mode: Machine Accessory
Function: Collecting And Counting Cups Customise: Accept, As Per The Cups Size
Individual Or Not: Not Individual, Whole Set Machine With This Part Capacity: 2-3 Cups
Color: White Dishwasher Safe: Yes
Handle: Yes Heat Resistant: Yes
Lid: Yes Material: Plastic
Microwave Safe: No Number Of Compartments: 2
Number Of Layers: 1 Shape: Round
Size: Small Weight: Light
High Light:

paper Cup Collector

,

Automatic cup collector


Product Description

Professional Automatic Paper Cup Collector For paper cup making machine



Professional Automatic Paper Cup Collector For paper cup making machine 0

Professional Automatic Paper Cup Collector For paper cup making machine 1



Size 1100*840mm
Use range paper cup or bowl machine, whole set not individual
Control Automatic, can set numbers of cups





Specifications:

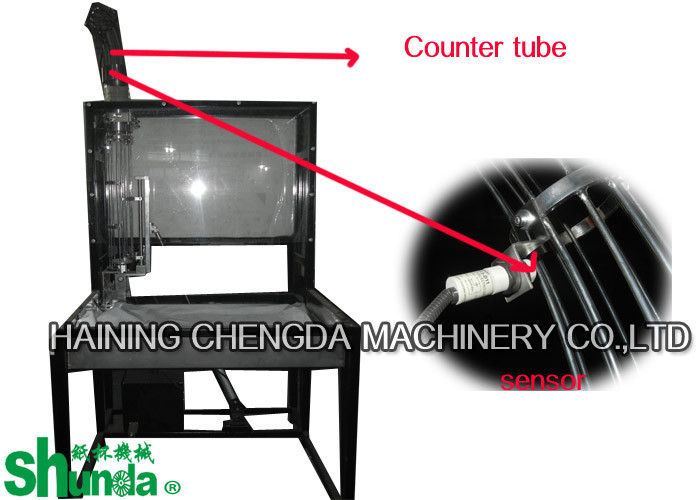

This is automatic counting and colleting system for High speed paper Cup machine.



Working with electrical and air.





Description:



With high quality optoelectronic sensor , counting the paper Cups for workers, and

Delivery the finished cup into counting table, save labour.





Applications:



Produce for Coffee Cup, Tea Cup, Juice Cup, Ice Cream Cup etc



To work with paper cup machine, double-wall paper cup machine, paper bowl machine , etc. Its size will be changed depend on the paper containers size.



It could also work with package machine after counted.



Professional Automatic Paper Cup Collector For paper cup making machine 2





Advantages:



Counting the paper Cup quantity automatically without worker ,save labor and time.



Our QC team:



A QC team with more than 10 professional and technical personnel. To ensure 100% products checking.
Material: Strictly control of material using, meet international requested standards.
Semi-finished products inspection: Product inspection before 100% finished.
Production line test: With work team or data engineer who will inspect machines and lines at fixed period.
Finished Product Inspection: Quality and property test before products are packed and loaded.



Package



Usually packed together with paper cup machine and other main machines. One 20 feet container could be filled in two main machines and two collectors.



Training Service



Chengda machinery supply training service for customers. Customer could send technicians to our factory or we send ours to customers factory after goods received.



Paper cup production course are as following:



Professional Automatic Paper Cup Collector For paper cup making machine 3



Specifications of paper cup machine.



Model SMD-90
Capacity pcs/min 100-120 90-110 80-100
Size Range mm(max) Top diameter:90
Bottom Diameter:80
Height:140
Top diameter:110
Bottom Diameter:80
Height:170
Top diameter:125
Bottom Diameter:100
Height:170
Suitable Paper Thickness gsm 135-450
Sealing Method   Ultrasonic and hot air system
Running Power KW 10 11 12
Air compressor   0.4m²/Min. 0.5MPa 0.5m²/Min. 0.5MPa 0.6m²/Min. 0.5MPa
Net weight Kgs 3400 3500 3600
Machine dimension mm 2500*1800*1700 2600*1800*1800 2700*1800*1800
Collector Dimension mm 900*900*1760 1000*900*1860 1100*900*1860





Paper cup machine with inspection machine and collector

Professional Automatic Paper Cup Collector For paper cup making machine 4
