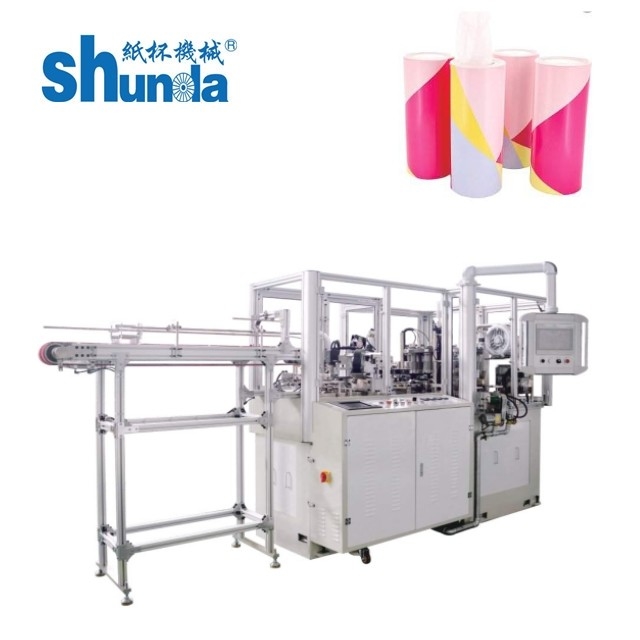

Portable Tissue Box / Paper Tube Forming Machine Max Cup Diameter 90mm

Basic Information
Place of Origin: China
Brand Name: Shunda
Certification: CE
Model Number: STD-80
Minimum Order Quantity: 1 set paper tube machine
Price: Negotiable
Packaging Details: Seaworthy and suitable for bumpy roads. Strong wooden box and firm plate
Delivery Time: within 30 working days
Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability: 10 sets per Month
Detail Information
Max Cup Diameter: 90mm Max Cup Height: 220mm
Speed: 70-80pcs/min Raw Material: 135-450gsm
Configuration: ULTRASONIC & HOT AIR SYSTEM Output: 12KW,380V/220V,60HZ/50HZ
Air Compressor: 0.4 M³/Min 0.5MPA Net Weight: 3.4 TONS
Machine Dimension: 2500 ×1800 ×1700 MM Dimension Of Cup Collector: 900 ×900 ×1760 MM
High Light:

round box making machine

,

tea cup manufacturing machine


Product Description



Portable Tissue Box / Paper Tube Forming Machine Max Cup Diameter 90mm





Product Description:



MODEL STD-80
Speed 70-80 PCS/MIN
Cup size Range Max Dia:90mm, Max Height:220mm
Paper request Gram 135-450GSM
Heating system Hot air system (from Switzerland)
Output 380V/220V 12 KW,50/60HZ, Three Phase four wire
Air compressor 0.4 M³/Min
Net weight 3.4 TONS
Machinery Size 2500 ×1800 ×1700 MM





Advantage:

1.It has 2 sets of original imported hot air system Leister guarantee the stability of heating.
2.Ultrasonic seal the paper cup body,can produce both single and double PE coated paper.
3.Open cylindrical can divide locating,heigh precision.
4.Automatically Oil lubrication system .
5.Servo motor control the gap of the bottom-paper within 0.1mm.

6.Gear and open cylindrical promote the stability and speed.


Detail pictures:

High Speed Automatic Paper Cup Machine , Paper Cup Forming Machine





Finished Products:

Portable Tissue Box / Paper Tube Forming Machine Max Cup Diameter 90mm 1





After sale service:
- The CD and service& support guide booklet will be sent with machine to guide the installation process works, adjust the whole machine,production,avoid or solve the problem which the buyer will face.
- We will adjust the machine well for one week before the delivery, ensure the machine has the perfect performance!
- We supply the free training of buyer, the training won’t stop until the buyer control the whole lesson. The cost of air ticket, boarding and lodging should provided by buyer.




Warranty:
- one year for electronic parts from the shipment date
- three years for mechnical parts from the shipment date







About us:
As the sole professional manufacturer on the paper cup machine,our factory established in 1999, located in Haining City, Zhejiang Province. We have rich experience on the paper cup machine& paper cups making ,providing high-quality, comprehensive and advanced technical products to our customers all over the word.In our factory there is a well-equipped in production lines and strong in technical force. We mainly produce three series of products. Our automatic paper cup machines and frequency-adjustable paper cup machines allow customers adopt 135g/sq.m to 300g/sq.m paper material to produce 2oz. to 9oz. single PE coated paper cups. Our high-gram material paper cup machine adopt super sonic and hot air for better heating,can accept 150g/sq.m to 450g/sq.m single and double PE coated paper to produce cups from 2oz. to 22oz.Also it suitable for the ice cream paper cups. To understand customers' requests and learn from our competitors is the principle that we always adhere to. Based on rich experience, we have improved our technologies through learning from our competitors in South Korea and Germany. A competitive Chinese price allows our facilities even more popular in both domestic and overseas markets. Now we sincerely welcome friends from all over the world to joint us and develop the huge potential disposable paper cup and container market in your countries. We are sure that there will be a promising future waiting for both you and us. We look forward to cooperating with you in the near future.




Trade Show:
In Algeria,the most popular cup size 7oz and 3 oz are designed by us.There we have almost  80% market.Large paper cup company ATP,MTP,GSTP,ITP... all are our clients.Our ZBJ-9A is  very famous in Algeria.We also have client in USA,Mexico,Brazil,Finland,libya,Iraq,Australia etc.

High Speed Automatic Paper Cup Machine , Paper Cup Forming Machine




FAQ:
1. Q: Is your company a factory or trading company?
A: Our company is a factory.


2. Q:Where is your factory located? How can I visit there?
A:Our factory is located in haining City, Zhejiang Province, China, about 1.5 hours by car from Shanghai. All our clients, from home or abroad, are warmly welcome to visit our company !


3. Q: How does your factory do regarding quality control?
A: Quality is priority. Shunda people always attach great importance to quality controlling from the very beginning to the very end:

1).All raw material we used are environmental-friendly;

2).Skilful workers care every details in handling the producing and packing processes;

3).Quality Control Department specially responsible for quality checking in each process.



Tag: paper cup making machinery,paper cups manufacturing machines
