High Efficiency Middle Speed Automatic Cup Making Machine 60HZ / 50HZ

Basic Information
Place of Origin: China
Brand Name: Shunda
Certification: CE201090502/CE
Model Number: SMD-90
Minimum Order Quantity: 1 set
Price: $ 450000-60000 USD/SET
Packaging Details: wooden package
Delivery Time: 30 working days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 15 set per mouth
Detail Information
Speed: 90-100 Pcs/min Material: Single Or Double PE Coated Paper
Color: As Customer Required Cup Range: < 20 Oz
Heating System: Hot Air System (from Switzerland) Air Compressor: 0.5M^3/min
Product Output: 380V,16 KW,50HZ, Three Phase Four Wire Machine Size: 2500×1800×1700mm
Counter Size: 900×900×1760 Mm Weight: 3.5 Tons
Paper Thickness: 135-450 Gsm Paper Type: Single & Double PE Coated Paper Fan
High Light:

fully automatic paper cup making machine

,

disposable cup making machine


Product Description

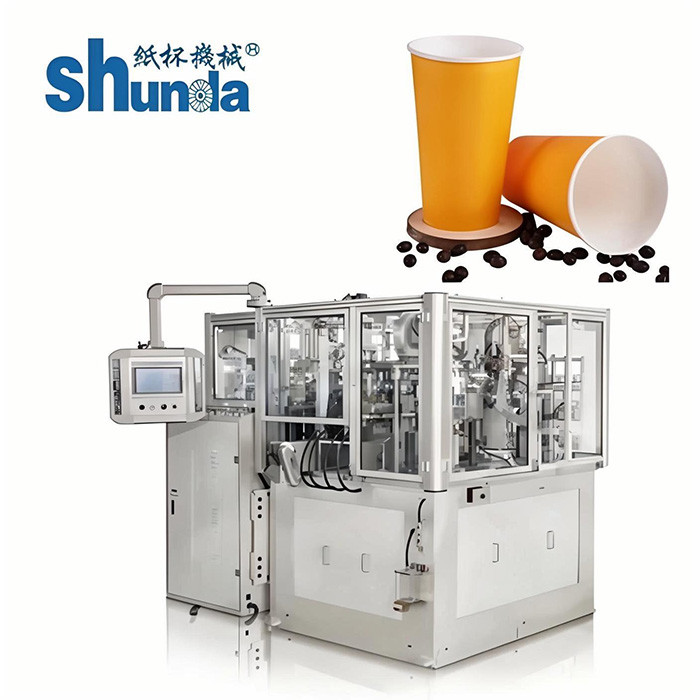

High Efficiency Middle Speed Automatic Cup Making Machine 60HZ / 50HZ



Shunda Automatic High Speed Paper Cup Machine



High Speed Paper Cup Making Machine is as automatic machine with multi-working station which has function of photocell detection failure alarm counter and the advantage of humanism design ,safer operation and easier maintenance



Based on the normal machine,through innovation and improvement. Overall stability and speed of production has been greatly improved .



It produces both one-side and two-side PE coated paper cup,paper bowl after running a whole procedure of automatic pre-printed -fan-shape-paper feeding ,two-step pre-heating,bowl-side-body.Sealing( ultrasonic wave ) silicone oil lubricating ( for top curling ) bottom punching ,two step bottom heating ,bottom pre-folding ,bottom knurling ,top curling and cup ( bowl ) discharging etc.



It is an ideal equipment of making both hot and cold drinks paper cups.



High Efficiency Middle Speed Automatic Cup Making Machine 60HZ / 50HZ 0



Technology Specification

Model SMD-90
MATERIAL SINGLE AND DOUBLE PE COATED PAPER
Paper cup size 2-16 OZ
Speed 90-100 PCS/MIN
Machine power 12KW
Output 380V/220V, 60HZ/50HZ,THREE PHASE FOUR WIRE
Working air source 0.4M3/MIN
Paper material 135-450 GRAM
Total weight 3.4 TONS
Overall dimension 25001800*1700 MM



Samples made by our automatic paper cup machine



High Efficiency Middle Speed Automatic Cup Making Machine 60HZ / 50HZ 1



Machine Running Video

http://www.youtube.com/watch?v=OX6v6k-0sLo&feature=youtu.be
