Professional High Speed Paper Cup Machine Ultrasonic And Hot Air System

China Professional High Speed Paper Cup Machine Ultrasonic And Hot Air System supplier
Professional High Speed Paper Cup Machine Ultrasonic And Hot Air System supplier Professional High Speed Paper Cup Machine Ultrasonic And Hot Air System supplier Professional High Speed Paper Cup Machine Ultrasonic And Hot Air System supplier Professional High Speed Paper Cup Machine Ultrasonic And Hot Air System supplier Professional High Speed Paper Cup Machine Ultrasonic And Hot Air System supplier Professional High Speed Paper Cup Machine Ultrasonic And Hot Air System supplier

Large Image :  Professional High Speed Paper Cup Machine Ultrasonic And Hot Air System

Product Details:

Place of Origin: China
Brand Name: Shunda
Certification: CE
Model Number: SMD-90

Payment & Shipping Terms:

Minimum Order Quantity: 1 set paper tube machine
Packaging Details: wooden case
Delivery Time: 35-45 working days after confirmed cup size and received deposit
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 20 sets/month
Contact Now
Detailed Product Description
Speed: 100-120pcs/min Material: 135-450gsm(single And Double PE Coated Paper )
Cup Size: 4-16oz Configuration: Ultrasonic&hot Air System
Output: 12KW,380V/220V,60HZ/50HZ Air Compressor: 0.4 M³/Min 0.5MPA
Net Weight: 3.4 TONS Dimension Of Machine: 2500×1800 ×1700 MM
Dimension Of Cup Collector: 900 ×900 ×1760 MM Color: As Per Requirement

Professional High Speed Paper Cup Machine Ultrasonic And Hot Air System



Specification



ModelSMD-90
Speed100-120pcs/min
Cup size Range4-16oz
MaterialSingle and double PE coated paper
Heating systemUltrasonic &hot air system
Output380V,12 KW ,60HZ, Three Phase four wire
Net weight3.4 TONS
Machinery Size2500 *1700*1600 MM
Paper request135gsm-450gsm
Warranty3 Years
Descriptionsmd-90 paper cup machine is a high gram paper cup shaping machine, it runs a whole procedure of the paper feeding, gluing, oiling, and bottom punching, heating, rolling, rounding, and tripping.It is an automatic machine you can control the speed according to the production!

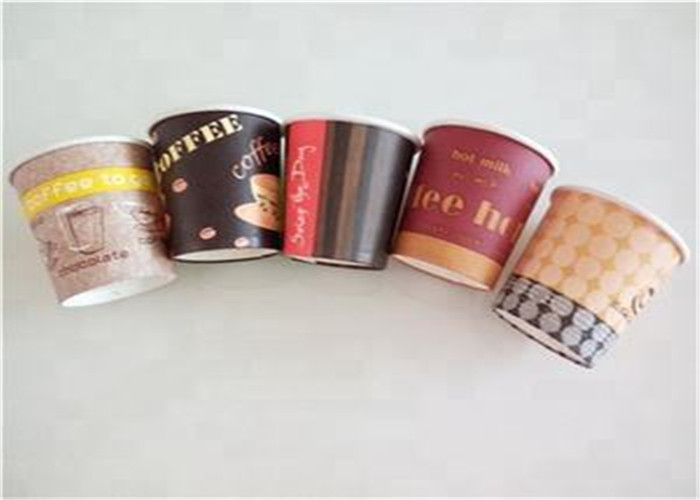

For a better cup body and bottom connection, it used ultrasonic and two hot air for heating, the heating phase into three steps, advanced technology allowed facility more safty both on itself and operator.It is an ideal equipment to make the paper cups for hot drink, cold drink, and ice cream paper cups.





Machine details



Open cylindrical cam: Our factory is the first one using two cam systems, this design more costly, but can let the top curling and bottom knurling more accuracy, stable and low noise. Cam adpots high strength Japan-SKD11 with quenching treatment,resistant to wear. Before set up on the machine, our factory will test running one week, to ensure each bearing at the suitable station.

Professional High Speed Paper Cup Machine Ultrasonic And Hot Air System



Hot air system and protect system: 2 set of hot air systems can decrease the rate of leakage. Our
factory using the whole set of Leister hot air system with protection system. And our system sets up on
the fixed plate, do not moving during production. Almost impossible to damage.
Also the only one have the protect system that hot parts will go down, keep the distance with paper
cup and cup mould when the machine stop.

Professional High Speed Paper Cup Machine Ultrasonic And Hot Air System



Inspection system(Option): Unique design. Our factory set up on final turn station,more stable than set up on flying tube. Do not need to buy extra inspection machine, less factory space needed. Inspection accuracy can be set up by self.





Professional High Speed Paper Cup Machine Ultrasonic And Hot Air System



Oil lubrication system: Adoptes forced lubrication system to ensure main driving oil supply regularly and reduce friction and prolong the machine life. The oil circuit adds a clear the oil and filtering system to clean the oil automaticly. Our factory is the first one to using double layer plate to avoid the scraps of paper into the machine's inside.


Professional High Speed Paper Cup Machine Ultrasonic And Hot Air System


About us

Haining Chengda Machinery Co.,LTd  estabilished in 1998, ship to more than 100 countries.Our company always abides by the business strategy of "high-quality products & reasonable price", the service concept of "showing respect to you & trying my best", and the professional spirit of ’’honesty, innovation, enthusiasm, sureness" to provide customers the best products and services.


After-sale service:

1.The CD and service&support guide booklet will be sent with machine to guide the installation process works,adjust the whole machine,production,avoid or solve the problem which the buyer will face.

2.We will adjust the machine well for one week before the delivery, ensure the machine has the perfect performance!

3.We can dispatch technologists to buyer’s factory, guiding installation, adjustment for a period, the buyer incharge of the salary, traffic fee,boarding and lodging, communication.Or you can come to our factory.


Trade Show

We have client in USA,Mexioco,Brazil,France,Iran,Algeria,Ethiopia,Oman,Thailand,Australia,,,,There are almost 80% market in
Algeria,MTP,ATP,GSTP,ITP,,,all our clients.In MTP has our more than 60 machines.




FAQ

1. Q: Is your company a factory or trading company?
A: Our company is a factory.

2. Q:Where is your factory located? How can I visit there?
A:Our factory is located in haining City, Zhejiang Province, China, about 1.5 hours by car from
Shanghai .All our clients, from home or abroad, are warmly welcome to visit our company !

3. Q:How does your factory do regarding quality control?
A:Quality is priority. Shunda people always attach great importance to quality controlling from the
 very beginning to the very end: 1).All raw material we used are environmental-friendly; 2).Skilful workers care every details in handling the producing and packing processes;
 3).Quality Control Department specially responsible for quality checking in each process.
