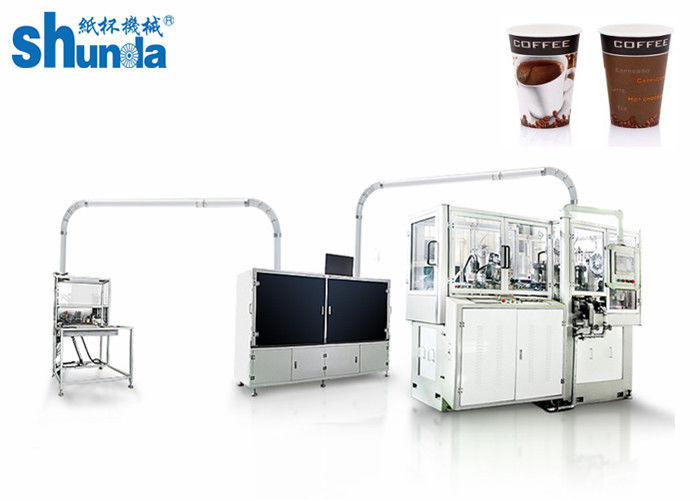

Shunda PLA High Speed Paper Cup Machines With Hot Air System

Basic Information
Place of Origin: China
Brand Name: Shunda
Certification: CE/SGS
Model Number: SMD-90
Minimum Order Quantity: 1 SET
Price: negotiation
Packaging Details: Export wood case
Delivery Time: 30 working days after confirmed cup size
Payment Terms: T/T or L/C, Western Union
Supply Ability: 50 SETS per month
Detail Information
Product Name: Paper Cup Forming Machine Configuration: Touch Screen,camera
Heat System: Ultrasounic Raw Material: PLA/PE Paper
Color: Blank Power: 380V
Speed: 150 Pcs/min In Max Running Speed: 100-120 Pcs/min
Machine: Paper Cup Machine Heating: Leister Hot Air System
Machine Size: 2500 ×1800 ×1700 MM Counter Size: 900 ×900 ×1760 MM
High Light:

Hot Air System Paper Cup Machine

,

PLA High Speed Paper Cup Machine

,

120pcs/min High Speed Paper Cup Machine


Product Description

Shunda High Speed Paper Cup Forming Machines With Inspection Camera System And Hot Air System



Automatic shunda SMD-90 paper bowl and cup machines





The characteristic of Shunda paper cup machine

1.High speed paper cup forming machine comes with two turnplate, opening cylinderial cam mechanism and gear transmission, longitudinal axis structures.

2. The whole machine adopts automatic oil lubrication system, which makes all mechanical parts working much more smoothly.

3. Bottom sealing by hot air devices, so that the machine is efficient, the hot air device is imported from Switzerland.

4.The new machine with higher working speed (150pcs/min in max) than standard paper cup machine, there is extra Switzerland Leister hot air device for the side sealing, so side sealing is done by both Hot air and Ultrasonic.

5. Cup side sealing by ultrasonic, Evergreen which is made in Taiwan.

6. Cup top curling has two steps, rotary curling and heating figuration, which makes the curling more stable and with better appearance (round and smooth).

7. The machine comes with PLC control system, sensor failure detecting and it stops working automatically if the machine has any problem, it can greatly improve operation safety and reducing labor cost. THE PLC, touch screen, Invertor, temperature controller and sensor is made in Korea.

8. More efficient and higher performance.

9. It is easy to make cups with different sizes by changing moulds.

10. With automatic cup delivery system and counter.



paper cup machine picture

Shunda PLA High Speed Paper Cup Machines With Hot Air System 1



Product Description

Details: paper cup machine

1. Gear Working, Longer life for machinery

Automatic shunda SMD-90 paper bowl and cup machines

2. Switzerland Hot air system Of "LEISTER"

Automatic shunda SMD-90 paper bowl and cup machines



3.Panasonic photoelectric tracking can check every part and report.Imported from Japan.

Automatic shunda SMD-90 paper bowl and cup machines

3.Servo motor control the gap of the bottom-paper within 0.1mm.

Automatic shunda SMD-90 paper bowl and cup machines



Product Description of paper cup machine

MODEL SMD-90
Speed 100-120PCS/MIN
Cup size Range <32oz
Material Single and Double PE coated paper
Paper request Gram 135-350GSM(single and double PE coated paper)
Heating system Hot air system (from Switzerland)
Output 380V/220V 16 KW,50HZ, Three Phase four wire
Air compressor 0.5 M³/Min
Net weight 3.5 TONS
Machinery Size 2500 ×1800 ×1700 MM
Counter Size 900 ×900 ×1760 MM



Paper cup machine making process

Automatic shunda SMD-90 paper bowl and cup machines

paper cups:

Automatic shunda SMD-90 paper bowl and cup machines

Company Information



Automatic shunda SMD-90 paper bowl and cup machines

About us

Haining Chengda Machinery Co.,LTd estabilished in 1998,already 18 years,ship to more than 100 countries.Our company always abides by the business strategy of "high-quality products & reasonable price", the service concept of "showing respect to you & trying my best", and the professional spirit of ’’honesty, innovation, enthusiasm, sureness" to provide customers the best products and services.







Our Services

1The CD and service&support guide booklet will be sent with machine to guide the installation process works,adjust the whole machine,production,avoid or solve the problem which the buyer will face.

2. Test run of the machine&training:

We will adjust the machine well for one week before the delivery, ensure the machine has the perfect performance!

We can dispatch technologists to buyer’s factory, guiding installation, adjustment for a period, the buyer incharge of the salary, traffic fee,boarding and lodging, communication.

3. Training of buyer in China:

We supply the free training of buyer,the training won’t stop until the buyer control the whole lesson! The cost of air ticket,boarding and lodging should provided by buyer

4. We supply the consumable spare parts for free for two years use





FAQ



1. Q: Is your company a factory or trading company?

A: Our company is a factory.



2. Q:Where is your factory located? How can I visit there?

A:Our factory is located in haining City, Zhejiang Province, China, about 1.5 hours by car from Shanghai .All our clients, from home or abroad, are warmly welcome to visit our company !



3. Q:How does your factory do regarding quality control?

A:Quality is priority. Shunda people always attach great importance to quality controlling from the very beginning to the very end:

1).All raw material we used are environmental-friendly;

2).Skilful workers care every details in handling the producing and packing processes;

3).Quality Control Department specially responsible for quality checking in each process.
