Environmental friendly Paper Cup Making Machine Professional Paper Tea Cup Machine with Electricity Heating System

Good quality Paper Tea Cup Making Machine for sales
Good quality Paper Tea Cup Making Machine for sales
I love their machinery, pretty good quality. Their service is Amazing ,Big kiss To jenny~~

—— Mr. Hang Seng

I deal only with Shunda. Other haven't goid quality,i check other machine. First time using, U will have problem.

—— Rafik

I'm Online Chat Now

Environmental friendly Paper Cup Making Machine Professional Paper Tea Cup Machine with Electricity Heating System

China Environmental friendly Paper Cup Making Machine Professional Paper Tea Cup Machine with Electricity Heating System supplier
Environmental friendly Paper Cup Making Machine Professional Paper Tea Cup Machine with Electricity Heating System supplier Environmental friendly Paper Cup Making Machine Professional Paper Tea Cup Machine with Electricity Heating System supplier Environmental friendly Paper Cup Making Machine Professional Paper Tea Cup Machine with Electricity Heating System supplier Environmental friendly Paper Cup Making Machine Professional Paper Tea Cup Machine with Electricity Heating System supplier

Large Image :  Environmental friendly Paper Cup Making Machine Professional Paper Tea Cup Machine with Electricity Heating System

Product Details:

Place of Origin: Haining city,Zhejiang province,China
Brand Name: shunda
Certification: CE
Model Number: ZBJ-9A

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Packaging Details: wooden case
Delivery Time: 23 days
Supply Ability: 30 sets/month
Contact Now
Detailed Product Description
Speed: 45-50pcs/min Material: 135-300gram(single And Double PE Coated Paper )
Cup Size: <12oz Output: 220/380v 50HZ 4.8KW



Environmental friendly Paper Cup Making Machine Professional Paper Tea Cup Machine with Electricity Heating System





1.Machine introduction of Paper Cup Making Machine Price



ZBJ-9A type single PE coated paper cup machine is the automatic environmental machine with multi-running

positions. This machine runs a whole procedure of paper feedint,cup-fan-wallsealing.oiling.botom-

punchint,hearing,rolling,rimming,rounding and trip Ping. It ia an idol equipment of producing dringking cup,ice-

cream cup and other food cone-shaping containers.This type paper cup machine mainly used to making one

side PE coated cups from 3oz to 12oz.



Shaped special specifications to plans to OEM





2.Technical parameters of Paper Cup Making Machine Price



Model

ZBJ-9A

Paper Cup Size

3-12oz (Adjustable Mold)

Paper Cup Diameter

50-110mm

Paper Cup Height

45-125mm

Speed of Cup Forming

45-50pcs/min

Paper Cup Material

Single PE coated paper (130-300gsm)

Limit of Temperature Control

0-400°C

Electric Heating Power

4kw

Main Motor Power

1.5kw

Rolling Motor Power

0.55kw

Power Supply

380v, 50Hz or 220v 60Hz, can do as customer's needs.

Machine Weight

1500kg

Dimension (L*W*H)

2700*1400*1700mm

Gross Weight

1600kg







Maintaince Notice



1.Don't be in an environment of corrosive gas or smoke

2. Don't in the product may be splashed water, oil or use chemicals.
3. Please with stable voltage source power supply
4. make sure the power cord in good condition, so as not to cause fire or shock damage.
5. Instrument after electrify please don't touch input and output terminals, lest cause electric shock or instrument malfunction.
6. if you open the instrument shell, there may be a shock hazard.Because of power, has its internal capacitance charging, can keep certain voltage.





Working principles:


1. Square paper pieces be printed(use offset printer)and cut(use die-cutting machine)in

advance, becomes cup-fan-wall-papers to make cup body.

2. Paper sender delivers the cup-fan-wall-papers to molds, sealing the body.

3. The cup bottom paper (reel) automatic feed to the bottom cut parts, be cut into round

pieces and sent to molds with the sealed cup body.

4. Pre heating the cup bottom, bottom heating, curlinging the top edge.

5. Sealing the bottom with body.

6. Knurling the cup bottom.

7. Discharging finished cups automatically from molds. Sending to collector and be collected

and piled and counted automatically

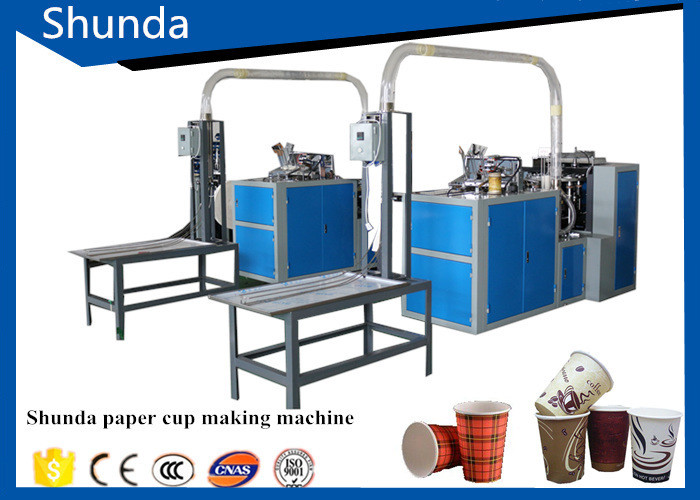

Picture of environmental friendly Paper Cup Making Machine



Environmental friendly Paper Cup Making Machine Professional Paper Tea Cup Machine with Electricity Heating System

Environmental friendly Paper Cup Making Machine Professional Paper Tea Cup Machine with Electricity Heating System
