Payment & Shipping Terms:
|SPEED:||100-120 Pcs/min(max 150pcs/min)||Cup Size:||4-16OZ|
|Raw Material:||135-450 GRAM||Configuration:||ULTRASONIC & HOT AIR SYSTEM|
|Output:||12KW,380V/220V,60HZ/50HZ||Air Compressor:||0.4 M³/Min 0.5MPA|
|Net Weight:||3.4 TONS||Dimension Of Machine:||2500×1800×1700 MM|
|Dimension Of Cup Collector:||900×900×1760 MM||Color:||As Per Requirement|

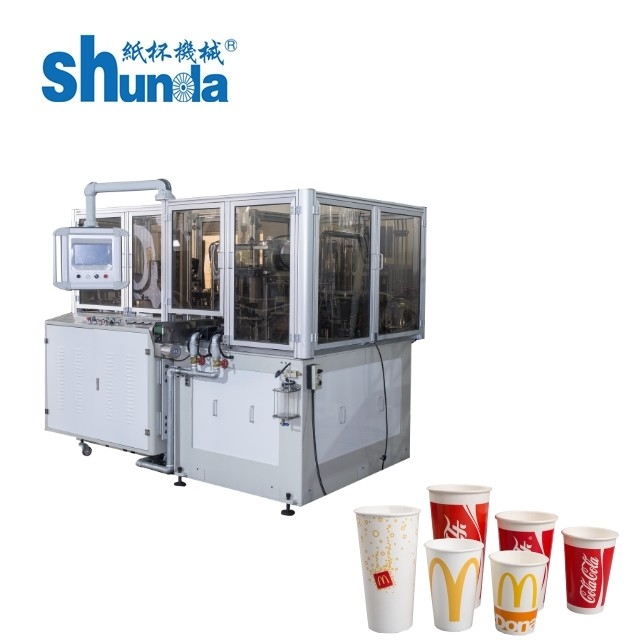

|MODEL||SMD-90 PAPER CUP MACHINE|
|Speed||100-120 PCS/MIN(max 150pcs/min)|
|Cup size Range||4-16oz|
|Material||Single and Double PE coated paper|
|Paper request Gram||135-450GSM(single and double PE coated paper)|
|Output||380V/220V 12 KW,50HZ, Three Phase four wire|
|Net weight||3. 4 TONS|
|Machinery Size||2500 ×1800 ×1700 MM|
|Counter Size||900 ×900 ×1760 MM|
Open cylindrical cam: Our factory is the first one using two cam systems, this design more costly, but can let the top curling and bottom knurling more accuracy, stable and low noise. Cam adpots high strength Japan-SKD11 with quenching treatment,resistant to wear. Before set up on the machine, our factory will test running one week, to ensure each bearing at the suitable station.
Hot air system and protect system: 2 set of hot air systems can decrease the rate of leakage. Our factory using the whole set of Leister hot air system with protection system. And our system sets up on the fixed plate, do not moving during production. Almost impossible to damage. Also the only one have the protect system that hot parts will go down, keep the distance with paper cup and cup mould when the machine stop.
Oil lubrication system: Adoptes forced lubrication system to ensure main driving oil supply regularly and reduce friction and prolong the machine life. The oil circuit adds a clear the oil and filtering system to clean the oil automaticly. Our factory is the first one to using double layer plate to avoid the scraps of paper into the machine's inside.
Servo motor: Service for bottom paper feeding. The feature of runs more stable and accuracy, reduce the waste of bottom paper. Servo motor is made in Japan by MITSUBISHI.
1.warranty: 3 year
2.the guide booklet will be sent with machine to guide the installation process works,adjust
the whole machine,production,avoide or solve the problem which the buyer will face.
3.we will adjust the machine well for one week before the delivery,ensure the machine has
the perfect performance.
4.we can dispatch technologists to buyer's factory,guiding installation,ajustment for a
period,the buyer incharge of the salary,traffic fee,boarding and lodging,communication and each day 100usd living allowances.
5.we supply the free training of buyer,the training won't stop until the buyer control the whole lesson!
6.we supply the consumable spare parts for frees for three year use.
1. Q: Is your company a factory or trading company?
A: Our company is a factory.
2. Q:Where is your factory located? How can I visit there?
A:Our factory is located in haining City, Zhejiang Province, China, about 1.5 hours by car from Shanghai .All our clients, from home or abroad, are warmly welcome to visit our company !
3. Q:How does your factory do regarding quality control?
A:Quality is priority. Shunda people always attach great importance to quality controlling from the very beginning to the very end:
1).All raw material we used are environmental-friendly;
2).Skilful workers care every details in handling the producing and packing processes;
3).Quality Control Department specially responsible for quality checking in each process.
