High Efficiency Fully Automatic Paper Cup Making Machine Three Phase

Good quality Paper Tea Cup Making Machine for sales
Good quality Paper Tea Cup Making Machine for sales
I love their machinery, pretty good quality. Their service is Amazing ,Big kiss To jenny~~

—— Mr. Hang Seng

I deal only with Shunda. Other haven't goid quality,i check other machine. First time using, U will have problem.

—— Rafik

I'm Online Chat Now

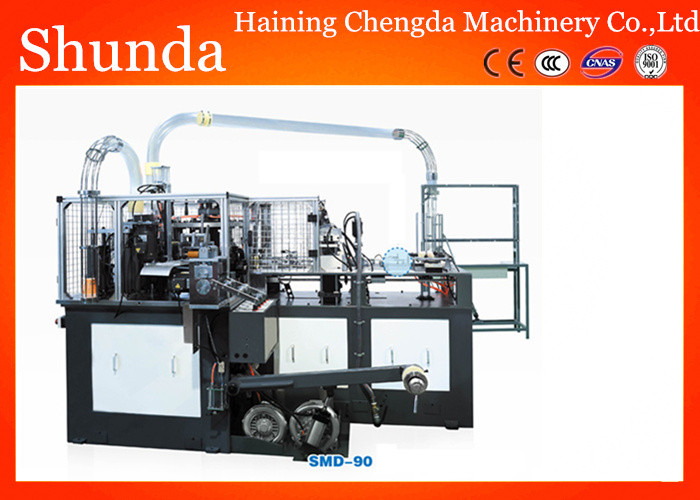

High Efficiency Fully Automatic Paper Cup Making Machine Three Phase

China High Efficiency Fully Automatic Paper Cup Making Machine Three Phase supplier
High Efficiency Fully Automatic Paper Cup Making Machine Three Phase supplier High Efficiency Fully Automatic Paper Cup Making Machine Three Phase supplier High Efficiency Fully Automatic Paper Cup Making Machine Three Phase supplier

Large Image :  High Efficiency Fully Automatic Paper Cup Making Machine Three Phase

Product Details:

Place of Origin: ZHEJIANG,CHINA
Brand Name: SHUNDA
Certification: CE201090502/CE
Model Number: SMD-90

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: $ 450000-60000 USD/SET
Packaging Details: wooden package
Delivery Time: 30 working days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 15 set per mouth
Contact Now
Detailed Product Description
Speed: 90-100 Pcs/min Material: Single Or Double PE Coated Paper
Color: Red Cup Range: < 16 Oz
Heating System: Hot Air System (from Switzerland) Air Compressor: 0.5M^3/min
Product Output: 380V,16 KW,50HZ, Three Phase Four Wire Machine Size: 2500×1800×1700mm
Counter Size: 900×900×1760 Mm Weight: 3.5 Tons

High Efficiency Fully Automatic Paper Cup Making Machine Three Phase





High Speed Paper Cup Making Machine is as automatic machine with multi-working station which has function of photocell detection failure alarm counter and the advantage of humanism design ,safer operation and easier maintenance



Based on the normal machine,through innovation and improvement. Overall stability and speed of production has been greatly improved .



It produces both one-side and two-side PE coated paper cup,paper bowl after running a whole procedure of automatic pre-printed -fan-shape-paper feeding ,two-step pre-heating,bowl-side-body.Sealing( ultrasonic wave ) silicone oil lubricating ( for top curling ) bottom punching ,two step bottom heating ,bottom pre-folding ,bottom knurling ,top curling and cup ( bowl ) discharging etc.



It is an ideal equipment of making both hot and cold drinks paper cups.

High Efficiency Fully Automatic Paper Cup Making Machine Three Phase



Technology Specification

Model SMD-90
MATERIAL SINGLE AND DOUBLE PE COATED PAPER
Paper cup size 2-16 OZ
Speed 90-100 PCS/MIN
Machine power 12KW
Output 380V/220V, 60HZ/50HZ,THREE PHASE FOUR WIRE
Working air source 0.4M3/MIN
Paper material 135-450 GRAM
Total weight 3.4 TONS
Overall dimension 2500*1800*1700 MM



Cup Samples made by our automatic paper cup machine

High Efficiency Fully Automatic Paper Cup Making Machine Three Phase

Machine Running Video

http://www.youtube.com/watch?v=OX6v6k-0sLo&feature=youtu.be



FAQ:

1.whats your product range?

Tea cups,coffee cups,ice cream cups,noodle bowl, KFC bowl etc.

2.What size can this machine make?

This machine can make paper cups from 2OZ-16OZ.

3.How can I do the paper cup

Solution 1:you can buy die cutting machine and printing machine from us.

Solution 2:you can buy die cutting machine and printing machine in your native.

Solution 3: you can buy teh shaped paper fan and bottom paper.

4.Are you a manufacturer?

Yes,We have been in making paper cup machine over 16 years.

5.Do you have stock product to sell?

We have little stock ,But most of our products are designed according to customers requirement.

6.What information should i let you know if i want to get a quotation?

 --Quantity

 --Whats the detailed size (top diameter,bottom diameter,and height)

 --Whats the paper sickness

 --It is usage

7.What about the delivery time?

Usually 30 working days,but will depend on your quantity and size.

8.what about the payment term ?

Mostly 30%T/T  in advanced,the rest need paid before shipping.

9.whats your advantages ?

--16 years experience:We have been in making paper cup machine for 16 years.

--Customers all over the world

--Certificate: CE certificate,ISO 9001

--Fast reply:Our team will reply you soon.

--After-sale service:We have a after sale department , service for your problems
