Ripple Double Wall Disposable Paper Products Machine , Paper Sleeve Making Machine

China Ripple Double Wall Disposable Paper Products Machine , Paper Sleeve Making Machine supplier

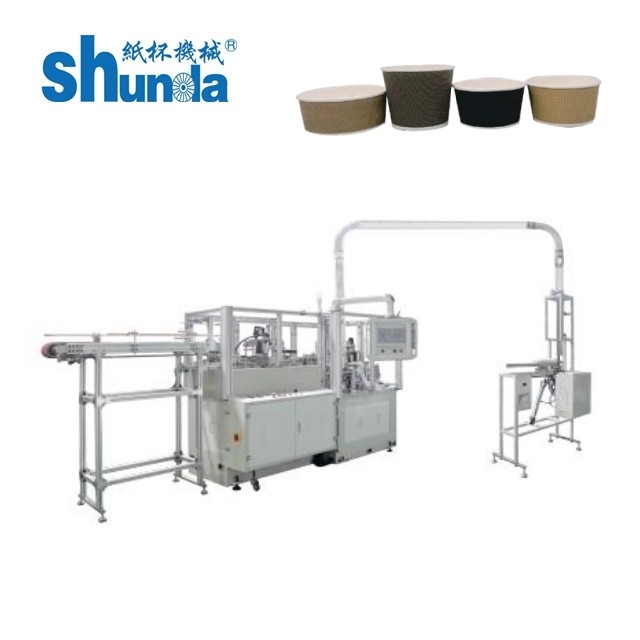

Large Image :  Ripple Double Wall Disposable Paper Products Machine , Paper Sleeve Making Machine

Product Details:

Place of Origin: ZHEJIANG,CHINA
Brand Name: SHUNDA
Certification: CE201090502/CE
Model Number: SHUNDA-80A

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: wooden package
Delivery Time: 30 working days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 15 set per mouth
Detailed Product Description
Speed: 70-80 Pcs/min Material: Single Or Double PE Coated Paper
Color: Red Cup Range: 2-22 Oz
Heating System: Hot Air System (from Switzerland) Air Compressor: 0.5M^3/min
Product Output: 380V,16 KW,50HZ, Three Phase Four Wire Machine Size: 2500×1800×1700mm
Counter Size: 900×900×1760 Mm Weight: 3 Tons

Ripple Double Wall Disposable Paper Products Machine , Paper Sleeve Making Machine





High speed double wall paper cup machine description

Paper Cup/Bowl Sleeve Forming & Wrapping Machine is an automatic equipment to make a second-wall sleeve over the inner-cup/bowl(cup/bowl finished by paper cup/bowl machine ), wear a sleeve around the paper cup/bowl .

It is the matching equipment of Paper Cup Machine , Paper bowl machine, which has the function as photocell detection, failure alarm, counting etc.

It makes double wall paper cup/bowl after running a whole procedure of automatic paper (fan-sleeve) feeding, sleeve-cone-body sealing (by ultrasonic wave), water-glue spraying (spray glue inside the cone-sleeve), cup/bowl feeding (absorb cup into the cone-sleeve), inserting and bonding sleeve to the cup, collecting with the function of photo electric detection, fault alarm, and count.

It is an ideal equipment of making two/double walls paper cups/bowls such as direct-sleeve cups, hollow-sleeve cups, rippled/corrugated-sleeve paper cups etc. The sleeve-wrapped paper cups are popular for hot drinks(tea, coffee etc ).



MODEL

SHUNDA-80A DOUBLE WALL PAPER CUP MACHINE



Speed

70-80 PCS/MIN



Cup size Range

2-22oz









Paper request Gram

135-450GSM(single and double PE coated paper)




Heating system

ULTRASONIC&HOT AIR



Output

380V/220V 16 KW,50HZ, Three Phase four wire




Air compressor

0.5 M³/Min



Net weight

3 TONS



Machinery Size

2500 ×1800 ×1700 MM



Counter Size

900 ×900 ×1760 MM







High speed double wall paper cup machine functions:

1.Hot Air pre heating before cup side welding (get fast speed and stable side welding),

2.Ultrasonic Press to welding the cup-side-wall,

3.Bottom welding by Hot Air ( available for both single and double PE coated paper cups),

4.Adopt Axis, Gears and cam to control the movement (fast speed and more reliable);

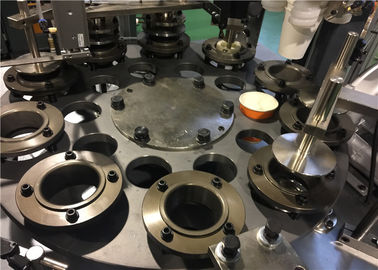

5.Single turn table (Easy maintenance);

6.Automatic Collection system (stock system, easy packing, I.E. every 50pcs count )

7.Automatic oil system, Easy Maintenance.

8.PLC Control system: computer control the machine running, automatic fault inspect and alarm .



Advantage of high speed paper cup machine



Steel Shaft

The hardness is φ 30, the normal one is φ25

Divided Box

Divided box can be 180mm

Speed Reducer

It is 1:30 100type, other company use 1:20 80 type.

Our 100 type speed reducer is bigger with stronger outputting

which makes which make machines more stability and work longer

Total Power

Smaller than other company machine, which saves a lot of electric

power

Free spare parts

Three year guarantee,will give spare parts with machine while packing (enough for 3 year using) with one year,all parts given for free



high speed paper cup machine working procedure:

Out-sleeve paper edge welding—cup body gluing-- finished inner blank cup down--double wall combined together and pressed to be strong--and then cup delivery.



Machine Technical

  • RIM ROLL

    Tightly rolled rim to optimise side wall rigidity, to ensure a good secure hand hold and perfect 'snap-on' lid fit.

  • INNER COATING

    Made from food grade PE (Polyethylene).

  • INNER WALL

    Made from PEFC accredited sustainably sourced paperboard.

  • OUTER COATING

    Made from food grade PE (Polyethylene), specially treated to create an insulating barrier.

  • OUTER 'DOUBLE WALL'

    The technically advanced construction produces a multi-layered cup, delivering the benefit of heat insulation to both the operator and consumer.

  • THE BASE

    Printed with the Benders traceability code.
