Durable High Speed Paper Cup Machine , Self - Lubrication Paper Cup Forming Machine

Good quality Paper Tea Cup Making Machine for sales
Good quality Paper Tea Cup Making Machine for sales
I love their machinery, pretty good quality. Their service is Amazing ,Big kiss To jenny~~

—— Mr. Hang Seng

I deal only with Shunda. Other haven't goid quality,i check other machine. First time using, U will have problem.

—— Rafik

I'm Online Chat Now

Durable High Speed Paper Cup Machine , Self - Lubrication Paper Cup Forming Machine

China Durable High Speed Paper Cup Machine , Self - Lubrication Paper Cup Forming Machine supplier
Durable High Speed Paper Cup Machine , Self - Lubrication Paper Cup Forming Machine supplier Durable High Speed Paper Cup Machine , Self - Lubrication Paper Cup Forming Machine supplier

Large Image :  Durable High Speed Paper Cup Machine , Self - Lubrication Paper Cup Forming Machine

Product Details:

Place of Origin: ZHEJIANG,CHINA
Brand Name: SHUNDA
Certification: CE201090502/CE
Model Number: SMD-90

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: $ 450000-60000 USD/SET
Packaging Details: wooden package
Delivery Time: 30 working days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 15 set per mouth
Contact Now
Detailed Product Description
Speed: 90-100 Pcs/min Material: Single Or Double PE Coated Paper
Color: Red Cup Range: < 16 Oz
Heating System: Hot Air System (from Switzerland) Air Compressor: 0.5M^3/min
Product Output: 380V,16 KW,50HZ, Three Phase Four Wire Machine Size: 2500×1800×1700mm
Counter Size: 900×900×1760 Mm Weight: 3.5 Tons

Durable High Speed Paper Cup Machine , Self - Lubrication Paper Cup Forming Machine

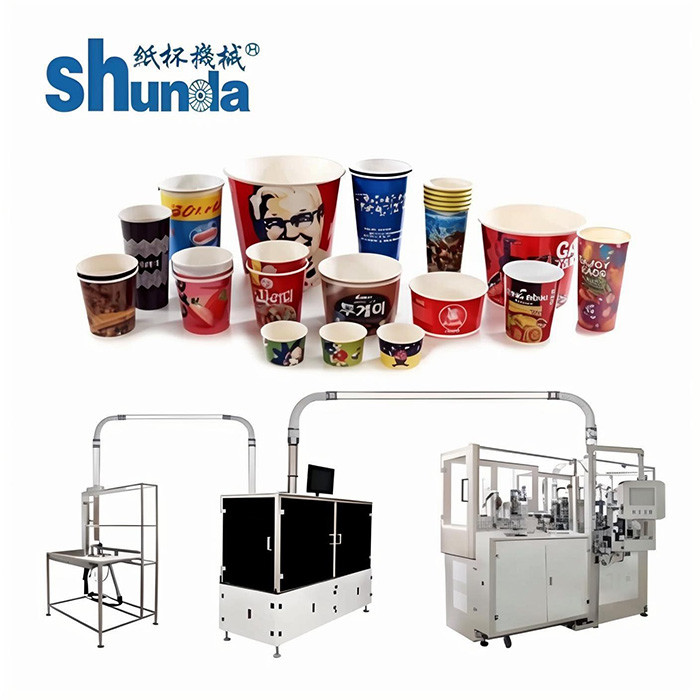

Shunda Automatic High Speed Paper Cup Machine

1. Output is improved: The capaticy is 90-100 pcs/min.

2. Servo motor is used to control the bottom paper feeding, so that the gap between the bottom-paper is controlled within 0.1mm, which can make machine more stable and save raw material. With light eyes under the paper roll,the machine will be stopped when out of bottom-paper, avoiding the waste in paper.

3. Gear drive is adopted to avoid the defect of loose gap of chain drive.

4. We use a self-lubrication system in the machine, which reduces the friction between the parts. And we do not need to add the oil manually. Sometimes worker are not willing to add the oil everyday. In this case the machine can be maintained without manually fueling.

5. This device adopt non-contact multi-point light control switch (such as in paper holder, cup tube ,bottom paper and so on, according to customer demand). It can detect working situation, then achieve a fault alarm preventing machine from collision, makes the machine more stable and longevous.

6. The machine is equipped with gear motor simplifies the complicated system and makes the machine more stable.

Durable High Speed Paper Cup Machine , Self - Lubrication Paper Cup Forming Machine

Technology Specification

Model SMD-90
MATERIAL SINGLE AND DOUBLE PE COATED PAPER
Paper cup size 2-16 OZ
Speed 90-100 PCS/MIN
Machine power 12KW
Output 380V/220V, 60HZ/50HZ,THREE PHASE FOUR WIRE
Working air source 0.4M3/MIN
Paper material 135-450 GRAM
Total weight 3.4 TONS
Overall dimension 2500*1800*1700 MM



Paper cup making process

Durable High Speed Paper Cup Machine , Self - Lubrication Paper Cup Forming Machine

Machine Running Video

http://www.youtube.com/watch?v=OX6v6k-0sLo&feature=youtu.be



FAQ:

1.whats your product range?

Tea cups,coffee cups,ice cream cups,noodle bowl, KFC bowl etc.

2.What size can this machine make?

This machine can make paper cups from 2OZ-16OZ.

3.How can I do the paper cup

Solution 1:you can buy die cutting machine and printing machine from us.

Solution 2:you can buy die cutting machine and printing machine in your native.

Solution 3: you can buy teh shaped paper fan and bottom paper.

4.Are you a manufacturer?

Yes,We have been in making paper cup machine over 16 years.

5.Do you have stock product to sell?

We have little stock ,But most of our products are designed according to customers requirement.

6.What information should i let you know if i want to get a quotation?

 --Quantity

 --Whats the detailed size (top diameter,bottom diameter,and height)

 --Whats the paper sickness

 --It is usage

7.What about the delivery time?

Usually 30 working days,but will depend on your quantity and size.

8.what about the payment term ?

Mostly 30%T/T  in advanced,the rest need paid before shipping.

9.whats your advantages ?

--16 years experience:We have been in making paper cup machine for 16 years.

--Customers all over the world

--Certificate: CE certificate,ISO 9001

--Fast reply:Our team will reply you soon.

--After-sale service:We have a after sale department , service for your problems and dealing with spare parts.





Durable High Speed Paper Cup Machine , Self - Lubrication Paper Cup Forming Machine
