Home ProductsHigh Speed Paper Cup Machine

PLC Controled Hot Air System High Speed Paper Cup Machine With 90-100 PCS/MIN

Good quality Paper Tea Cup Making Machine for sales
Good quality Paper Tea Cup Making Machine for sales
I love their machinery, pretty good quality. Their service is Amazing ,Big kiss To jenny~~

—— Mr. Hang Seng

I deal only with Shunda. Other haven't goid quality,i check other machine. First time using, U will have problem.

—— Rafik

I'm Online Chat Now

PLC Controled Hot Air System High Speed Paper Cup Machine With 90-100 PCS/MIN

China PLC Controled Hot Air System High Speed Paper Cup Machine With 90-100 PCS/MIN supplier

Large Image :  PLC Controled Hot Air System High Speed Paper Cup Machine With 90-100 PCS/MIN

Product Details:

Place of Origin: ZHEJIANG,CHINA
Brand Name: SHUNDA
Certification: CE201090502/CE
Model Number: SMD-90

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: wooden package
Delivery Time: 30 working days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 15 set per mouth
Detailed Product Description
Speed: 90-100 Pcs/min Material: Single Or Double PE Coated Paper
Color: Grey And White Cup Range: 2-24 Oz
Heating System: Hot Air System (from Switzerland) Air Compressor: 0.5M^3/min
Product Output: 380V,16 KW,50HZ, Three Phase Four Wire Machine Size: 2500×1800×1700mm
Counter Size: 900×900×1760 Mm Weight: 3.4 Tons

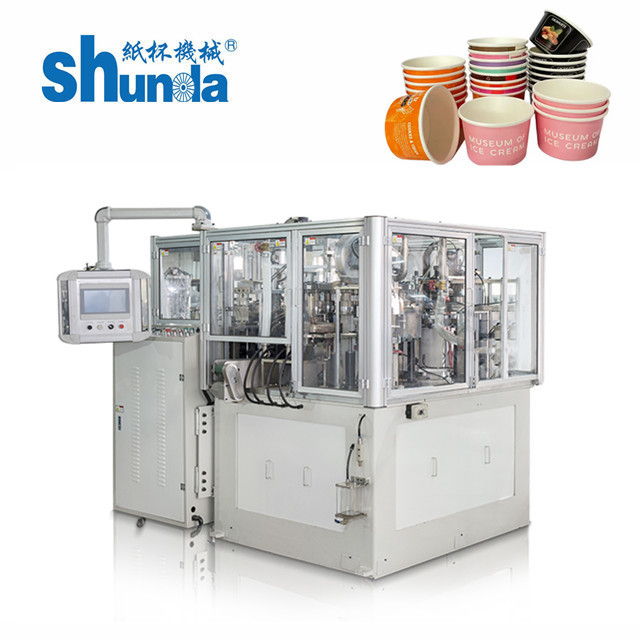

Product Pictures of paper cup machine

PLC Controled Hot Air System High Speed Paper Cup Machine With 90-100 PCS/MIN

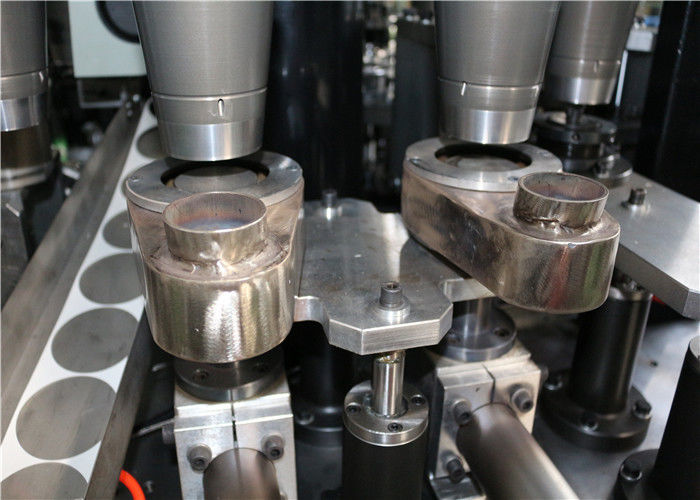

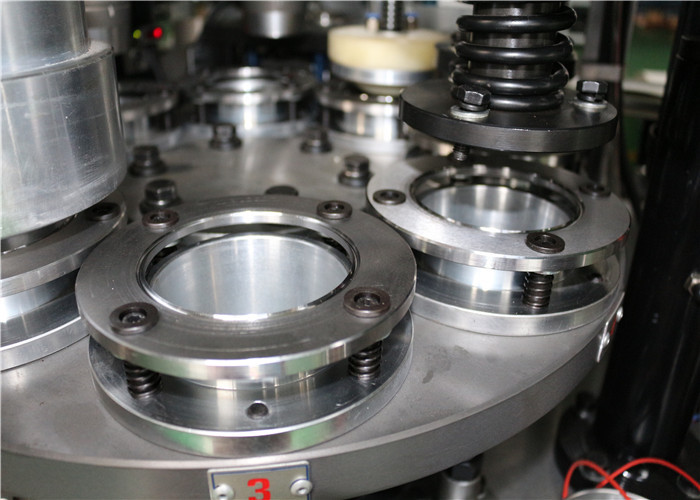

 Details: paper cup machine
PLC Controled Hot Air System High Speed Paper Cup Machine With 90-100 PCS/MIN


PLC Controled Hot Air System High Speed Paper Cup Machine With 90-100 PCS/MIN
Product Description of paper cup machine


MODEL

SMD-90 PAPER CUP MACHINE

Speed

90-100 PCS/MIN

Cup size  Range

2-24 oz

Material

Single  and  Double  PE coated paper

Paper request Gram

135-450GSM(single and double PE coated paper)

Heating  system

Hot air system (from Switzerland)

Output

380V/220V 16 KW,50HZ, Three Phase four wire

Air compressor

0.5 M³/Min

Net weight

4 TONS

Machinery Size

2500  ×1800 ×1700 MM

Counter Size

900 ×900 ×1760 MM



Cup size range

Top diameter: 60-115 mm
Bottom diameter: 50-80 mm
Height:65-180 mm
Bottom height: 5-10 mm


Output


Normal  Running Speed

90 pcs/min

50 pcs/min

40 pcs

1 Day(12 Hours)

90pcs*60min*12hours=64800 pcs

50pcs*60min*12hours=36000 pcs

28800pcs

1 Week (5 Days)

64800pcs*5days=324000pcs

36000pcs*5days=180000pcs

144000pcs

1 Mouth(22 Days)

64800pcs*22days=1425600pcs

360000pcs*22days=792000pcs

633600pcs




You can create  633600 piece paper cup more than normal speed machine as profit each mouth


Production Line

PLC Controled Hot Air System High Speed Paper Cup Machine With 90-100 PCS/MIN
