Horizontal Safety singel wall Paper Cup Packing Machine 135-450GRAM

Good quality Paper Tea Cup Making Machine for sales
Good quality Paper Tea Cup Making Machine for sales
I love their machinery, pretty good quality. Their service is Amazing ,Big kiss To jenny~~

—— Mr. Hang Seng

I deal only with Shunda. Other haven't goid quality,i check other machine. First time using, U will have problem.

—— Rafik

I'm Online Chat Now

Horizontal Safety singel wall Paper Cup Packing Machine 135-450GRAM

China Horizontal Safety singel wall Paper Cup Packing Machine 135-450GRAM supplier
Horizontal Safety singel wall Paper Cup Packing Machine 135-450GRAM supplier Horizontal Safety singel wall Paper Cup Packing Machine 135-450GRAM supplier Horizontal Safety singel wall Paper Cup Packing Machine 135-450GRAM supplier Horizontal Safety singel wall Paper Cup Packing Machine 135-450GRAM supplier Horizontal Safety singel wall Paper Cup Packing Machine 135-450GRAM supplier Horizontal Safety singel wall Paper Cup Packing Machine 135-450GRAM supplier

Large Image :  Horizontal Safety singel wall Paper Cup Packing Machine 135-450GRAM

Product Details:

Place of Origin: China
Brand Name: Shunda
Certification: FDA,SGS
Model Number: SMD-90

Payment & Shipping Terms:

Minimum Order Quantity: 1 set paper cup machine
Price: negotiation
Packaging Details: Export wood case
Delivery Time: 35-45 working days after confirmed cup size and received deposit
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 20 SETS per month
Contact Now
Detailed Product Description
Product Name: High Speed Paper Cup Making Machine Color: Blue And White
CUP SIZE: 4-16oz CONFIGURATION: ULTRASONIC & HOT AIR SYSTEM
OUTPUT: 12KW,380V/220V,60HZ/50HZ MATERIAL: 135-450GRAM
Air Compressor: 0.4 M³/Min 0.5MPA Speed: 100-120 Pcs/min
Net Weight: 3.4 TONS Dimension Of Machine: 2500×1800 ×1700 MM

Horizontal Safety singel wall Paper Cup Packing Machine 135-450GRAM





Specifications:



MODEL SMD-90 PAPER CUP MACHINE
Speed 100-120 PCS/MIN
Cup size Range 4-16oz
Material Single and Double PE coated paper
Paper request Gram 135-450GSM(single and double PE coated paper)

Heating system Hot air system (from Switzerland)
Output 380V/220V 12 KW,50HZ, Three Phase four wire

Air compressor 0.4 M³/Min 0.5MPA
Net weight 3.4 TONS
Machinery Size 2500 ×1800 ×1700 MM
Counter Size 900 ×900 ×1760 MM





Description:



SMD-90 AUTOMATICALLY PAPER CUP MACHINE , IT INCLUDS DELIVER PAPER (PRINTED AND CUTED PAPER FAN), SEAL(HEATING), OIL INDECTION, BOTTOM CUT, HEAT,BOTTOM SEALING, HEMMING AND CUP DISCHARGE ,ALSO , IT HAS PHOTOELECTRIC CONTROL, SHORT CIRCLE PROTECTION,AND AUTOMATICALLY COUNTING. IT PRDODUCE COLD AND HOT DRINNK CUP .



Cup samples:



Horizontal Safety singel wall Paper Cup Packing Machine 135-450GRAM





Advantages:



SMD-90 has Favorable price.Great variety of products. Environment Friendly Technology and OEM and ODM service provided.





Machine Details:



Open cylindrical cam: Our factory is the first one using two cam systems, this design more costly, but can let the top curling and bottom knurling more accuracy, stable and low noise. Cam adpots high strength Japan-SKD11 with quenching treatment,resistant to wear. Before set up on the machine, our factory will test running one week, to ensure each bearing at the suitable station.



Horizontal Safety singel wall Paper Cup Packing Machine 135-450GRAMHorizontal Safety singel wall Paper Cup Packing Machine 135-450GRAM

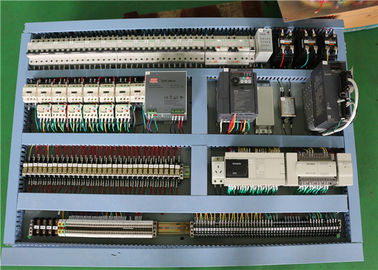

Photoelectric detection: each production step have camera. Any step have problem will be showed
on PLC. Such as the stock of paper fan less than standard, will be alarming. If do not add paper fan,
will finish paper fan in machine firstly,then, stop the machine automaticly.





Horizontal Safety singel wall Paper Cup Packing Machine 135-450GRAMHorizontal Safety singel wall Paper Cup Packing Machine 135-450GRAM

FAQ:



1. Q: Is your company a factory or trading company?

A: Our company is a factory.

2. Q:Where is your factory located? How can I visit there?

A: Our factory is located in haining City, Zhejiang Province, China, about 1.5 hours by car from Shanghai .All our clients, from home or abroad, are warmly welcome to visit our company !





After Service:


1. warranty:3 years

2. the guide booklet will be sent with machine to guide the installation process works,adjust the whole machine,production,avoide or solve the problem which the buyer will face.

3. we will adjust the machine well for one week before the delivery,ensure the machine has the perfect performance.

4. we can dispatch technologists to buyer's factory,guiding installation,ajustment for a period,the buyer incharge of the salary,traffic fee,boarding and lodging,communication and Daily salary.



Horizontal Safety singel wall Paper Cup Packing Machine 135-450GRAM
