6-22 Oz Double Wall Coffee Or Tea Paper Cup Forming Machine High Efficient With Ultrasonic and hot air system

6-22 Oz Double Wall Coffee Or Tea Paper Cup Forming Machine High Efficient With Ultrasonic and hot air system
6-22 Oz Double Wall Coffee Or Tea Paper Cup Forming Machine High Efficient With Ultrasonic and hot air system 6-22 Oz Double Wall Coffee Or Tea Paper Cup Forming Machine High Efficient With Ultrasonic and hot air system 6-22 Oz Double Wall Coffee Or Tea Paper Cup Forming Machine High Efficient With Ultrasonic and hot air system 6-22 Oz Double Wall Coffee Or Tea Paper Cup Forming Machine High Efficient With Ultrasonic and hot air system 6-22 Oz Double Wall Coffee Or Tea Paper Cup Forming Machine High Efficient With Ultrasonic and hot air system 6-22 Oz Double Wall Coffee Or Tea Paper Cup Forming Machine High Efficient With Ultrasonic and hot air system

Large Image :  6-22 Oz Double Wall Coffee Or Tea Paper Cup Forming Machine High Efficient With Ultrasonic and hot air system Get Best Price

Product Details:

Place of Origin: China
Brand Name: Shunda
Certification: CE,ISO9001
Model Number: 80A

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: negotiable
Packaging Details: Seaworthy and suitable for bumpy roads. Strong wooden box and firm plate
Delivery Time: 40 working days
Payment Terms: Western Union, , T/T, L/C
Supply Ability: 20 sets per Month
Detailed Product Description
Cup Size: 6-22oz Speed: 80-100pcs/min
Raw Material: 135-450 GRAM Configuration: ULTRASONIC & HOT AIR SYSTEM
Output: 10KW,380V/220V,60HZ/50HZ Air Compressor: 0.4 M³/Min 0.5MPA
Net Weight: 3.0TONS Dimension Of Machine: 2500×1800×1700 MM
Dimension Of Cup Collector: 900×900×1760 MM Colors: As Per Requirements
High Light:

paper cup machine

,

paper cups machines

6-22 Oz Double Wall Coffee Or Tea Paper Cup Forming Machine High Efficient With Ultrasonic And Hot Air System



Technical Data:



MODEL SMD-80A Double Wall PAPER CUP MACHINE
Speed 80-100 PCS/MIN
Cup size Range 6-22 oz
Material Single and Double PE coated paper
Paper request Gram 135-450GSM(single and double PE coated paper)
Heating system Hot air system (from Switzerland)
Output 380V/220V 10 KW,50HZ, Three Phase four wire
Air compressor 0.4 M³/Min
Net weight 3 TONS
Machinery Size 2500 ×1800 ×1700 MM





Advantages:



· Horizontal machine design
· Gear Driven
· Advanced cylindrical cam indexing gear
· Flameless hot air sealing
· Automatic lubricating
· PLC closed-loop control system
· Touch-screen control
· Servo control for bottom feeding
6-22 Oz Double Wall Coffee Or Tea Paper Cup Forming Machine High Efficient With Ultrasonic and hot air system 0

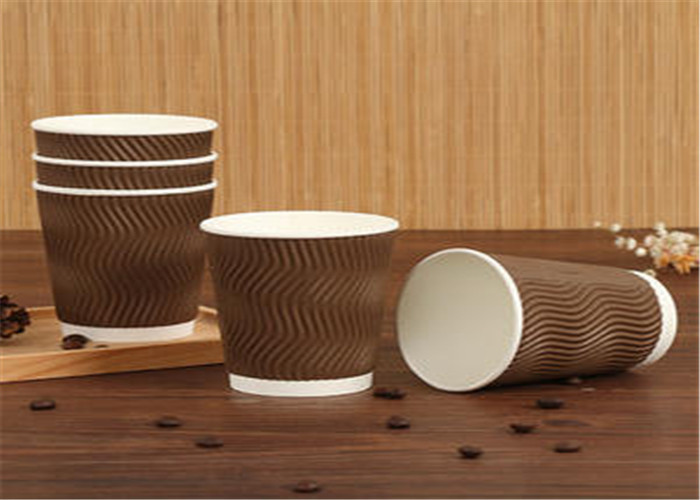

Finished products:


6-22 oz Double Wall Coffee or Tea Paper Cup Forming Machine Full Automatic 90-100 cups per minute



Output:



Normal Running Speed 90 pcs/min 50 pcs/min 40 pcs
1 Day(12 Hours) 90pcs*60min*12hours=64800 pcs 50pcs*60min*12hours=36000 pcs 28800pcs
1 Week (5 Days) 64800pcs*5days=324000pcs 36000pcs*5days=180000pcs 144000pcs
1 Mouth(22 Days) 64800pcs*22days=1425600pcs 360000pcs*22days=792000pcs 633600pcs


You can create 633600 piece paper cup more than normal speed machine as profit each mouth




About us:

Haining Chengda Paper Cup Machinery CO.,Ltd is established in year 1998,as Chinese earliest paper cup machine manufacturer--design,research,manufacture,sell and serve , we have developed, matured and specialized in machine types as below,


--Middle speed paper bowl machine SMD-80B 70-80cups/min
--Middle speed double wall paper cup machine SMD-80A 70-80cups/min
--High speed paper cup machine SMD-90 100-120cups/min

With decade years of technology accumulation,advanced manufacturing skills and thoughtful after-sale services, Chengda(Shunda) Paper Cup Machinery CO., Ltd has self-supported import and export right and goes though CCC and CNAS certificates,also get CE and ISO9001 certified.




After-sale Service:


1.warranty: 3 year



2.the guide booklet will be sent with machine to guide the installation process works,adjust
the whole machine,production,avoide or solve the problem which the buyer will face.



3.we will adjust the machine well for one week before the delivery,ensure the machine has
the perfect performance.



4.we can dispatch technologists to buyer's factory,guiding installation,ajustment for a period,the buyer incharge of the salary,traffic fee,boarding and lodging,communication and each day 100usd living allowances.



5.we supply the free training of buyer,the training won't stop until the buyer control the whole lesson!



6.we supply the consumable spare parts for frees for three year use.
