Paper Cup Sleeve Machine,high speed digital control paper cup sleeve machine with track switches

Basic Information
Place of Origin: China
Brand Name: Shunda
Certification: CE,ISO9001
Model Number: SHUNDA-80A
Minimum Order Quantity: 1 set double wall paper cup machine
Price: negociable
Packaging Details: Export wood case,one 20ft can load 2 sets of machine
Delivery Time: 35-45 working days after confirmed cup size and received deposit
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 18 SETS per month
Detail Information
Product: Paper Cup Sleeve Machine Speed: 80-100 Pcs/min
Size: 6-22oz Paper Fan Weight: 135-450gsm
Output: 10KW,380V/220V,60HZ/50HZ Eletricity Board: Seperately
Air Compressor: 0.4 M³/Min 0.5MPA Net Weight: 3.0 TONS
Dimension Of Machine: 2500×1800 ×1700 MM Dimension Of Cup Collector: 900 ×900 ×1760 MM
High Light:

high speed paper cup machine

,

paper cup manufacturing machine


Product Description



Paper Cup Sleeve Machine,high speed digital control paper cup sleeve machine with track switches







Specification



MODEL

Paper Cup sleeve machine SHUNDA-80A

SPEED

80-100PCS/MIN

CUP SIZE

6-22OZ

MATERIAL

135-450GRAM

CONFIGURATION

ULTRASONIC&HOT AIR

OUTPUT

380V/220V,60HZ

AIR COMPRESSOR

0.4 M³/Min

NET WEIGHT

3TONS

MACHINE SIZE

2500 ×1800 ×1700 MM

COUNTER SIZE

900 ×900 ×1760 MM





Description



Paper Cup Sleeve machine is great thermal insulation container.
Our company developed fast speed double wall paper Cup machine, using Gear working, it has better promotion for noise,speed,stability .





Application

Produce for Coffee Cup, Tea Cup, Juice Cup, Ice Cream Cup double wall sleeving,etc





Highlights



Paper fan side seal:Hot air system for preheating, using ultrasonic for side seal. Ensure no water leakage during high speed running. Especially for double PE coated paper fan, have two side hot air system.





Photoelectric detection: each production step have camera. Any step have problem will be showed on PLC. Such as the stock of paper fan less than standard, will be alarming. If do not add paper fan, will finish paper fan in machine firstly,then, stop the machine automaticly.

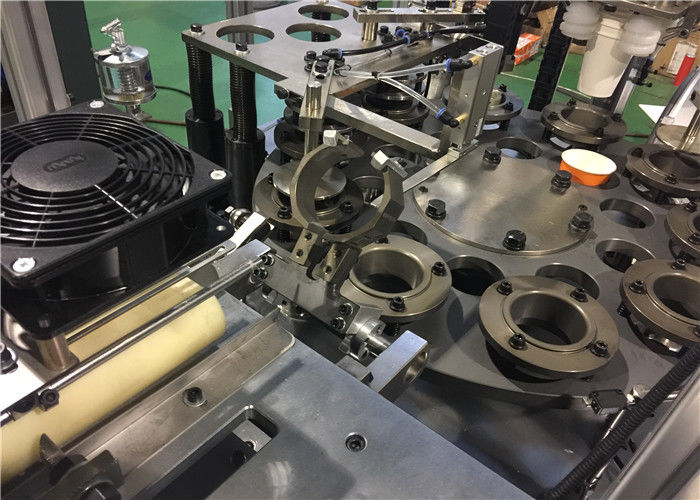

Paper Cup Sleeve Machine,high speed digital control paper cup sleeve machine with track switches 0





FAQ



1. Q: Is your company a factory or trading company?

A: Our company is a factory.



2. Q:Where is your factory located? How can I visit there?

A: Our factory is located in haining City, Zhejiang Province, China, about 1.5 hours by car from Shanghai .All our clients, from home or abroad, are warmly welcome to visit our company !



Paper Cup Sleeve Machine,high speed digital control paper cup sleeve machine with track switches 1





3.Q: How does your factory do regarding quality control?

A: Quality is priority. Shunda people always attach great importance to quality controlling from the very beginning to the very end:



1).All raw material we used are environmental-friendly;

2).Skilful workers care every details in handling the producing and packing processes;

3).Quality Control Department specially responsible for quality checking in each process.





 After sale service:
- The CD and service& support guide booklet will be sent with machine to guide the installation process works, adjust the whole machine,production,avoid or solve the problem which the buyer will face.
- We will adjust the machine well for one week before the delivery, ensure the machine has the perfect performance!
- We supply the free training of buyer, the training won’t stop until the buyer control the whole lesson. The cost of air ticket, boarding and lodging should provided by buyer.





Paper Cup Sleeve Machine,high speed digital control paper cup sleeve machine with track switches 2
