Coffee Paper Cup Production Machine Mitsubishi PLC With Auto Lubrication

Basic Information
Place of Origin: China
Brand Name: Shunda
Certification: CE201090502/CE
Model Number: SMD-90
Minimum Order Quantity: 1 set paper cup machine
Packaging Details: wooden package for paper cup machine
Delivery Time: 21 working days
Payment Terms: T/T, L/C
Supply Ability: 15 set paper cup machine per mouth
Detail Information
Speed: 100-130 Pcs/min Material: Single Or Double PE Coated Paper
Color: Grey Cup Range: 2- 32 Oz
Heating System: Hot Air System Air Compressor: 0.5M^3/min
Product Output: 380V,16 KW,50HZ, Three Phase Four Wire Machine Size: 2500×1600×1600mm
Counter Size: 900×900×1760 Mm Weight: 3.5 Tons
Paper Thickness: 135-450 GSM Production: Paper Cup Machine
High Light:

cup packaging machine

,

high speed paper cup machine


Product Description

Coffee Paper Cup Production Machine Mitsubishi PLC With Auto Lubrication







The characteristic of Paper cup machine:



1. Bottom sealing by Swiss hot air devices, so you can get non-leakage cup.


2. Cup side sealing by Taiwan Evergreen ultrasonic; If you will not change mould,  if only one mould work with the machine, you can take hot air sealing as option.


3. Cup top curling and bottom knurling are finished by separate turnplates.


4. It is easy to make cups with different sizes by changing moulds.


5. With automatic cup delivery system with counter.







Technology Specification



1.Cup Use : round paper cups, drinking , noodle and vending cups ice-cream and food containers


2.Raw material : 135~450gsm Single or Double PE coating paper



3.Output : 100-130 pcs/min.


4.Cup size range



Cup dimensions min. max.
Top diameter 60 mm 115 mm
Bottom diameter 50 mm

85 mm

Height

65 mm 180 mm


6. Electrical requirement : 380V or 220V, 50/60 Hz


7. Electric consumption : 12KW


8. Air consumption : approx 0.4cbm/min


9. Machine dimensions : 2500mm×1800mm×1700mm



10. Machine Weight :3.4 TONS

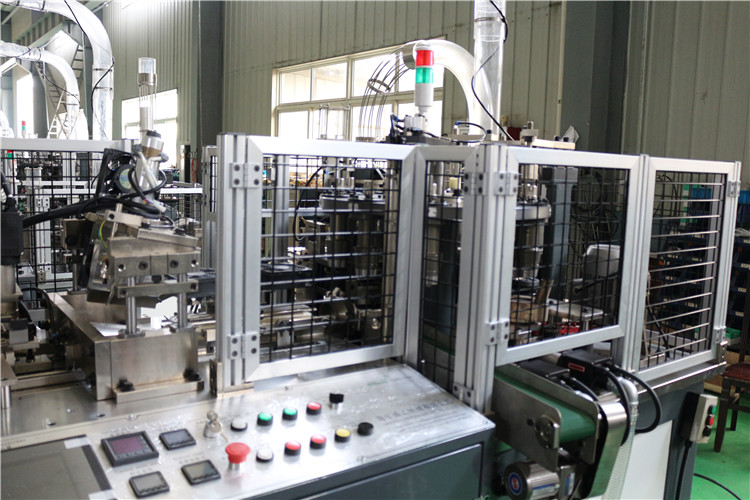

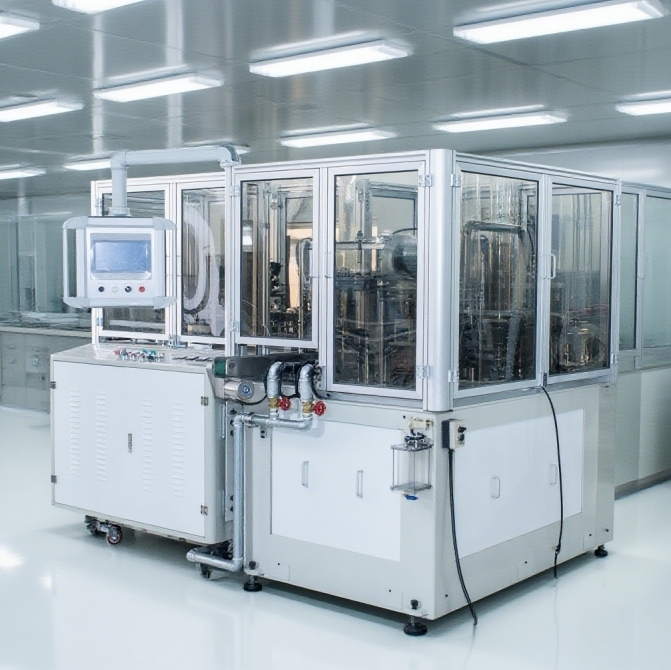

Coffee Paper Cup Production Machine Mitsubishi PLC With Auto Lubrication 0
Coffee Paper Cup Production Machine Mitsubishi PLC With Auto Lubrication 1

Coffee Paper Cup Production Machine Mitsubishi PLC With Auto Lubrication 2
Coffee Paper Cup Production Machine Mitsubishi PLC With Auto Lubrication 3


Coffee Paper Cup Production Machine Mitsubishi PLC With Auto Lubrication 4
Coffee Paper Cup Production Machine Mitsubishi PLC With Auto Lubrication 5



Machine Running Video

https://youtu.be/NhdVTYC3VHU



FAQ:
1.what’s your product range?
Tea cups,coffee cups,ice cream cups,noodle bowl, KFC bowl etc.
2.What size can this machine make?
This machine can make paper cups from 2OZ-16OZ.
3.How can I do the paper cup
Solution 1:you can buy die cutting machine and printing machine from us.
Solution 2:you can buy die cutting machine and printing machine in your native.
Solution 3: you can buy teh shaped paper fan and bottom paper.
4.Are you a manufacturer?
Yes,We have been in making paper cup machine over 16 years.
5.Do you have stock product to sell?
We have little stock ,But most of our products are designed according to customer’s requirement.
6.What information should i let you know if i want to get a quotation?
 --Quantity
 --What’s the detailed size (top diameter,bottom diameter,and height)
 --What’s the paper sickness
 --It is usage
7.What about the delivery time?
Usually 30 working days,but will depend on your quantity and size.
8.what about the payment term ?
Mostly 30%T/T  in advanced,the rest need paid before shipping.
9.what’s your advantages ?
--16 years experience:We have been in making paper cup machine for 16 years.
--Customers all over the world
--Certificate: CE certificate,ISO 9001
--Fast reply:Our team will reply you soon.
--After-sale service:We have a after sale department , service for your problems and dealing with spare parts.






         We will reply your email or fax within 24 hours.
You can call us at any time if there is any question on our production.
