PLC Control High Speed Paper Cup Machine , Paper Cup Making Machine

PLC Control High Speed Paper Cup Machine , Paper Cup Making Machine
PLC Control High Speed Paper Cup Machine , Paper Cup Making Machine PLC Control High Speed Paper Cup Machine , Paper Cup Making Machine PLC Control High Speed Paper Cup Machine , Paper Cup Making Machine PLC Control High Speed Paper Cup Machine , Paper Cup Making Machine PLC Control High Speed Paper Cup Machine , Paper Cup Making Machine PLC Control High Speed Paper Cup Machine , Paper Cup Making Machine

Large Image :  PLC Control High Speed Paper Cup Machine , Paper Cup Making Machine Get Best Price

Product Details:

Place of Origin: China
Brand Name: Shunda
Certification: CE201090502/CE
Model Number: SMD-90

Payment & Shipping Terms:

Minimum Order Quantity: 1 set paper cup machine
Price: negotiation
Packaging Details: wooden package
Delivery Time: 30-40 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 20 sets per mouth
Detailed Product Description
Speed: 100-130 Pcs/min(max 145pcs/min) Material: Single Or Double PE Coated Paper
Color: As Per Requirement Cup Range: 4-16 Oz

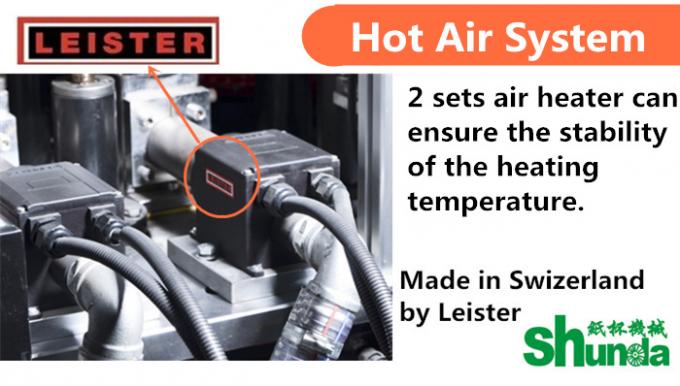

Heating System: Hot Air System (from Switzerland) Air Compressor: 0.4 M³/Min 0.5MPA
Product Output: 380V,16 KW,50HZ, Three Phase Four Wire Weight: 3.4 Tons

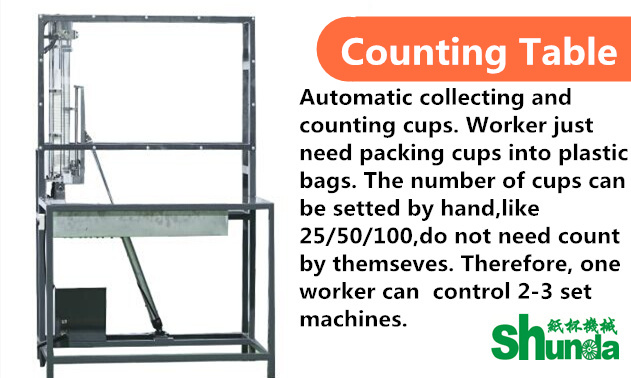

Machine Size: 2500×1800×1700mm Counter Size: 900×900×1760 Mm
High Light:

paper cups making machines

,

disposable cup making machine

PLC Control High Speed Paper Cup Machine , Paper Cup Making Machine

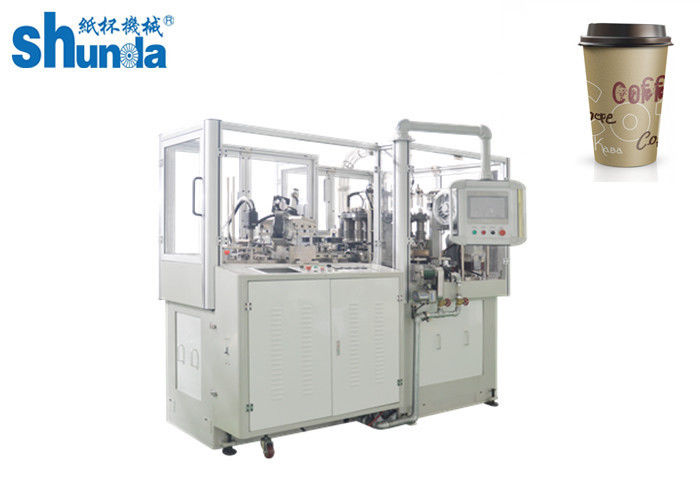

Shunda Automatic High Speed Paper Cup Machine

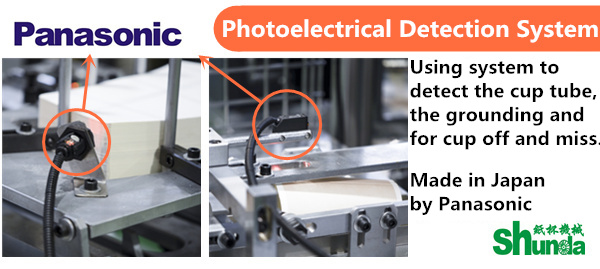

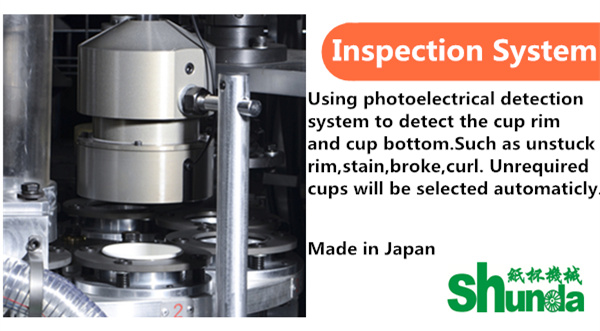

High Speed Paper Cup Making Machine is as automatic machine with multi working station which has function of photocell detection failure alarm counter and the advantage of humanism design, safer operation and easier maintenance

Based on the normal machine,through innovation and improvement. Overall stability and speed of production has been greatly improved .

It produces both one-side and two-side PE coated paper cup,paper bowl after running a whole procedure of automatic pre-printed -fan-shape-paper feeding, two-step pre-heating, bowl-side body. Sealing( ultrasonic wave ) silicone oil lubricating ( for top curling ) bottom punching, two step bottom heating, bottom pre folding, bottom knurling, top curling and cup ( bowl ) discharging etc.

It is an ideal equipment of making both hot and cold drinks paper cups.

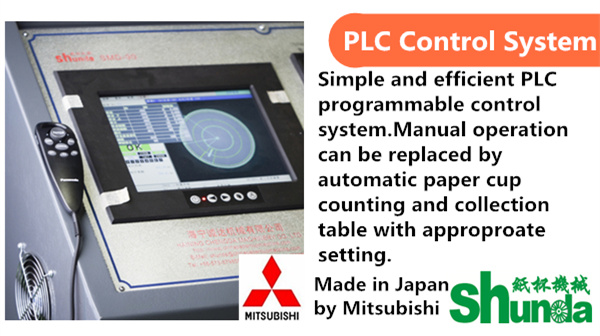

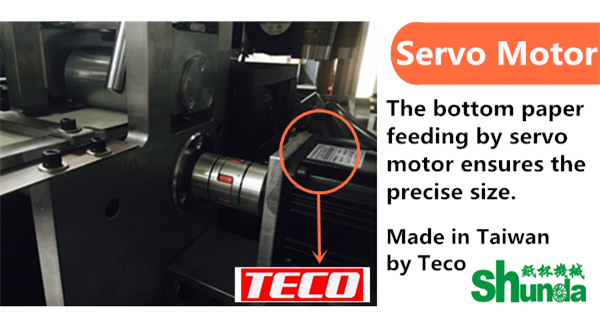

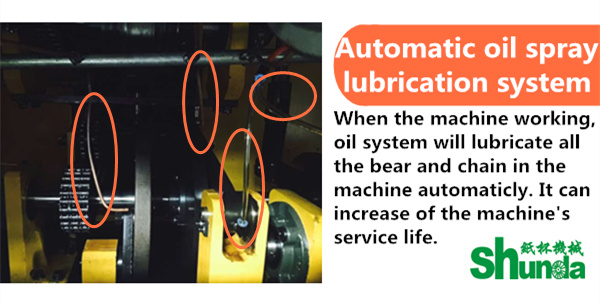

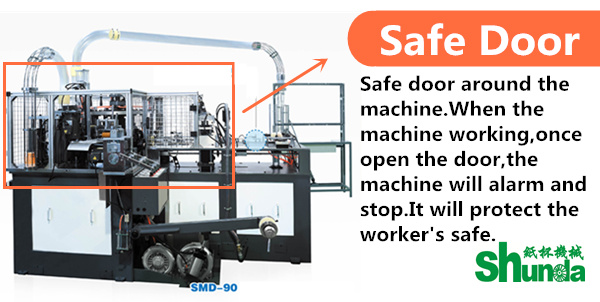

PLC Control High Speed Paper Cup Machine , Paper Cup Making Machine 0PLC Control High Speed Paper Cup Machine , Paper Cup Making Machine 1
PLC Control High Speed Paper Cup Machine , Paper Cup Making Machine 2
PLC Control High Speed Paper Cup Machine , Paper Cup Making Machine 3
PLC Control High Speed Paper Cup Machine , Paper Cup Making Machine 4
PLC Control High Speed Paper Cup Machine , Paper Cup Making Machine 5

PLC Control High Speed Paper Cup Machine , Paper Cup Making Machine 6
PLC Control High Speed Paper Cup Machine , Paper Cup Making Machine 7
PLC Control High Speed Paper Cup Machine , Paper Cup Making Machine 8

Technology Specification

ModelSMD-90
MATERIALSINGLE AND DOUBLE PE COATED PAPER
Paper cup size4-16 OZ
Speed100-130 PCS/MIN
Machine power12KW
Output380V/220V, 60HZ/50HZ,THREE PHASE FOUR WIRE
Working air source0.4M3/MIN
Paper material135-450 GRAM
Total weight3.4 TONS
Overall dimension25001800*1700 MM



Machine Running Video
SMD-90: https://www.youtube.com/watch?v=b-bYOl8eZHU


FAQ:
1.whats your product range?
Tea cups,coffee cups,ice cream cups,noodle bowl, KFC bowl etc.

2.What size can this machine make?
This machine can make paper cups from 4OZ-16OZ.

3.How can I do the paper cup
Solution 1:you can buy die cutting machine and printing machine from us.
Solution 2:you can buy die cutting machine and printing machine in your native.
Solution 3: you can buy teh shaped paper fan and bottom paper.


4.Do you have stock product to sell?
We have little stock ,But most of our products are designed according to customers requirement.

5.What information should i let you know if i want to get a quotation?
 --Quantity
 --Whats the detailed size (top diameter,bottom diameter,and height)
 --Whats the paper sickness
 --It is usage

6.What about the delivery time?
Usually 30 working days,but will depend on your quantity and size.

7.what about the payment term ?
Mostly 30%T/T  in advanced,the rest need paid before shipping.

8.whats your advantages ?
--Customers all over the world
--Certificate: CE certificate,ISO 9001
--Fast reply:Our team will reply you soon.
--After-sale service:We have a after sale department , service for your problems and dealing with spare parts.
