Automatic Disposable Paper Cup Making Machine , Ultrasonic Single And Double Pe Paper Cup Machine 4KW

China Automatic Disposable Paper Cup Making Machine , Ultrasonic Single And Double Pe Paper Cup Machine 4KW supplier
Automatic Disposable Paper Cup Making Machine , Ultrasonic Single And Double Pe Paper Cup Machine 4KW supplier Automatic Disposable Paper Cup Making Machine , Ultrasonic Single And Double Pe Paper Cup Machine 4KW supplier Automatic Disposable Paper Cup Making Machine , Ultrasonic Single And Double Pe Paper Cup Machine 4KW supplier Automatic Disposable Paper Cup Making Machine , Ultrasonic Single And Double Pe Paper Cup Machine 4KW supplier

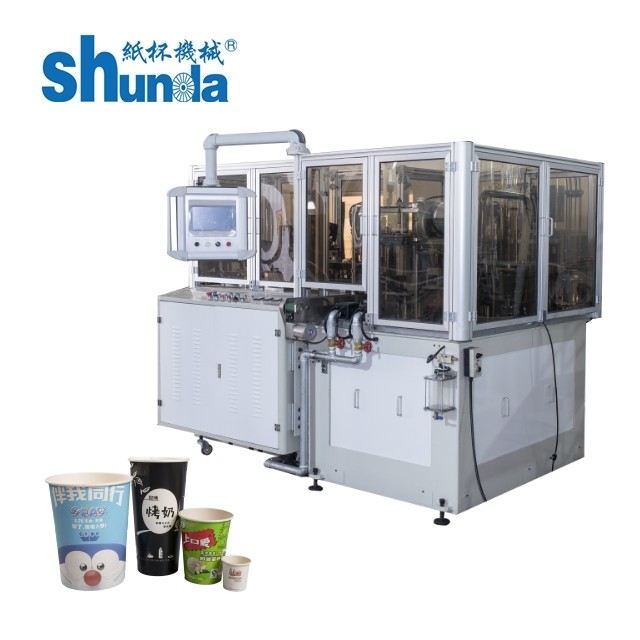

Large Image :  Automatic Disposable Paper Cup Making Machine , Ultrasonic Single And Double Pe Paper Cup Machine 4KW

Product Details:

Place of Origin: ZHEJIANG
Brand Name: Shunda
Certification: CE
Model Number: ZBJ-12A

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: wooden package
Delivery Time: 30days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 30 SET PER MOUTH
Contact Now
Detailed Product Description
Name: Paper Cup Making Machine Speed: 45-50 Pcs/min
Heat System: Ultrasonic Paper Thickness: 135-450 Gsm
Cup Size: 2oz -22oz Material: Single And Double PE Coated Paper



Automatic Disposable Paper Cup Making Machine , Ultrasonic Single And Double Pe Paper Cup Machine 4KW





ZBJ-12A Automatic Ultrasonic Double PE Paper Cup Machine, which could produce 2oz-22oz hot drink and cold drink paper cup.




Working principles:


1. Square paper pieces be printed(use offset printer)and cut(use die-cutting machine)in advance, becomes cup-fan-wall-papers to make cup body.
2. Paper sender delivers the cup-fan-wall-papers to molds, sealing the body.
3. The cup bottom paper (reel) automatic feed to the bottom cut parts, be cut into round pieces

and sent to molds with the sealed cup body.
4. Pre heating the cup bottom, bottom heating, curlinging the top edge.
5. Sealing the bottom with body.
6. Knurling the cup bottom.
7. Discharging finished cups automatically from molds. Sending to collector and be collected and

 piled and counted automatically







Technical Specification:

Model

ZBJ-12A Automatic Ultrasonic Double PE Paper Cup Machine

Paper Cup Size

2oz-22oz (mold exchangeable)

Raw Material

One-side or two-side PE (polyethylene) film coated / laminated paper

Suitable paper weight

135-450gsm

Rated Productivity

45-50 pcs/ minute

Power Source

220V/380V 50Hz or other required

Total Power

4.8KW

Total Weight

1500KG

Package Size
(L x W x H)

2700 x1500 x1500mm

Working Air Source

0.4Mpa, Air Out-put: 0.6 m 3 /minute



Automatic Disposable Paper Cup Making Machine , Ultrasonic Single And Double Pe Paper Cup Machine 4KW





Paper Cup Making Process:



1. Paper Making Machine make paper roll.

2. Flexo Printing Machine or Paper cup Printing machine to Paper roll

3. Paper die-cutting machine to make paper fan which is paper body

4. We use electrical heater or Evergreen Ultrasonic to send paper fan to the mould and sealing

5. At the same time, the paper bottom automatic cut to round type and sent to the mould

Together with paper fan.

6. Preheat the bottom, heat again the bottom, and curling the top edge of the cup

7. Sealing the bottom and body strongly, Knurling the bottom.

8. Discharging finished paper cup automatically from moulds. Sending to the collector and be

collected and piled and count automatically. Each 50pcs or 100pcs, we can set alarm, so easy

to collect.



Automatic Disposable Paper Cup Making Machine , Ultrasonic Single And Double Pe Paper Cup Machine 4KW





Why should you choose us?



rich experience:

We have been engaged in the fasteners for 16 years.



Our company had good reputation with customers from American, Europe and Algeria etc. We also have a good team for sale and quality control.



good service:

We will respond to you within 24 hours. We can manufacture nonstandard parts according to your

 drawings. And we will continue to serve you after sales and will be responsible for the mistakes

from us.



low price:

The prices of our production are reasonable!The prices will be much better if your quantity is

good.



perfect quality:

We have strict quality control from producing to delivery. We have cultivated a group of managers

who are familiar with product quality , good at modern concept of management.



If you need more more details, just call 0086-13586377992
