High Efficiency Double wall Paper Cup Sleeve Machine 2500 ×1800 ×1700MM

Basic Information
Place of Origin: China
Brand Name: Shunda
Certification: CE/SGS
Model Number: SHUNDA-80A
Minimum Order Quantity: 1 SET
Price: negotiation
Packaging Details: Wooden Pallet for paper cup making machine
Delivery Time: 25-35 working days after received your payment
Payment Terms: T/T or L/C
Supply Ability: 20 sets per month
Detail Information
Product Name: Paper Cup Sleeve Machine Color: White Or Customized
Speed: 70-80pcs/min Material: Single/Double PE Coated Paper
CONFIGURATION: ULTRASONIC&HOT AIR OUTPUT: 380V/220V,60HZ
AIR COMPRESSOR: 0.5 M³/Min Eletricity Brand: Evergreen
High Light:

high speed paper cup machine

,

paper cup manufacturing machine


Product Description



High Efficiency Double wall Paper Cup Sleeve Machine 2500  ×1800 ×1700MM



Specifications:



MODEL

                   Paper Cup sleeve machine SHUNDA-80A

SPEED

                    70-80PCS/MIN

CUP SIZE

                    < 16OZ

MATERIAL

                    135-450GRAM

CONFIGURATION

                    ULTRASONIC&HOT AIR

OUTPUT

                    380V/220V,60HZ

AIR COMPRESSOR

                    0.5 M³/Min

NET WEIGHT

                    4 TONS

MACHINE SIZE

                    2500  ×1800 ×1700 MM

COUNTER SIZE

                    900 ×900 ×1760 MM

FOB SHANGHAI

                    32000 USD/SET







Description:



Paper Cup Sleeve machine  is great thermal insulation container.
Our company developed fast speed double wall paper Cup machine, using Gear working, it has better promotion for noise,speed,stability .





Whole Process



Double wall paper deliver →Double wall Cup forming →Paint Oil on paper bottom→Cup outside Bottom curl→Outside

Cup paint glue inside→Inside Cup drop→Cup tight part→compact the finished cup





Applications:



Produce for Coffee Cup



High Efficiency Double wall Paper Cup Sleeve Machine 2500  ×1800 ×1700MM 0

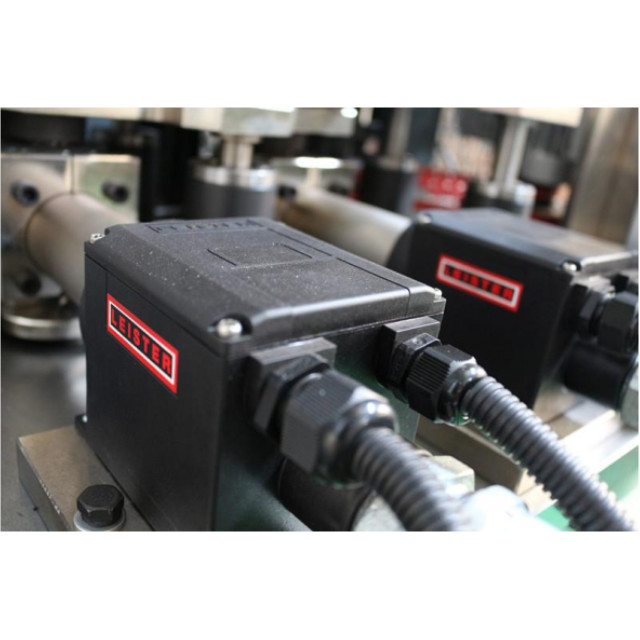

Machine Details



High Efficiency Double wall Paper Cup Sleeve Machine 2500  ×1800 ×1700MM 1High Efficiency Double wall Paper Cup Sleeve Machine 2500  ×1800 ×1700MM 2High Efficiency Double wall Paper Cup Sleeve Machine 2500  ×1800 ×1700MM 3





Introduce



Paper Cup Sleeve Machine each action for paper cup making independent function.The so-called debugging is realizing the function of reservation components in a reasonable, therefore all sales to
Customer equipment, our company has finished  debugging already. if there is any place in running the project change, need to be completely familiar with and master the medium-speed charter flights outside the performance, structure, principle, and commissioning.If special circumstances, should contact with the company.







FAQ



1. Q: If This Machine can Connect with the Fast paper Cup machine?

A: Yes.and they can work together, only one worker can finish the Double wall Cup job.

2. Q:Where is your factory located? How can I visit there?

A: Our factory is located in haining City, Zhejiang Province, China, about 1.5 hours by car from Shanghai .All our clients, from home or abroad, are warmly welcome to visit our company !

3. Q:How does your factory do regarding quality control?

A: Quality is priority. Shunda people always attach great importance to quality controlling from the very beginning to the very end: 1). All raw material we used are environmental-friendly; 2). Skilful workers care every details in handling the producing and packing processes; 3). Quality Control Department specially responsible for quality checking in each process.
