Single / Double PE Coated Disposable Cup Thermoforming Machine 100 PCS/MIN

Good quality Paper Tea Cup Making Machine for sales
Good quality Paper Tea Cup Making Machine for sales
I love their machinery, pretty good quality. Their service is Amazing ,Big kiss To jenny~~

—— Mr. Hang Seng

I deal only with Shunda. Other haven't goid quality,i check other machine. First time using, U will have problem.

—— Rafik

I'm Online Chat Now

Single / Double PE Coated Disposable Cup Thermoforming Machine 100 PCS/MIN

China Single / Double PE Coated Disposable Cup Thermoforming Machine 100 PCS/MIN supplier
Single / Double PE Coated Disposable Cup Thermoforming Machine 100 PCS/MIN supplier Single / Double PE Coated Disposable Cup Thermoforming Machine 100 PCS/MIN supplier Single / Double PE Coated Disposable Cup Thermoforming Machine 100 PCS/MIN supplier

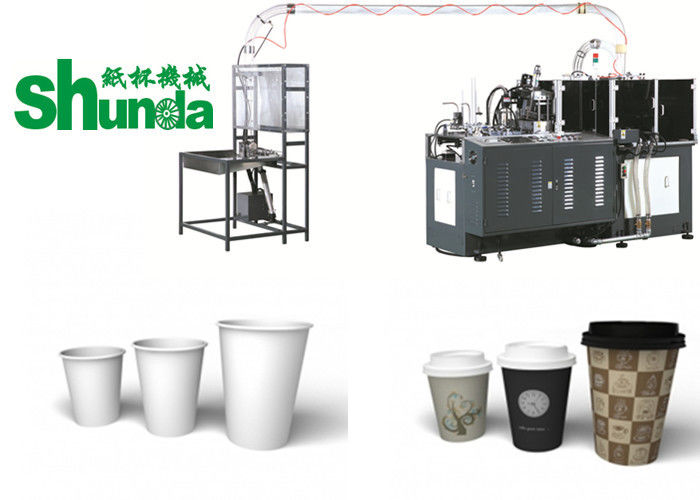

Large Image :  Single / Double PE Coated Disposable Cup Thermoforming Machine 100 PCS/MIN

Product Details:

Place of Origin: Haining City,Zhejiang Province, China
Brand Name: SHUNDA
Certification: FDA,SGS.ISO:9000
Model Number: SMD-90A

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: negotiation
Packaging Details: Export wood case
Delivery Time: 30 working days after received your payment
Payment Terms: T/T or L/C
Supply Ability: 50 SETS per month
Contact Now
Detailed Product Description
Product Name: Paper Tea Cup Making Machine Color: Green, Gray,any Color As Client Request
CUP SIZE: 2-16oz Speed: 100 Pcs/min
Material: Single/Double PE Coated Paper CONFIGURATION: ULTRASONIC&HOT AIR
Electricity Brand: Siemens Motor OUTPUT: 380V/220V,60HZ

Single / Double PE Coated Disposable Cup Thermoforming Machine 100 PCS/MIN​

Specifications:



MODEL SMD-90
Speed 100-120PCS/MIN
Cup size Range <16oz
Material Single and Double PE coated paper
Paper request Gram 190-350GSM(single and double PE coated paper)
Heating system Hot air system (from Switzerland)
Output 380V/220V 12 KW,50HZ, Three Phase four wire
Air compressor 0.5 M³/Min
Net weight 3.4 TONS
Machinery Size 2500 ×1600 ×1600 MM
Counter table Size 900 ×900 ×1760 MM





Details: paper cup machine



Double Open cylindrical cam:

Our factory is the first one using two cam systems, this design more costly, but can let the top curling and bottom knurling more accuracy, stable and low noise. Cam adpots high strength Japan-SKD11 with quenching treatment,resistant to wear. Before set up on the machine, our factory will test running one week, to ensure each bearing at the suitable station.

Single / Double PE Coated Disposable Cup Thermoforming Machine 100 PCS/MIN





x

Inspection system(Option):

Unique design. Our factory set up on final turn station,more stable than set up on flying tube. Do not need to buy extra inspection machine, less factory space needed. Inspection accuracy can be set up by self.

Single / Double PE Coated Disposable Cup Thermoforming Machine 100 PCS/MIN



PLC control system: controlled by simple and efficient PLC system.

Single / Double PE Coated Disposable Cup Thermoforming Machine 100 PCS/MIN

Oil lubracation recycling system :

Adoptes forced lubrication system to ensure main driving oil supply regularly and reduce friction and prolong the machine life. The oil circuit adds a clear the oil and filtering system to clean the oil automaticly. Our factory is the first one to using double layer plate to avoid the scraps of paper into the machine's inside.

Single / Double PE Coated Disposable Cup Thermoforming Machine 100 PCS/MIN



.....

Advantages:

1. It has 2 sets of original imported hot air system Leister guarantee the stability of heating.
2. Ultrasonic seal the paper cup body,can produce both single and double PE coated paper.
3. Panasonic photoelectricity checking the every part and report.
4. Open cylindrical can divide locating,heigh precision.
5. Automatically Oil lubrication system .
6. Servo motor control the gap of the bottom-paper within 0.1mm.

7. Gear and open cylindrical promote the stability and speed.



Finished paper cups:
