Small Disposable Paper Cup Making Machine/cups for coffee and tea cups

Basic Information
Place of Origin: China
Brand Name: Shunda
Certification: CE,ISO9001
Model Number: SMD-90
Minimum Order Quantity: 1 SET
Price: negotiation
Packaging Details: Export wood case,20ft can load 2 sets of machine
Delivery Time: 30 working days after received your payment
Payment Terms: T/T or L/C
Supply Ability: 20 SETS per month
Detail Information
Product Name: Paper Tea Cup Making Machine Speed: 100-160 Pcs/min
Output: 380/220 V,3 Phase 4 Lines Size: 2-46oz
Eletricity Board: Seperately Material: 135-450gsm
High Light:

paper tea cup manufacturing machine

,

paper cups making machine


Product Description



Intelligent Small Disposable Paper Cup Making Machine With Electricity Heating System

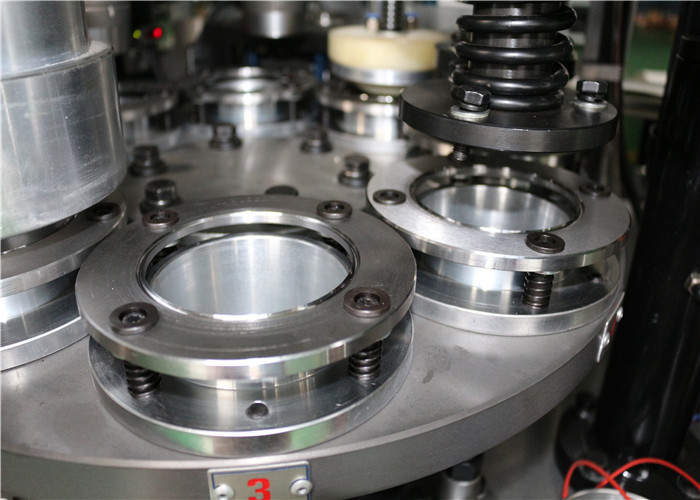

Small Disposable Paper Cup Making Machine/cups for coffee and tea cups 0



Description



SMD-90 paper cup making machine is an improved and upgraded machine of the low speed types. In order to realize optimal functions and performance, it utilizes open cam design, interrupted division, gear drive and longigudinal axis structure.

It could produce 3-46 oz cold and hot drink paper cup, such as coffee cup ,tea cup , water cups etc .especially it is popular for making small coffee cup 3oz for Algeria market.

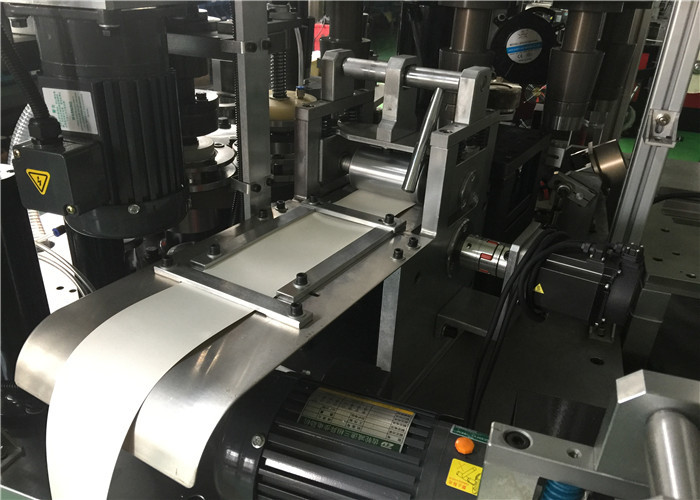

Small Disposable Paper Cup Making Machine/cups for coffee and tea cups 1



Specifications:



Model SMD-90
Capacity pcs/min 100-120 90-110 80-100
Size Range mm(max) Top diameter:90
Bottom Diameter:80
Height:140
Top diameter:110
Bottom Diameter:80
Height:170
Top diameter:125
Bottom Diameter:100
Height:170
Suitable Paper Thickness gsm 135-450
Sealing Method   Ultrasonic and hot air system
Running Power KW 10 11 12
Air compressor   0.4m²/Min. 0.5MPa 0.5m²/Min. 0.5MPa 0.6m²/Min. 0.5MPa
Net weight Kgs 3400 3500 3600
Machine dimension mm 2500*1800*1700 2600*1800*1800 2700*1800*1800
Collector Dimension mm 900*900*1760 1000*900*1860 1100*900*1860





Product advantage :


1. Danfos Transducer


2.125’ diving box,much more longer life



3.Our material of mould is steel anti-rust treatment.


4. Electricity box and machine are separate.



5.Shunda’s Base board is nearly double than others,guarantee the machinery working stable ,longer using.



6.Machine size is small,can operate more easy





detail

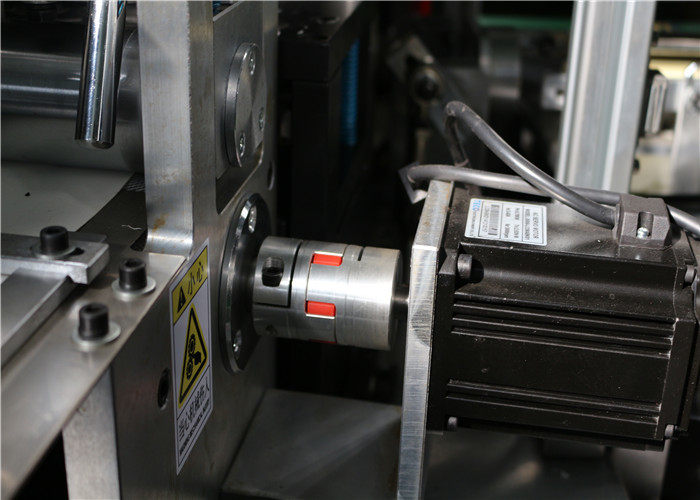

Small Disposable Paper Cup Making Machine/cups for coffee and tea cups 2







Cup Size

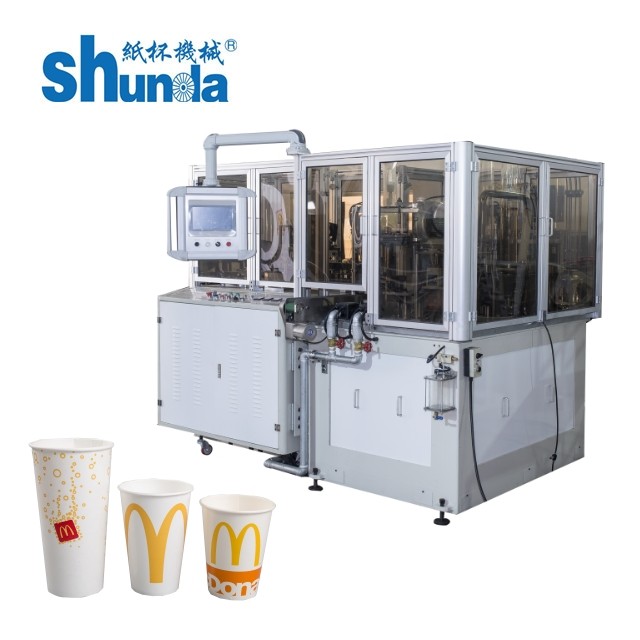

Small Disposable Paper Cup Making Machine/cups for coffee and tea cups 3





Our QC team



A QC team with more than 10 professional and technical personnel. To ensure 100% products checking.
Material: Strictly control of material using, meet international requested standards.
Semi-finished products inspection: Product inspection before 100% finished.
Production line test: With work team or data engineer who will inspect machines and lines at fixed period.
Finished Product Inspection: Quality and property test before products are packed and loaded.





Our Address

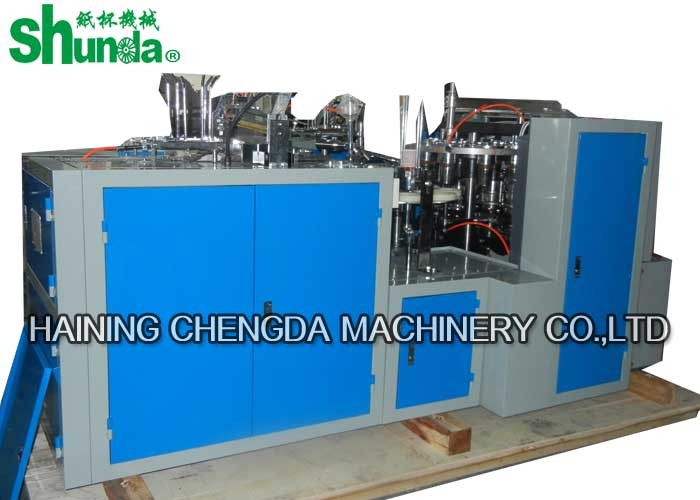

Small Disposable Paper Cup Making Machine/cups for coffee and tea cups 4





FAQ



1. Q: Is your company a factory or trading company?

A: Our company is a factory.

2. Q: Do you have Guiding Box or CD video for clients?

A: Yes,we  have,we will send guiding box with CD together to clients.

3. Q: what about your payment?

A: We accept T/T,L/C payment.
