High Efficiency Disposable Paper Coffee Cup Making Machine With Photoelectric Tracking

Basic Information
Place of Origin: China
Brand Name: Shunda
Certification: CE/SGS,ISO:9000
Model Number: SMD-90
Minimum Order Quantity: 1 SET
Price: negotiation
Packaging Details: Export wood case,20ft can load 2 sets of machine
Delivery Time: 25 working days after received your payment
Payment Terms: T/T or L/C, Western Union, MoneyGram
Supply Ability: 20 SETS per month
Detail Information
Product Name: Paper Tea Cup Making Machine Speed: 100-120 Pcs/min
Output: 380/220V 60HZ MATERIAL: Single PE Coated Paper
High Light:

high speed paper cup machine

,

disposable cup making machine


Product Description

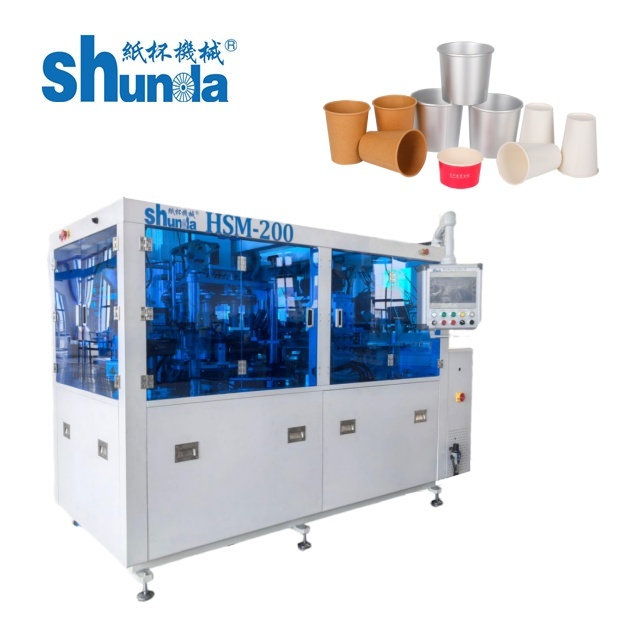

High Efficiency Disposable Paper Coffee Cup Making Machine With Photoelectric Tracking



Description:



SMD-90 INCLUDS DELIVER PAPER (PRINTED AND CUTED PAPER FAN), SEAL(HEATING), OIL INDECTION, BOTTOM CUT, HEAT,BOTTOM SEALING, HEMMING AND CUP DISCHARGE ,ALSO , IT HAS PHOTOELECTRIC CONTROL, SHORT CIRCLE PROTECTION,AND AUTOMATICALLY COUNTING.

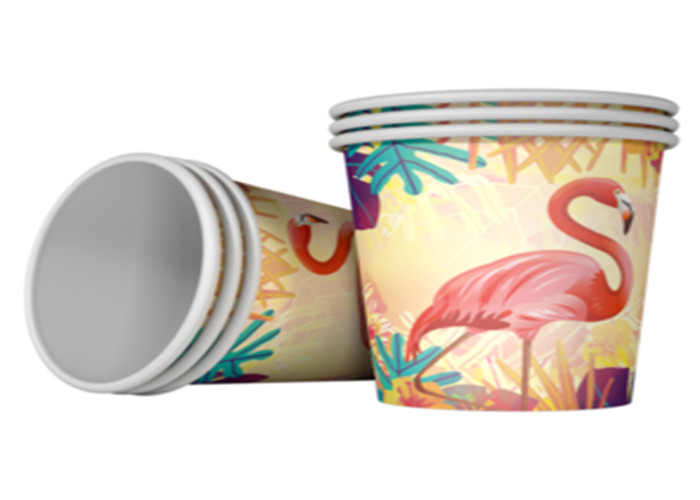

IT PRDODUCE COLD AND HOT DRINNK CUP , TEA PAPER CUP, COFFEE PAPER CUP,ICE CREAM. PAPER CUP. ONE PERSON EASY OPERATION, STABLE PERFORMANCE, LESS PLACE, HIGH

EFFICIENCY .





Specifications:



Model SMD-90
Speed 100-120 pcs/min
Cup size Top Diameter: 60mm(min)-125mm(max)
Bottom Diameter: 45mm(min)-100mm(max)
Height: 60mm(min)-170mm(max)
Raw material 135-450 GRAM
Configuration ULTRASONIC & HOT AIR SYSTEM
Output 12KW,380V/220V,60HZ/50HZ
Air compressor 0.4 M³/Min 0.5MPA
Net weight 3.4 TONS
Dimension of machine 2500×1800 ×1700 MM
Dimension of cup collector 900 ×900 ×1760 MM





Product advantage :
1. Danfoss Transducer
2. 125’ diving box
3. Photoelectric tracking
4. Electricity box and machine are separate.

5.copper bearing

6.quenching treatment,much more hard.

7.steel anit-rust treatment mold.





Our QC team:



A QC team with more than 10 professional and technical personnel. To ensure 100% products checking.
Material: Strictly control of material using, meet international requested standards.
Semi-finished products inspection: Product inspection before 100% finished.
Production line test: With work team or data engineer who will inspect machines and lines at fixed period.
Finished Product Inspection: Quality and property test before products are packed and loaded.





Our company:

Haining Chengda estabilished in 1998,has been 20 years.Our technologist  is very experienced,the quaity,after-sale,assemble,workmanship are all top class.We have large market in North America,West Europe,North Africa,South Asia,,,In Algeria we have almost 80% market,ATP,MTP,GSTP,ITP all our client,In MTP there are more than 60 machine.You can be at ease about our quality.





High Efficiency Disposable Paper Coffee Cup Making Machine With Photoelectric Tracking 0







Maintaince Notice:


1. Don't be in an environment of corrosive gas or smoke
2. Don't in the product may be splashed water, oil or use chemicals.
3. Please with stable voltage source power supply
4. make sure the power cord in good condition, so as not to cause fire or shock damage.
5. Instrument after electrify please don't touch input and output terminals, lest cause electric shock or instrument malfunction.
6. if you open the instrument shell, there may be a shock hazard.Because of power, has its internal capacitance charging, can keep certain voltage.





After-sale Service:


1.warranty: 3 year

2.the guide booklet will be sent with machine to guide the installation process works,adjust
the whole machine,production,avoide or solve the problem which the buyer will face.

3.we will adjust the machine well for one week before the delivery,ensure the machine has
the perfect performance.

4.we can dispatch technologists to buyer's factory,guiding installation,ajustment for a
period,the buyer incharge of the salary,traffic fee,boarding and lodging,communication and each day 100usd living allowances.

5.we supply the free training of buyer,the training won't stop until the buyer control the whole lesson!

6.we supply the consumable spare parts for frees for three year use.
