Speed 50-60 Pcs / Min Paper Lid Forming Machine Lid Size Diameter 60mm -125mm

Good quality Paper Tea Cup Making Machine for sales
Good quality Paper Tea Cup Making Machine for sales
I love their machinery, pretty good quality. Their service is Amazing ,Big kiss To jenny~~

—— Mr. Hang Seng

I deal only with Shunda. Other haven't goid quality,i check other machine. First time using, U will have problem.

—— Rafik

I'm Online Chat Now

Speed 50-60 Pcs / Min Paper Lid Forming Machine Lid Size Diameter 60mm -125mm

China Speed 50-60 Pcs / Min Paper Lid Forming Machine Lid Size Diameter 60mm -125mm supplier
Speed 50-60 Pcs / Min Paper Lid Forming Machine Lid Size Diameter 60mm -125mm supplier Speed 50-60 Pcs / Min Paper Lid Forming Machine Lid Size Diameter 60mm -125mm supplier Speed 50-60 Pcs / Min Paper Lid Forming Machine Lid Size Diameter 60mm -125mm supplier Speed 50-60 Pcs / Min Paper Lid Forming Machine Lid Size Diameter 60mm -125mm supplier Speed 50-60 Pcs / Min Paper Lid Forming Machine Lid Size Diameter 60mm -125mm supplier

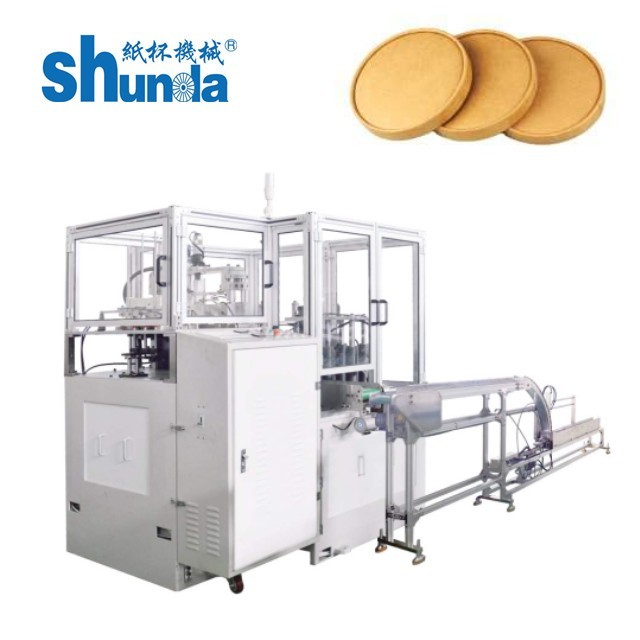

Large Image :  Speed 50-60 Pcs / Min Paper Lid Forming Machine Lid Size Diameter 60mm -125mm

Product Details:

Place of Origin: China
Brand Name: Shunda
Certification: CE
Model Number: PLM-60

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: 50000-60000usd
Packaging Details: Wooden packaging
Delivery Time: 5-8 week
Payment Terms: L/C, T/T
Contact Now
Detailed Product Description
Raw Material: 135-450GSM Paper LId Size: Diameter(A): 60mm-125mm
Power Source: 220V/380V 50/60Hz Colour: Green

Features:

Panasonic Photoelectricity sensor to track every step.

Auto alarm when paper fan go short

Auto stop when multi paper fans devlier

Auto paper fan track and deliver

.....

Problems show in PLC display screen.


Product Description
Speed 50-60 Pcs / Min Paper Lid Forming Machine Lid Size Diameter 60mm -125mm
paper lid
Technical Parameters
Model
PLM-60
Speed
50-60 pcs/min
Lid size
Diameter: 60mm-125mm
Height: 12-25mm
Raw material
135-450 GRAM
Configuration
ULTRASONIC & HOT AIR SYSTEM
Output
5.5KW,380V/220V,60HZ/50HZ
Air compressor
1.2M³/Min 0.4MPA
Net weight
2.0 Ton
Dimension of machine
1700×1300 ×1500 MM

Main Features:

1. hot air system guarantee the stability of heating.


2. Ultrasonic seal the paper lid body, suitable for both single and double PE coated paper.

3. Open cylindrical cam divide locating, high precision.

5. Automatically Oil lubrication system inside, oil can be recycled used.

6. Gear drive, long life for machinery.

7. Photoelectricity to track every step.

Detaile Images
paper cup machine2paper lid making machine03

Lid Body Sealing

Name: Ultrasonic

Brand: EVERGREEN/Rongzhen

Original: Taiwan/CN

Features:

Ultrasonic sealing for lid body, both okay for single or double pe coated paper.

Cup Bottom Pre-heating

Name: Hot Air Heating Device
Brand: Leister/Banko
Original: Switzerland/CN
Features:
hot air heating make bottom sealing best, no leakage.

QQ20160115151828gear drives



Gear Drive System


Features:

1. Make running more stable

2. High Precision

Oil Lubrication System

Features:
1. automatic spray engine oil to gears, chains
2. less human maintaince
3. oil can be recyced used
4. clean and change oil half a year



PLC control Panel

Simple and efficient control panel, mady by MITSUBISHI

make work more intelligent.

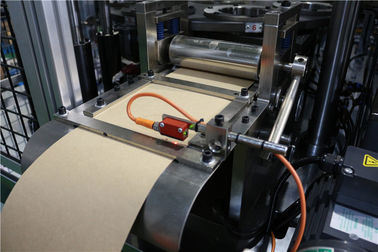

Photoelectric


Our Service

----Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

----After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

FAQ

1. Is your company a factory or trading company?

---Our company is a factory, also have export license.

2. Where is your factory located? How can I visit there?
---Our factory is located in haining City, Zhejiang Province, China, about 1.5 hours by car from Shanghai .All our clients, from home or abroad, are warmly welcome to visit our company !

3. How does your factory do regarding quality control?
---Quality is priority. Shunda people always attach great importance to quality controlling from the very beginning to the very end:
1).All raw material we used are environmental-friendly;
2).Skilful workers care every details in handling the producing and packing processes;
3).Quality Control Department specially responsible for quality checking in each process.

4. Will you teach how to use the machine?
---Yes, engineers available to service machinery overseas or learn in our factory.

5. How about the shipment?
---Normally 30-40 days after confirming order, detail delivery date should be decided according to production season and order quantity.

6. Which payment term do you accept? ---T/T, L/C

7. Do you have warranty?
---1 year for electronic parts from shipment date; two years for mechanical parts from shipment date.

8.Do you have OEM/OEM service?
---Yes, OEM/ODM service are available here. We can make some changes on machine according to your requirements.
