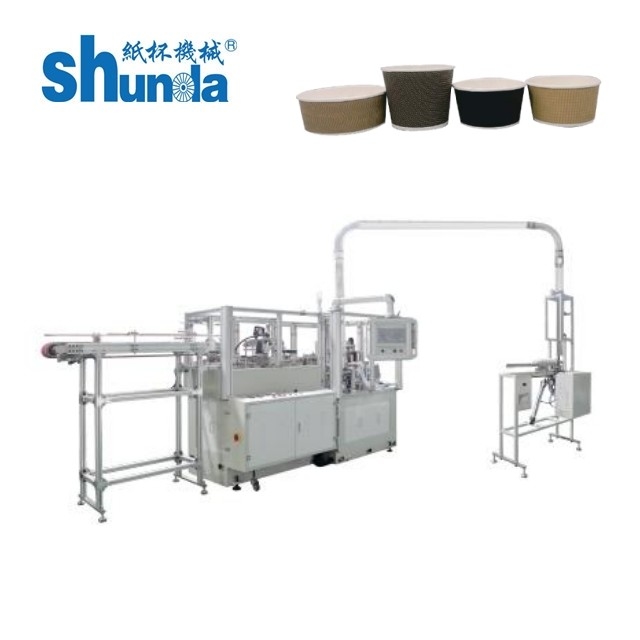

Ripple Wal Paper Cup Machine , 80-100Pcs / Min Paper Cup Manufacturing Machine Automatic

Ripple Wal Paper Cup Machine , 80-100Pcs / Min Paper Cup Manufacturing Machine Automatic
Ripple Wal Paper Cup Machine , 80-100Pcs / Min Paper Cup Manufacturing Machine Automatic Ripple Wal Paper Cup Machine , 80-100Pcs / Min Paper Cup Manufacturing Machine Automatic Ripple Wal Paper Cup Machine , 80-100Pcs / Min Paper Cup Manufacturing Machine Automatic Ripple Wal Paper Cup Machine , 80-100Pcs / Min Paper Cup Manufacturing Machine Automatic Ripple Wal Paper Cup Machine , 80-100Pcs / Min Paper Cup Manufacturing Machine Automatic Ripple Wal Paper Cup Machine , 80-100Pcs / Min Paper Cup Manufacturing Machine Automatic

Large Image :  Ripple Wal Paper Cup Machine , 80-100Pcs / Min Paper Cup Manufacturing Machine Automatic Get Best Price

Product Details:

Place of Origin: China
Brand Name: Shunda
Certification: CE ISO9001
Model Number: SMD-80A

Payment & Shipping Terms:

Minimum Order Quantity: 1 set double wall paper cup machine
Price: negotiable
Packaging Details: Standard seaworthy package,with pp film,wooden plate and case
Delivery Time: 35-45 working days after confirmed cup size and received deposit
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10 SETS per month
Detailed Product Description
Product Name: Double Wall Paper Cup Machine Speed: 80-100pcs/min
Color: As Per Requirement Material: 135-450 GRAM
CONFIGURATION: ULTRASONIC OUTPUT: 10KW,380V/220V,60HZ/50HZ
AIR COMPRESSOR: 0.4 M³/Min 0.5MPA Eletricity Brand: Evergreen
Dimension Of Machine: 2500×1800 ×1700 MM Dimension Of Cup Collector: 900 ×900 ×1760 MM
High Light:

high speed paper cup machine

,

paper cup manufacturing machine

Ripple Wal Paper Cup Machine, 80pcs/min automatic paper cup sleeve machine


Specification:


MODEL

Ripple Wall Paper Cup machine SMD-80A

SPEED

                    80-100PCS/MIN

CUP SIZE

                    6-22OZ

MATERIAL

                    135-450GRAM

CONFIGURATION

                    ULTRASONIC

OUTPUT

                    10KW,380V/220V,60HZ/50HZ

AIR COMPRESSOR

                    0.4 M³/Min 0.5MPA

NET WEIGHT

                    3 TONS

MACHINE SIZE

                    2500  ×1800 ×1700 MM

COUNTER SIZE

                    900 ×900 ×1760 MM



Description:

Paper Cup Sleeve machine  is great thermal insulation container.
Our company developed fast speed double wall paper Cup machine, using Gear working, it has better promotion for noise,speed,stability .



Whole Process:

Double wall paper deliver →Double wall Cup forming →Paint Oil on paper bottom→Cup outside
Bottom curl→Outside Cup paint glue inside→Inside Cup drop→Cup tight part→compact the
finished cup


Application:

Produce for Coffee Cup.Paper Cup sleeve.

Ripple Wal Paper Cup Machine, 80pcs/min automatic paper cup sleeve machine



Machine Detail:

Rubber tube: set up after the side sealing, when the cups finished cup side sealing, can fix the cup posiion. And the fans are foldable, when you change the paper fan thickness and adjustment, it is easy to take the cups out.


Ripple Wal Paper Cup Machine , 80-100Pcs / Min Paper Cup Manufacturing Machine Automatic 1

Air controller: our factory also the one have air controller,can delivery to finished cup to countersmoothly.
 Ripple Wal Paper Cup Machine , 80-100Pcs / Min Paper Cup Manufacturing Machine Automatic 2

Introduce:

Paper Cup Sleeve Machine each action for paper cup making independent function.The so-called debugging is realizing the function of reservation components in a reasonable, therefore all sales to
Customer equipment, our company has finished  debugging already. if there is any place in running the project change, need to be completely familiar with and master the medium-speed charter flights outside the performance, structure, principle, and commissioning.If special circumstances, should contact with the company.



FAQ:

1. Q: If This Machine can Connect with the Fast paper Cup machine?
A: Yes.and they can work together, only one worker can finish the Double wall Cup job.

2. Q:Where is your factory located? How can I visit there?
A: Our factory is located in haining City, Zhejiang Province, China, about 1.5 hours by car from Shanghai .All our clients, from home or abroad, are warmly welcome to visit our company !

3. Q:How does your factory do regarding quality control?
A: Quality is priority. Shunda people always attach great importance to quality controlling from the very beginning to the very end: 1). All raw material we used are environmental-friendly; 2). Skilful workers care every details in handling the producing and packing processes; 3). Quality Control Department specially responsible for quality checking in each process.

Ripple Wal Paper Cup Machine , 80-100Pcs / Min Paper Cup Manufacturing Machine Automatic 3
