Paper Tissue Holder Box Manufacturing Machine , Max Cup Height 220mm

China Paper Tissue Holder Box Manufacturing Machine , Max Cup Height 220mm supplier
Paper Tissue Holder Box Manufacturing Machine , Max Cup Height 220mm supplier Paper Tissue Holder Box Manufacturing Machine , Max Cup Height 220mm supplier Paper Tissue Holder Box Manufacturing Machine , Max Cup Height 220mm supplier Paper Tissue Holder Box Manufacturing Machine , Max Cup Height 220mm supplier Paper Tissue Holder Box Manufacturing Machine , Max Cup Height 220mm supplier Paper Tissue Holder Box Manufacturing Machine , Max Cup Height 220mm supplier

Large Image :  Paper Tissue Holder Box Manufacturing Machine , Max Cup Height 220mm

Product Details:

Place of Origin: China
Brand Name: Shunda
Certification: CE
Model Number: STD-80

Payment & Shipping Terms:

Minimum Order Quantity: 1 set paper tube machine
Price: Negotiable
Packaging Details: Seaworthy and suitable for bumpy roads. Strong wooden box and firm plate
Delivery Time: within 30 working days
Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability: 10 sets per Month
Contact Now
Detailed Product Description
Max Cup Diameter: 90mm Max Cup Height: 220mm
Speed: 70-80pcs/min Raw Material: 135-450gsm
Configuration: ULTRASONIC & HOT AIR SYSTEM Output: 12KW,380V/220V,60HZ/50HZ
Air Compressor: 0.4 M³/Min 0.5MPA Net Weight: 3.4 TONS
Machine Dimension: 2500 ×1800 ×1700 MM Dimension Of Cup Collector: 900 ×900 ×1760 MM

Paper Tissue Holder Box Manufacturing Machine , Max Cup Height 220mm



Product Description

MODEL STD-80
Speed 70-80 PCS/MIN
Cup size Range Max Dia:90mm, Max Height:220mm
Paper request Gram 135-450GSM
Heating system Hot air system (from Switzerland)
Output 380V/220V 12 KW,50/60HZ, Three Phase four wire
Air compressor 0.4 M³/Min
Net weight 3.4 TONS
Machinery Size 2500 ×1800 ×1700 MM





Advantage:
1.It has 2 sets of original imported hot air system Leister guarantee the stability of heating.
2.Ultrasonic seal the paper cup body,can produce both single and double PE coated paper.
3.Panasonic photoelectricity checking the every part and report.
4.Open cylindrical can divide locating,heigh precision.
5.Automatically Oil lubrication system .
6.Servo motor control the gap of the bottom-paper within 0.1mm.

7.Gear and open cylindrical promote the stability and speed.

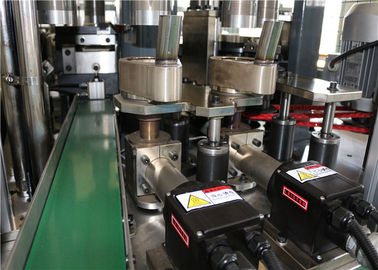

Detail pictures:

High Speed Automatic Paper Cup Machine , Paper Cup Forming Machine





Finished Products:

Paper Tissue Holder Box Manufacturing Machine For Car Use





About us:
Haining Chengda Machinery Co.,LTd always abides by the business strategy of "high-quality products & reasonable price", the service concept of "showing respect to you & trying my best", and the professional spirit of ’’honesty, innovation, enthusiasm, sureness" to provide customers the best products and services. Make paper cup machine since 1998, ship to more than 100 countries.


--Middle speed paper bowl machine SMD-80B 70-80cups/min

--Middle speed double wall paper cup machine SMD-80A 80-100cups/min

--High speed paper cup machine SMD-90 100-120cups/min



With decade years of technology accumulation,advanced manufacturing skills and thoughtful after-sale services, Chengda(Shunda) Paper Cup Machinery CO., Ltd has self-supported import and export right and goes though CCC and CNAS certificates,also get CE and ISO9001 certified.



Trade Show:
In Algeria,the most popular cup size 7oz and 3 oz are designed by us.There we have almost 80% market.Large paper cup company ATP,MTP,GSTP,ITP... all are our clients.Our ZBJ-9A is very famous in Algeria.We also have client in USA, Mexico, Brazil, Finland, libya, Iraq, Australia etc.

Paper Tissue Holder Box Manufacturing Machine For Car Use




FAQ:
1. Q: Is your company a factory or trading company?
    A: Our company is a factory.


2. Q:Where is your factory located? How can I visit there?
    A:Our factory is located in haining City, Zhejiang Province, China, about 1.5 hours by car from Shanghai. All our clients, from home or abroad, are warmly welcome to visit our company !


3. Q: How does your factory do regarding quality control?
    A: Quality is priority. Shunda people always attach great importance to quality controlling from the very beginning to the very end:

1).All raw material we used are environmental-friendly;

2).Skilful workers care every details in handling the producing and packing processes;

3).Quality Control Department specially responsible for quality checking in each process.



4.we can dispatch technologists to buyer's factory,guiding installation,ajustment for a
period,the buyer incharge of the salary,traffic fee,boarding and lodging,communication and each day 100usd living allowances.



5.we supply the free training of buyer,the training won't stop until the buyer control the whole leason!



6.we supply the consumable spare parts for frees for three year use.





Tag: paper cup making machinery,paper cups manufacturing machines
